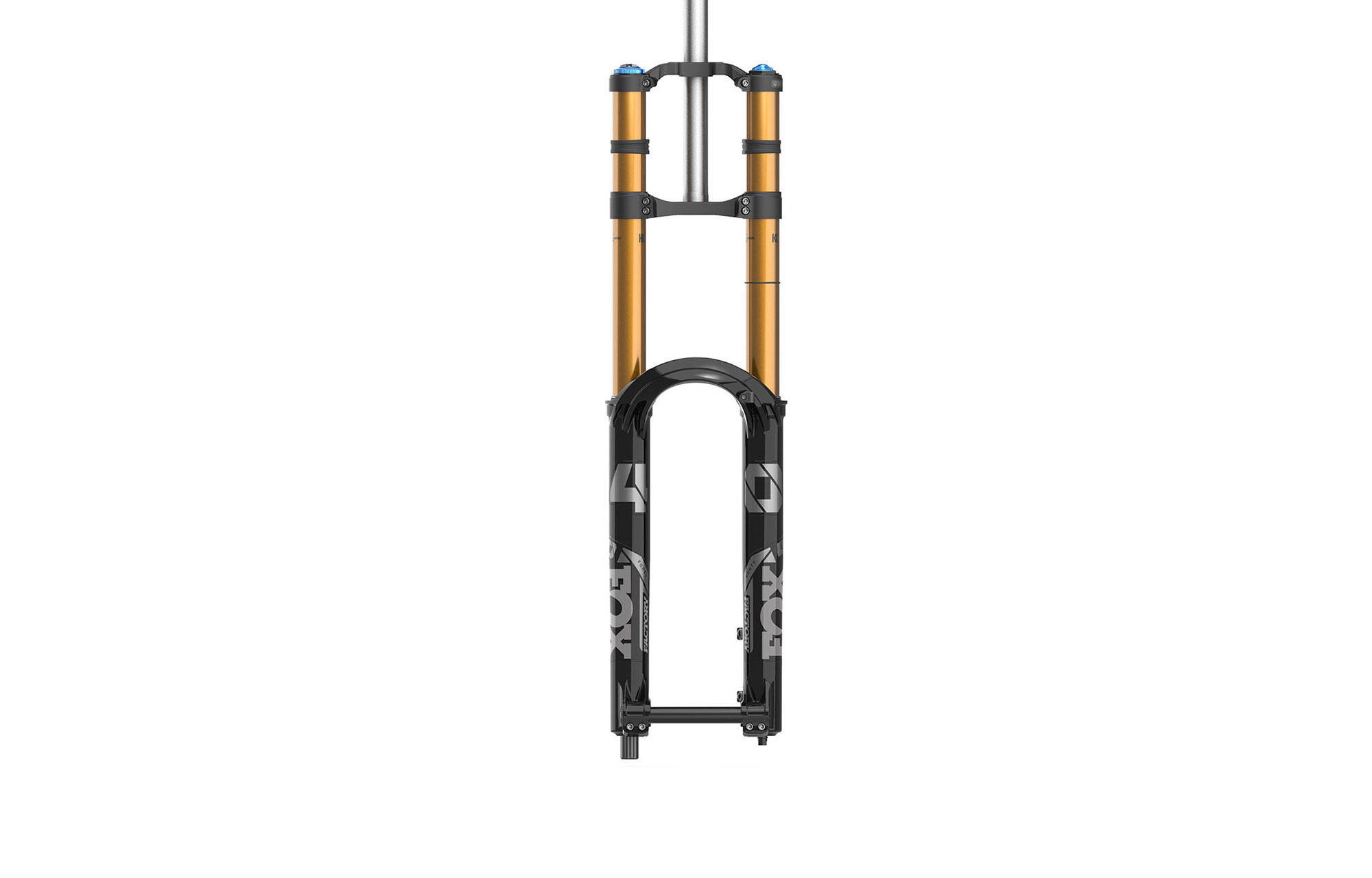

The FOX 40 Factory fork was designed to make the fastest riders even faster.
The technology involved has developed directly through DH racing and is a regular on World Cup podiums. It is continuously improved to stay at the top.
Resolutely race-oriented, this fork is equipped with the Grip 2 VVC cartridge which allows high and low speed compression and rebound external adjustments in an ultra-precise way and without the need for tools.
The new lower fork legs are equipped with depressurization valves and Bypass Channels allowing air and oil to circulate better to maintain sensitivity and the complete range of travel. Extensive engineering work has made it possible to fine-tune the amount of material used in the fork legs to save precious grams and optimise the weight/solidity ratio to the maximum.
The Floating Axle system allows an automatic chassis alignment to eliminate torsional stresses on the stanchions for perfect positioning, resulting in the absence of friction, which means more sensitivity throughout the entire travel.
For those who ride in all weathers, a rigid mudguard is available as an option.
Technical specifications:
• Wheel size: 29"
• Travel: 203 mm
• Stanchions: 40 mm // Kashima Coat
• Lower leg bleeders (depressurization valves)
• Spring: Air (Float Evol)
• Cartridge: Grip 2 VVC HSC/LSC
• High speed compression adjustment: 8 clicks
• Low-speed compression adjustment: 16 clicks
• High speed rebound adjustment: 8 clicks
• Low speed rebound adjustment: 16 clicks
• Straight steerer 1" 1/8
• Axle: 20 x 110 mm Floating Boost
• Offset: 56 mm
• Brake Mount: Post Mount 203 mm (Min) // 230 mm (Max)
• Colour: Shiny Black and neutral stickers
• Weight: 2.816 kg
Compatible models:
SUPREME DH V4.2
SUPREME DH V5
Delivered with cable guide and thru-axle, without steerer star nut and volume spacers.
