DEVELOPMENT NEVER STOPS
DEVELOPMENT NEVER STOPS
The SUPREME DH V5.2 continues its relentless pursuit of one goal: helping riders go faster on the race track.
Developed at the highest level of racing, it evolves with an optimised kinematic design, a redesigned rear triangle and enhanced integration.
Every detail has been refined to improve control, precision and speed.
Because development never stops.
DOWNHILL
DOWNHILL
200mm
200mm
220mm
220mm
29" / 27.5"
29" / 27.5"
Lifetime
Warranty
Lifetime
Warranty
Amaury. He is also someone behind all this work. The objective is clear, to be the best through every sector of every World Cup track. To achieve this, we have designed a bike with kinematics and geometry that can change according to the track.
Amaury. He is also someone behind all this work. The objective is clear, to be the best through every sector of every World Cup track. To achieve this, we have designed a bike with kinematics and geometry that can change according to the track.
Amaury. He is also someone behind all this work. The objective is clear, to be the best through every sector of every World Cup track. To achieve this, we have designed a bike with kinematics and geometry that can change according to the track.
Amaury. He is also someone behind all this work. The objective is clear, to be the best through every sector of every World Cup track. To achieve this, we have designed a bike with kinematics and geometry that can change according to the track.
Between 2000 and 2025, the COMMENCAL SUPREME DH has claimed 55 Elite World Cup victories across both men’s and women’s categories. Today, it stands as the most successful downhill bike in downhill history.
Every generation of the SUPREME DH has contributed to this legacy and helped us reach the performance level we know today.
ALWAYS REINVENTING
ALWAYS REINVENTING
With the ever-evolving nature of downhill racing and a wide variety of tracks, strategic choice of bike settings at the start of the season is no longer relevant. It takes versatility.
The level of World Cup racing continues to grow and requires intense work from the riders in terms of choosing racing lines and limiting time spent on settings.
The requirements of the SUPREME DH V5 are simple: to make a no compromises bike that excels and inspires confidence, no matter the track.
On the technical side, we use high virtual pivot point (HVCS) kinematics. This 6-bar system gives us maximum control over the behaviour of the suspension whatever the range of travel being used.
The balance, shock absorption, and dynamism of the bike are therefore working in harmony. The goal has been reached!
Arthur QUET - Race Program Technical Manager.
At COMMENCAL, downhill mountain bike racing is much more than a discipline. It is our laboratory, the perfect real life testing ground to push the limits of performance. The SUPREME DH V5.1, our previous model, was born from racing, studied, designed and developed to win World Cups. And that’s mission accomplished on numerous occasions.
Our main objective with the SUPREME DH V5.2 was to create a bike that is more dynamic and more precise, while retaining the legendary comfort and speed through rough terrain that defined the SUPREME DH V5.1. This evolution is designed to give our athletes the platform they need to find those crucial hundredths and tenths of a second that make the difference on race day.
Arthur QUET
Head of Racing Programs Engineering.
WHAT HAS EVOLVED?
WHAT HAS EVOLVED?
Amaury. He is also someone behind all this work. The objective is clear, to be the best through every sector of every World Cup track. To achieve this, we have designed a bike with kinematics and geometry that can change according to the track.
HVCS KINEMATICS
HVCS KINEMATICS
The High Virtual Contact System continues to evolve, particularly around the rear triangle. The pivot point located near the rear axle has now moved from the chainstays to the seatstays. A subtle change on paper, but one that delivers significant benefits on the trail: the bike gains responsiveness and acceleration on faster sections while providing greater comfort and control in rough terrain.
This is the essence of HVCS: bringing together seemingly incompatible sensations.
BRAKING PERFORMANCE
BRAKING PERFORMANCE
Braking performance has been a major focus of development. The brake caliper is now positioned between the chain stays and seat stays. Combined with the HVCS kinematics, this evolution delivers greater control by keeping the suspension active and limiting weight transfer to the front wheel.
The frame is compatible with rotor sizes from 200mm to 223mm to meet the demands of the most challenging tracks.
FRAME PROTECTION
FRAME PROTECTION
The SUPREME DH V5.2 features a new generation of chain stay and seat stay protectors called “Silent Mode”. The objective is simple: eliminate drivetrain noise as much as possible while reducing chain slap and impacts against the rear triangle that can affect suspension performance.
These protectors use a dual density rubber construction with a rigid base and large soft rubber fins for maximum vibration and impact damping.
INTERNAL CABLE ROUTING
INTERNAL CABLE ROUTING
Cable routing now runs through the head tube on the front triangle. Beyond the cleaner look, this solution allows the use of internal sleeves directly connected to the head tube inserts, making bike maintenance significantly easier, especially during races where every minute counts.
This also improves sealing against water, dust and mud.
COMPATIBILITY
COMPATIBILITY
With the adoption of the UDH standard, the SUPREME DH V5.2 is ready for the latest-generation drivetrains and compatible with the newest SRAM groupsets, including the XX DH T-Type.
The lower shock mount area has been redesigned to provide increased clearance and broader compatibility with most modern DH shocks including the new FOX Float X2.
SETTINGS & ADJUSTMENTS
SETTINGS & ADJUSTMENTS
The SUPREME DH V5.2 retains the adaptable geometry that made the V5 successful and offers multiple frame adjustment options.
SUSPENSION KINEMATICS
SUSPENSION KINEMATICS
A flip chip at the shock anchor allows adjustment of the suspension kinematics. It has four settings that can be adapted depending on how you ride or what you’re riding. More linear with forward anchoring, more progressive with rear anchoring.
STIFFNESS ADJUSTMENT
STIFFNESS ADJUSTMENT
The removable brace located between the seatstays allows rear frame stiffness to be adjusted according to rider preference and riding conditions.
HEAD ANGLE
HEAD ANGLE
The head tube retains the ZS56/ZS56 standard and remains compatible with angleset headsets, allowing head angle adjustments to suit specific needs.
GEOMETRY
GEOMETRY
Developed and validated through racing, the geometry of the SUPREME DH V5.2 is the result of several seasons of evolution of the V5 platform.
Each size has been designed to work in perfect harmony with the HVCS kinematics and deliver the same dynamic balance to every rider.
No extreme solutions, just proven proportions that prioritise speed, grip and stability on all terrain.
29/27.5 FORMAT
29/27.5 FORMAT
The 29/27.5 wheel configuration, also known as a mullet setup, has become the preferred choice of our riders thanks to its balance of high-speed stability and agility.
FLIP CHIP
FLIP CHIP
A flip chip located on the lower shock mount allows geometry adjustments to suit trail conditions.
It affects bottom bracket height, head angle, reach and chain stay length.
The high position favours agility on slower, flatter and more technical tracks.
The low position improves stability on faster and steeper tracks.
REACH
REACH
Five sizes with consistent reach increments are available allowing every rider to find their ideal position. The 56mm internal diameter head tube also allows the use of offset headsets to further fine tune rider positioning.
SIZE
XSLow / High
SLow / High
MLow / High
LLow / High
XLLow / High
1 - SEAT TUBE LENGTH
370
370
370
370
370
2 - SEAT TUBE ANGLE
76,4° / 76,8°
75,7° / 76,1°
75,7° / 76,1°
75,7° / 76,1°
75,7° / 76,1°
3 - HEAD TUBE ANGLE
63,9° / 64,3°
63,3° / 63,7°
63,3° / 63,7°
63,3° / 63,7°
63,3° / 63,7°
4 - HEAD TUBE LENGTH
112
112
112
112
112
5 - WHEELBASE
1196 / 1194
1246 / 1244
1283 / 1281
1311 / 1309
1331 / 1329
6 - TOP TUBE LENGTH
548 / 546
596 / 594
621 / 619
649 / 647
669 / 667
7 - CHAIN STAY LENGTH
442 / 440
442 / 440
454 / 452
454 / 452
454 / 452
8 - BOTTOM BRACKET HEIGHT
1,5 / -3,5
2,5 / -3
2,5 / -3
2,5 / -3
2,5 / -3
9 - FORK LENGTH
581
612
612
612
612
10 - FORK OFFSET
52
52
52
52
52
11 - REACH
401 / 405
431 / 435
456 / 460
484 / 488
504 / 508
12 - STACK
605 / 602,5
649 / 646
649 / 646
649 / 646
649 / 646
All lengths in millimeters.
EFBE TRI-TEST® CERTIFIED
EFBE TRI-TEST® CERTIFIED
The reliability of our products has always been a priority. In addition to our own tests, we decided to put the SUPREME DH V5.2 to the test at EFBE. An independent laboratory that offers tests above the ISO 4210 standard.
The SUPREME DH V5.2 frame is therefore EFBE 5 certified. Specific to gravity and e-bike practices, it is the highest possible classification for a mountain bike in terms of reliability and resistance.
CHOOSE YOUR SUPREME DH V5.2
CHOOSE YOUR SUPREME DH V5.2

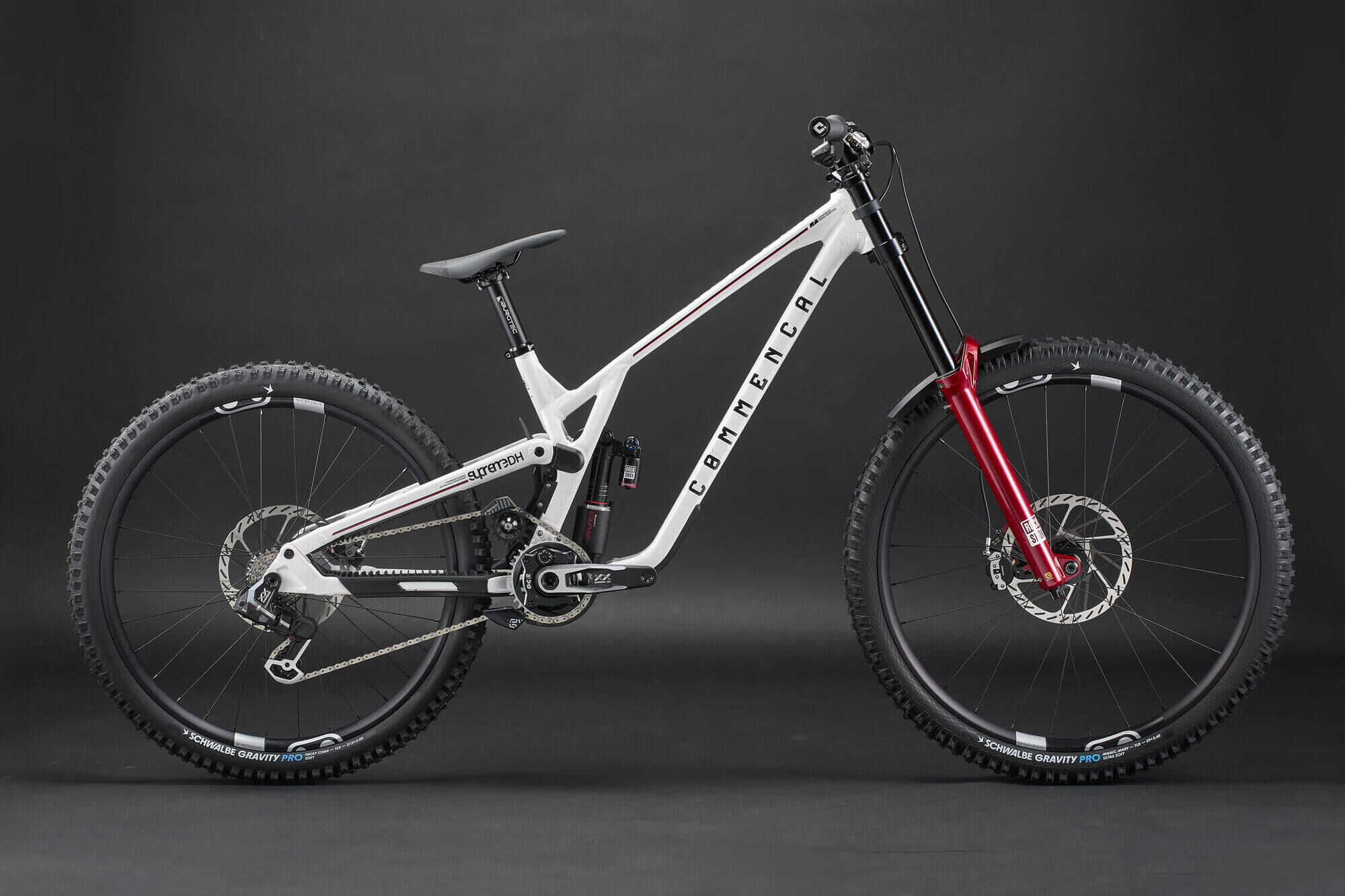

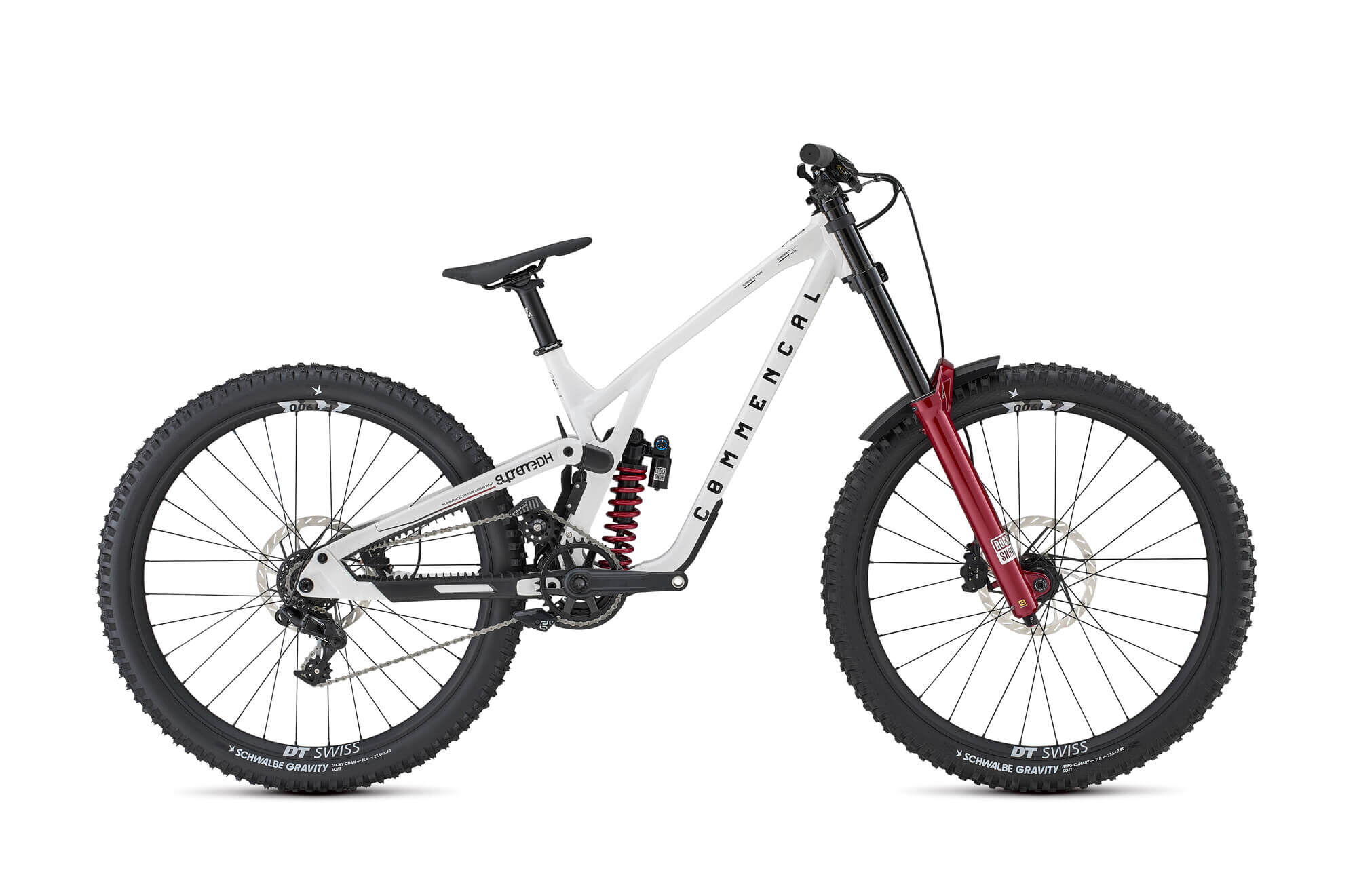

The SUPREME DH V5.2 is available in three complete builds, with FOX or ROCKSHOX suspension options, as well as an XS version dedicated to smaller riders.
Each build has been developed in collaboration with our suspension partners to deliver settings perfectly matched to the frame kinematics. As for the rest of the build: race-proven components. No excuses.
Buy my SUPREME DH V5
Buy my SUPREME DH V5
HOME DELIVERY
HOME DELIVERY
CLICK & COLLECT
CLICK & COLLECT
BUY IN A STORE
BUY IN A STORE
SHOWROOM PICK UP
SHOWROOM PICK UP
OUR COMMITMENTS
OUR COMMITMENTS
The SUPREME DH V5.2 comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser.
Our products benefit from warranties and return programs so you can buy with complete confidence. In case of any issue, all your purchases include free access to COMMENCAL CARE, whatever delivery option you choose.
To build the best frames, we use aluminium: a reliable material, infinitely recyclable, allowing us to reach outstanding levels of performance.
