COMMENCAL META TR V4 ALC BURGTEC METALLIC PURPLE

Price reduced from C$ 7,300.00 to C$ 5,900.00 -19%
id/sku : 22METATROHALC
Availability: Select the model for availability null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META TR V4

The META TR V4 is our vision of trail riding. It is designed to make you really want to ride. Most at home when pedalling, it is even more at home when you let go of the brakes downhill, where it turns into a real mini-enduro. Well balanced, it excels during technical fast descents thanks to the aggressive kinematic/geometry combo. Rider positioning when climbing is ideal for long adventures. Flow trails, enduro, bike park, climbing, descents: nothing stands in its way.

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

META TR V4 ALC BURGTEC METALLIC PURPLE

This A LA CARTE build is exceptional! The combination of the sublime META TR V4 in ‘Metallic Purple’, ÖHLINS suspension, and a BURGTEC cockpit delivers an uncompromising and devilishly efficient bike.

The RXF36 m.2 Air fork offers precision and excellent stability on slopes thanks to an air spring equipped with a specific Ramp Up chamber to adjust progressiveness at the end of the stroke, without forgetting its three-way setting TTX hydraulic cartridge.

The TTX1 Air shock ticks all the boxes. It offers excellent performance in terms of sensitivity, hold and hydraulics, with simple and precise adjustments.

SHIMANO take care of braking with the Deore XT model. Ice Tech Freeza four-piston calipers and 203mm discs have been a benchmark on the market for over 40 years.

We have chosen the best pieces from the English brand BURGTEC’s catalogue for this limited edition. To be precise: an Enduro Mk3 stem, Ride Wide Enduro handlebar, Bartender Pro GM grips plus The Cloud MK2 saddle with its titanium rails.

The SRAM GX Eagle 12-speed drivetrain features a wide 10-52t gear ratio. An example of reliability and precision which allows confident riding.

DT SWISS custom wheels are specifically designed for this bike. They feature one of the best enduro rims on the market, the EX 511, combined with reliable and solid 350 hubs.

To offer maximum grip and performance we combined a MAXXIS Assegai and a High Roller II with EXO+ casing.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    TRAIL 29"

  • Frame material

    AL-6066

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    TAPERED

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    Meta TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    OHLINS TTX1 Air
    210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping

  • Fork

    OHLINS RXF36 m.2 Air, 150 mm travel
    29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset

  • Headset

    CANE CREEK SERIES 40 ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

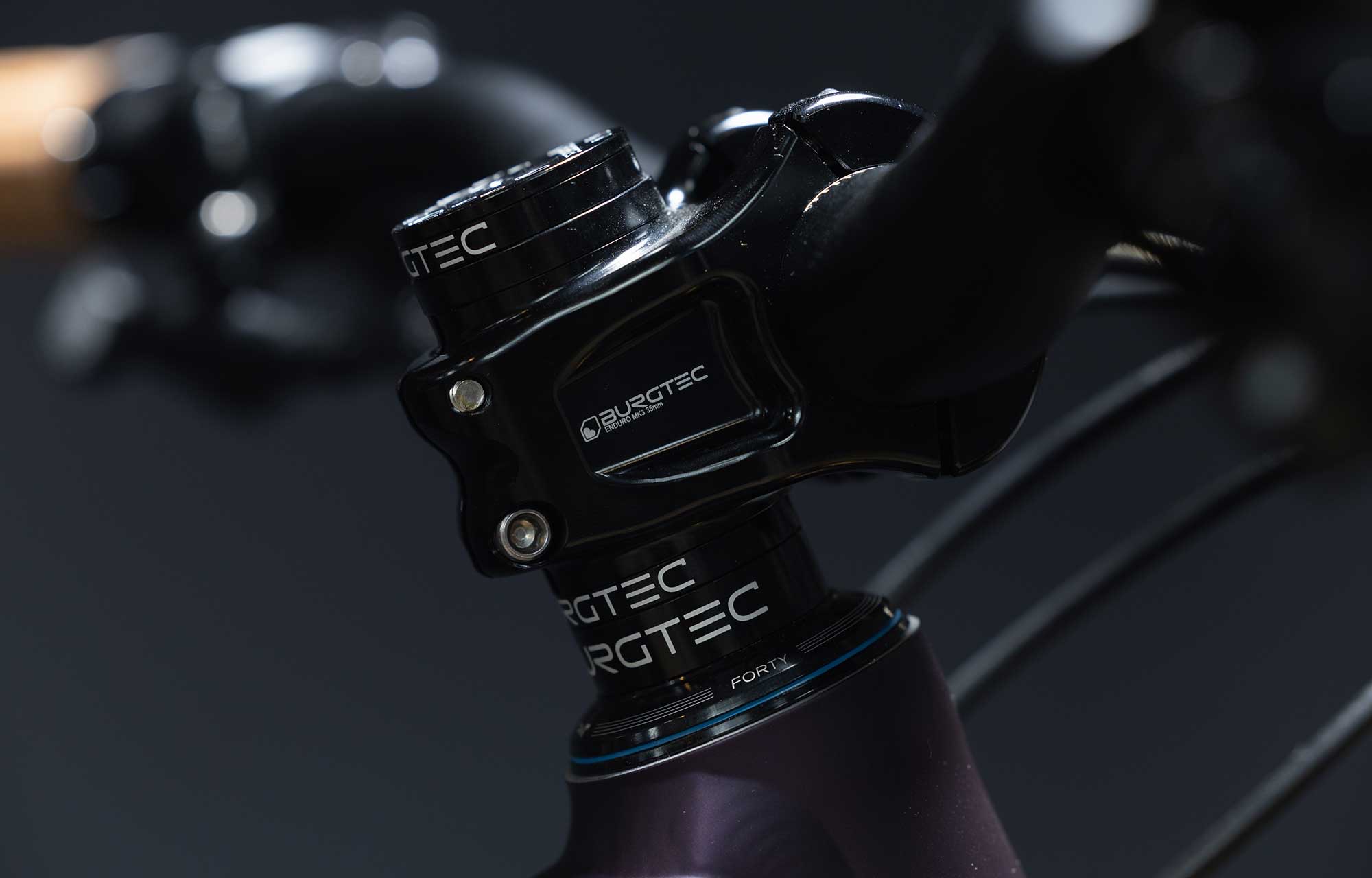

    BURGTEC Enduro MK3
    35 mm extension, 31.8 mm

  • Handlebar

    BURGTEC RideWide Enduro
    31.8 mm, 800 mm width, 30 mm rise, Alloy

  • Grips

    BURGTEC Bartender Pro GM
    Lock on, Ultra Tacky compound, black

  • Brakes

    SHIMANO XT
    4 pistons, I-Spec EV compatible

  • Shifters

    SRAM GX  Eagle
    12s, Black

  • REAR DERAILLEUR

    SRAM X01 Eagle
    12s, Black

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM GX Eagle
    170 mm crank arms, Boost

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM GX Eagle
    12s, 10-52t

  • Rims

    DT SWISS EX511 29''
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Assegai - Front: MAXXIS Minion DHR II
    Rear:  29x2.5 WT / 3C / TR / EXO+ - Front:  29x 2.4 WT / 3C / TR / EXO+

  • Seat post

    KS Lev Integra
    31.6 mm, travel 150 mm, seatpost adaptor 31.6 mm to 34.9 mm

  • Saddle

    BURGTEC The Cloud MK2 Ti-Carbon
    Lux-Alloy Rails

  • Weight

    15 kg / 33.06 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Metallic Purple
    Matt Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector
