COMMENCAL SUPREME DH V5 ESSENTIAL AQUA BLUE
BUY IN-STORE
CHECK OUT THE SUPREME DH V5
Introducing the COMMENCAL SUPREME DH V5, a top-tier downhill racing machine designed for the serious rider. After three years of rigorous development with our R&D team and input from elite athletes, the SUPREME DH V5 has proven its prowess on the world stage, achieving an impressive record of 9 wins and 27 podium finishes across World Cup events, securing top positions in the Elite Women, Men, and Team rankings.
The V5 showcases cutting-edge technology with its innovative High Virtual Contact System kinematics, expertly engineered to enhance both agility and shock absorption. With customizable inserts in the aluminum frame, riders can effortlessly adapt the bike’s geometry and performance to meet varying trail conditions, making it perfect for Canada's diverse landscapes.
SUPREME DH V5 SETTINGS GUIDE
COMMENCAL SUPREME DH V5 ESSENTIAL AQUA BLUE
The SUPREME DH V5 ESSENTIAL lives up to its name—essential for any serious downhill enthusiast. Equipped with the FOX 40 Performance fork, riders enjoy an adjustable air spring alongside a GRIP hydraulic cartridge, allowing for on-the-fly adjustments of low-speed compression with a simple twist.
The FOX DHX2 Performance Elite shock offers exceptional 4-way adjustability and unparalleled sensitivity, ensuring consistent performance without overheating during those extended descents.

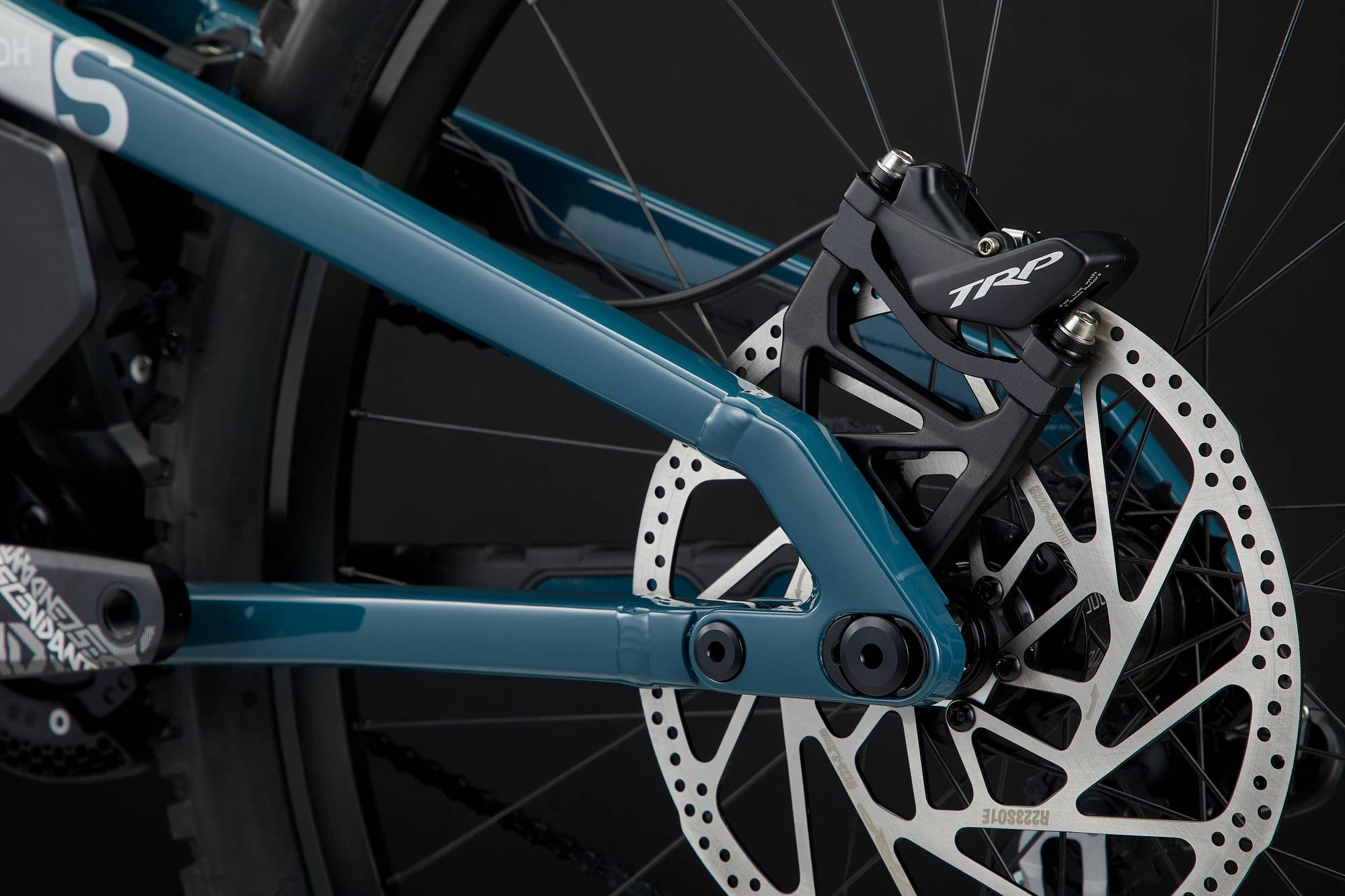

For braking power, the TRP DH-R Evo brakes feature a robust 4-piston design with 223mm discs, providing reliable, progressive, and precise stopping power that inspires confidence on even the steepest trails.
Durability is a hallmark of the E13 LG1 + DH wheels, recognized for their strength and reliability. The integrated freehub body enhances lateral stiffness by widening the spoke umbrella, complementing the SRAM GX DH derailleur for seamless shifting.
To maximize grip and stability, the bike comes fitted with a formidable combo of MAXXIS Assegai and Minion DHRII DH casing tires, ensuring that riders can tackle any terrain with confidence.
Elevate your downhill experience with the COMMENCAL SUPREME DH V5—where performance meets innovation, perfect for the adventurous Canadian rider. Whether you’re racing down the slopes of Whistler or navigating the rugged trails of the Laurentians, this bike is built to deliver an unbeatable ride.
*Please note that bike specs are subject to change without prior notice.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX DHX 2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XLFork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Longneck
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7s, 9-21t DM CassetteRims
E13 Grappler Core Alloy DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 LG1 PLUS DH - Front: E13 LG1 PLUS DH
Rear : E13 Grappler Core Alloy DH - Front : E13 Grappler Core Alloy DHTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready - Front: 29" x 2.5" WT, 3C MaxxGrip, DH casing, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Aqua Blue
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, fork fender specific Fox 40
*Please note that bike specs are subject to change without prior notice.
