from 11/12 years old
4’10”-5’3”
from 11/12 years old
4’10”-5’3”
DOWNHILL
DOWNHILL
200mm
200mm
200mm
200mm
27.5" / 27.5"
27.5" / 27.5"

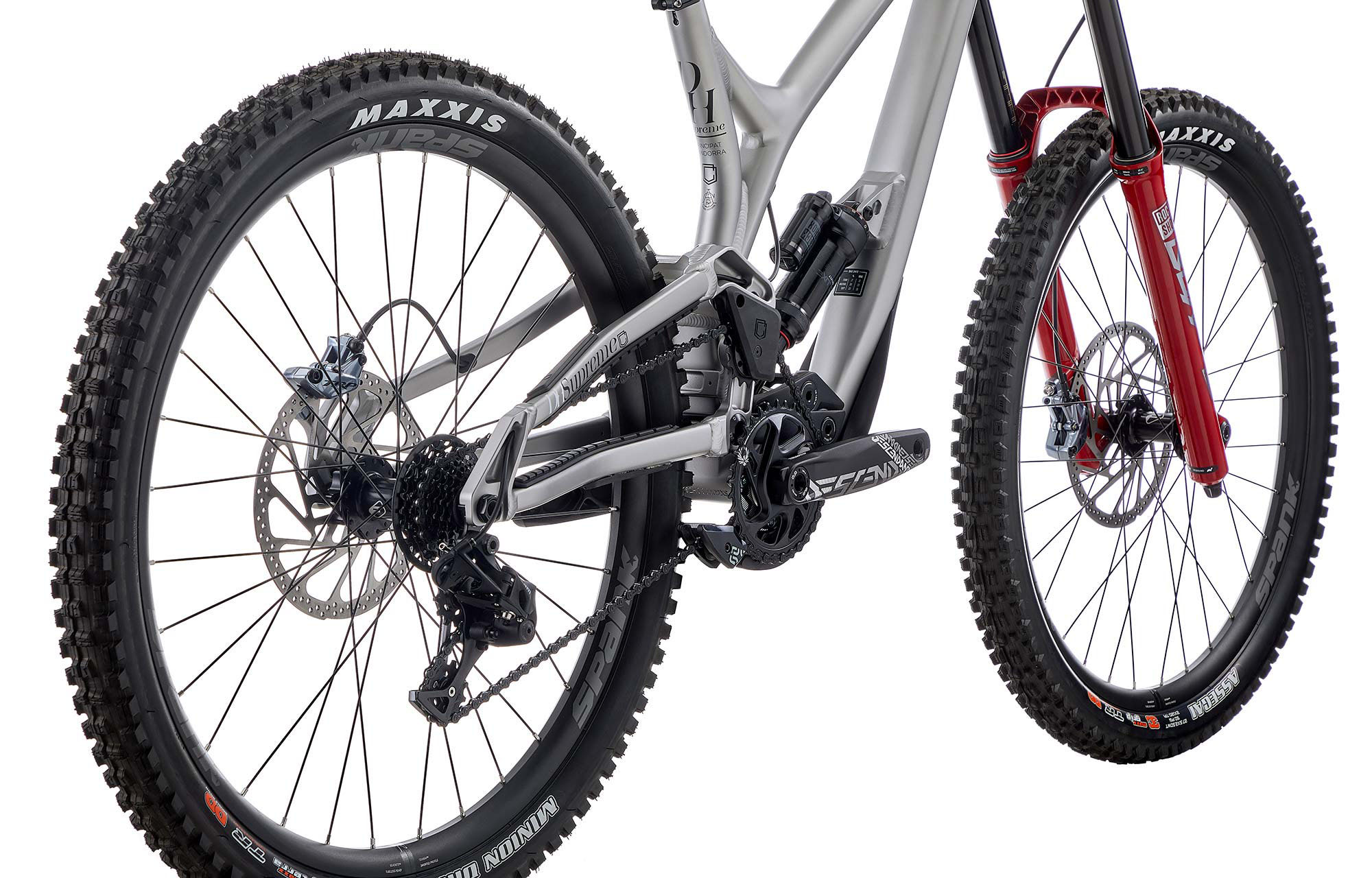

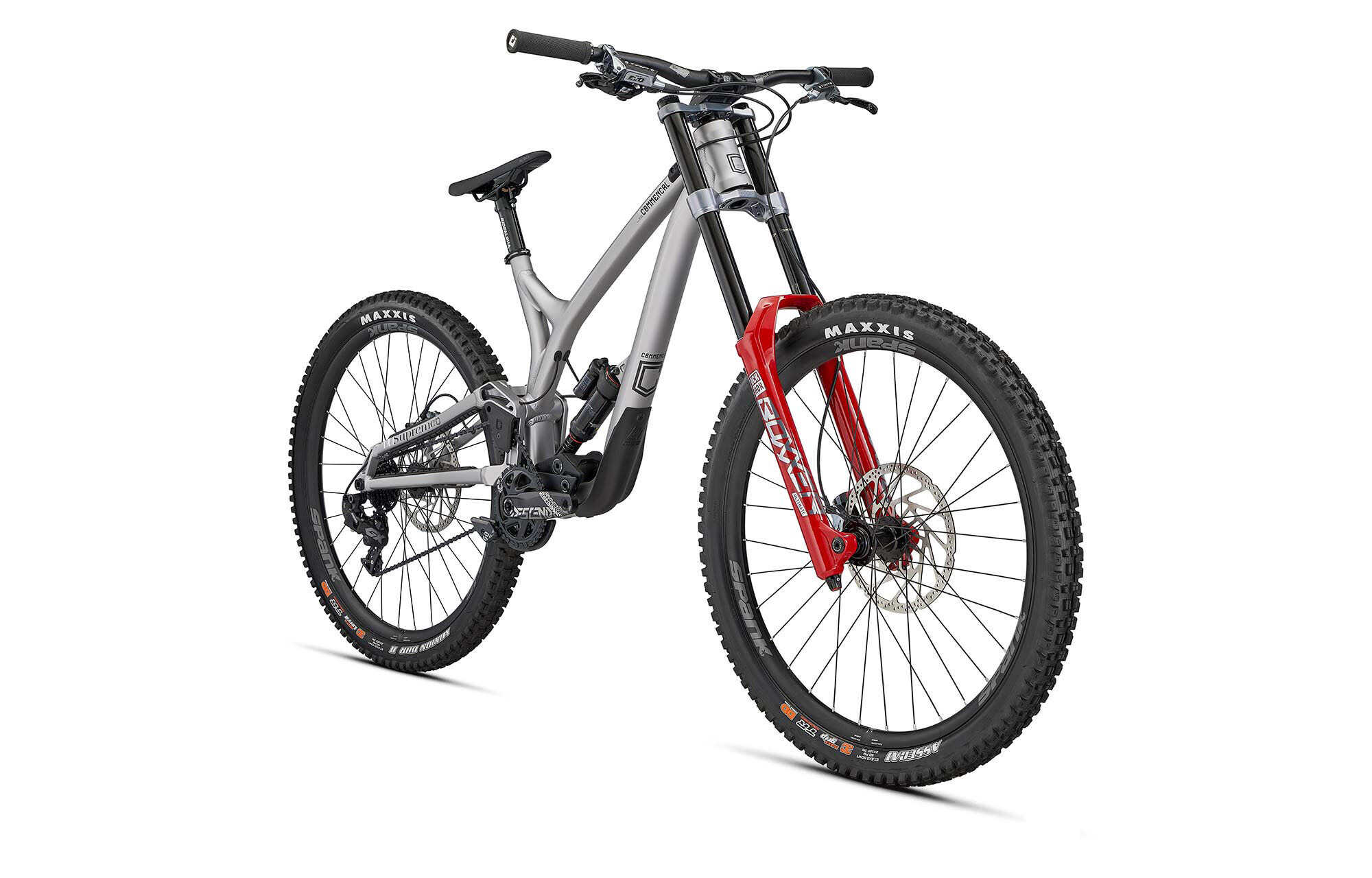

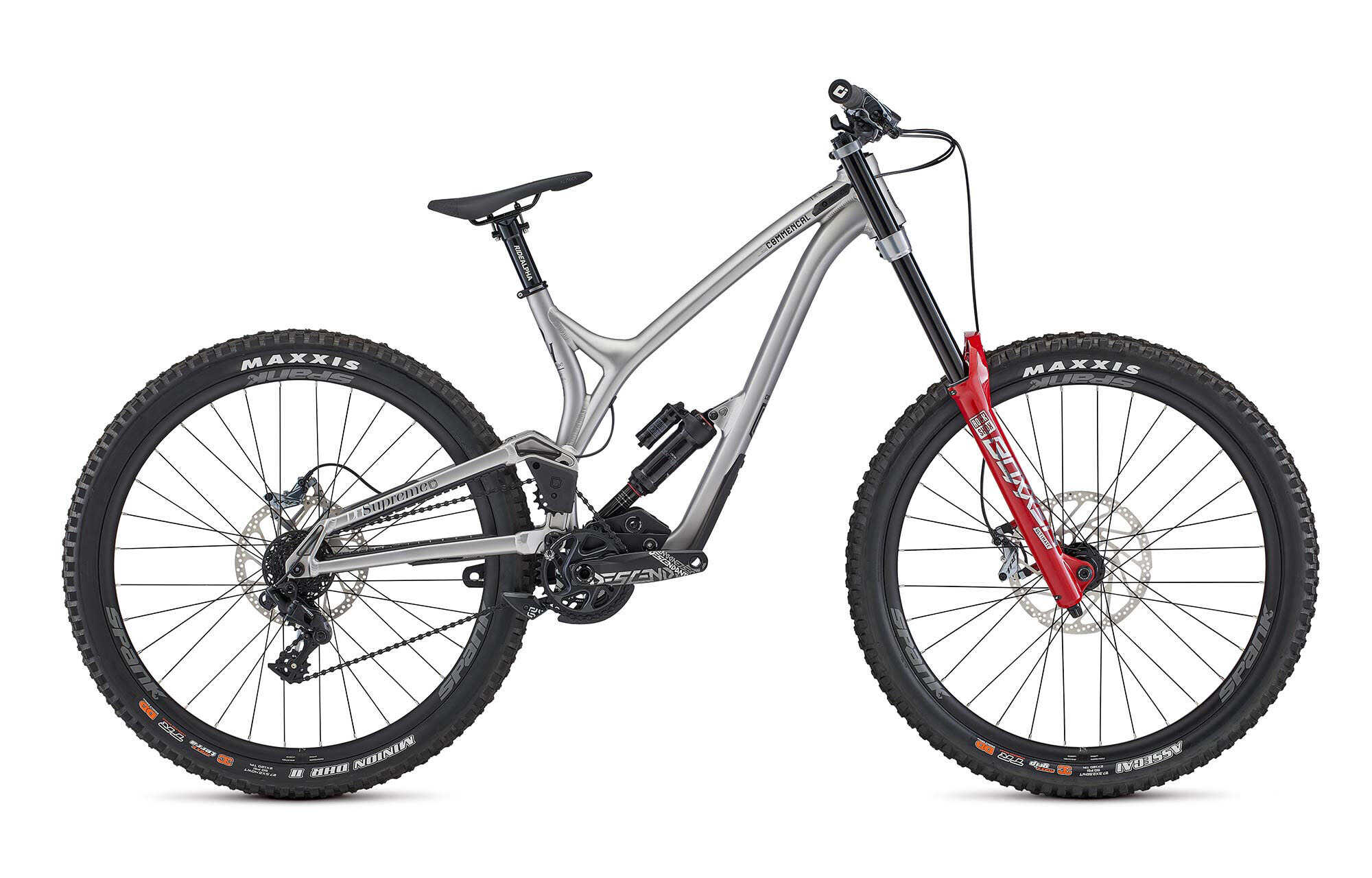

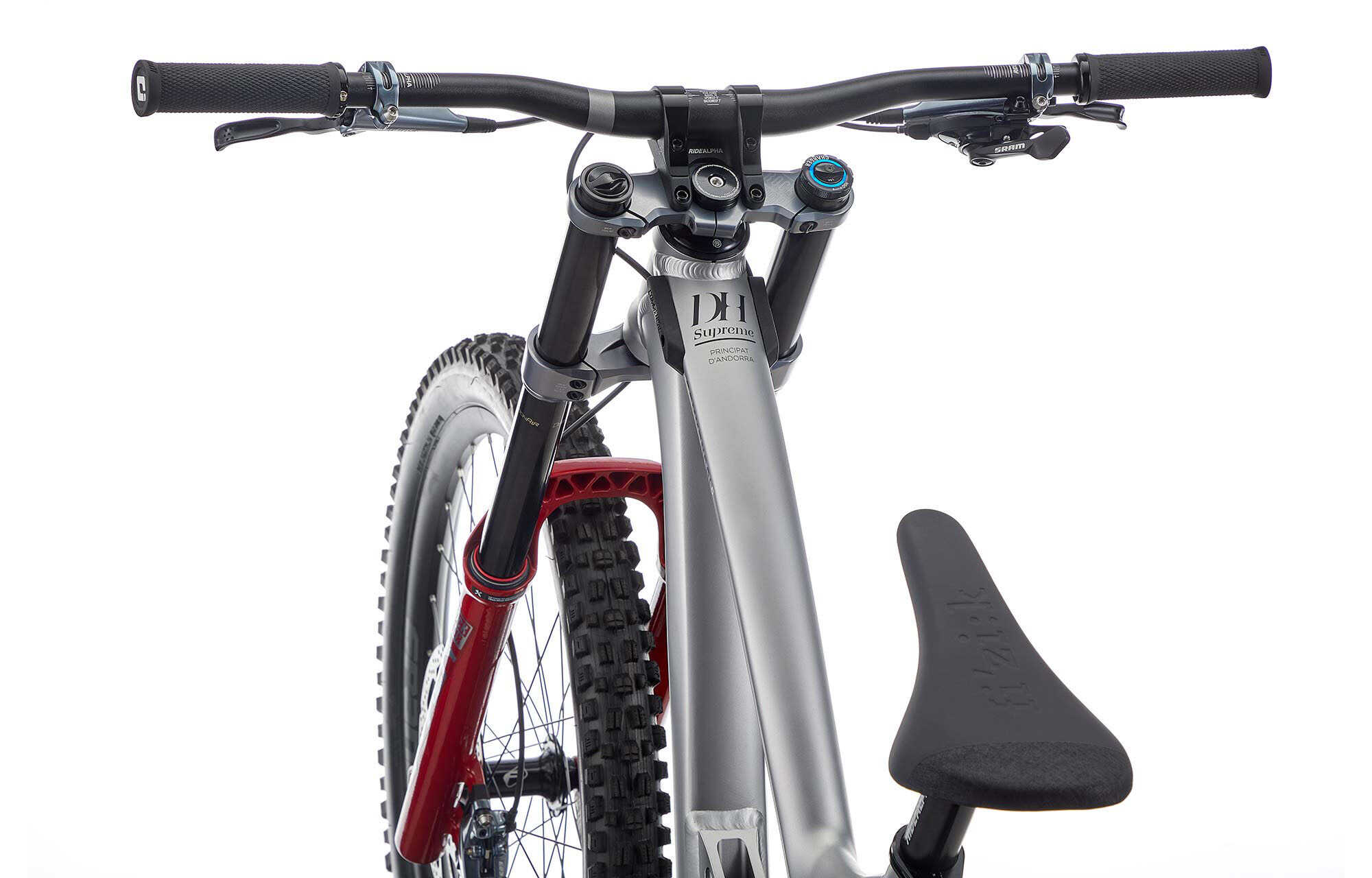

COMMENCAL SUPREME DH V4 XS
Since 2015, the SUPREME DH V4 has been acclaimed for its efficiency. Not content with putting the high pivot point back into the spotlight, it is often considered one of the best downhill mountain bikes ever produced. This 27.5" XS version is perfect for young riders who are budding racers and who want to challenge the clock. It is the ideal steed for young downhill riders.
from 11/12 years old
4’10”-5’3”
from 11/12 years old
4’10”-5’3”
DOWNHILL
DOWNHILL
200mm
200mm
200mm
200mm
27.5" / 27.5"
27.5" / 27.5"
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
specifications
specifications
Frame
SUPREME DH V4 27'', 200 mm travel
27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ROCKSHOX SuperDeluxe Select
250 x 75 mm, LSC, rebound, Debonair, 1 tokenFork
ROCKSHOX Boxxer Ultimate, 200 mm travel
27.5", Charger 2, RC2 damper, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 TokenHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 740 mm width, 20 mm rise, Alloy 6061Grips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons
Rotors: TRP R1 220 mm, 6-bolt, 2.3 mm widthShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
28-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
SRAM PG-720
7 sp, 11-25tRims
SPANK Spike Race 33
27.5'', 32h, 28 mm inner width, tubeless readyHubs
Rear: FORMULA DHG-150 - Front: FORMULA DHL-93
Rear: 32h, 150 x 12 mm, sealed bearings, SHIMANO Hyperglide - Front: 32h, 110 x 20 mm, sealed bearingsSpokes/nipples
SAPIM D-Light
J-Bend, 2.0-1.65-2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless ReadySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,7 kg / 39 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Silver
Matte FinishAccessories
Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover
*Please note that bike specs are subject to change without prior notice.
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
DH Racing
Frame material
AL 6066 T4, T6
Frame weight
4,6 kg / 10.14 lb
Rear travel
200 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm / 30 x 10 mm
Recommended/max. fork height
27 : 590mm / 595 mm - 29 : 601mm / 610 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
27,5": 65 mm - 29": 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
150 x 12 mm
-
Bicycle type
Kids bike - Downhill Racing
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,6 kg / 10.14 lb
-
Rear travel
200mm
-
Shock length/stroke
250x75mm
-
Recommended SAG
17-23% / 11-15mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x8mm / 30x10mm
-
Recommended/max. fork height
581mm / 586mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
No
-
Wheels size
27.5’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
105mm
-
Bottom bracket type
Press Fit BB 107mm
-
Chain guide
ISCG 05 lower - Custom upper idler guide
-
Chain line
56,5
-
Rear Hub dimension
150x12mm
-
Rear Axle dimension
Maxle standard, 176mm, M12, P1.0mm
-
UDH hanger
No
-
shock anchor adjustment
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
