COMMENCAL SUPREME DH V5 SIGNATURE CLEAR SILVER
- TECHNICAL INFO
- TECHNICAL SPECIFICATIONS
- Size Chart
ALL ABOUT SUPREME DH V5
The SUPREME DH V5 is our pure race machine. It is the result of three years of work between our R&D department and our athletes. From the bike’s very first season racing World Cups, the results have been the best advertisement: 9 wins, 27 podiums and a first place in the Elite Women, Men and Team rankings.
With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day.
LEARN MORE ABOUT ALUMINIUM
SUPREME DH V5 SIGNATURE CLEAR SILVER
The SUPREME DH V5 SIGNATURE is our most advanced downhill machine.

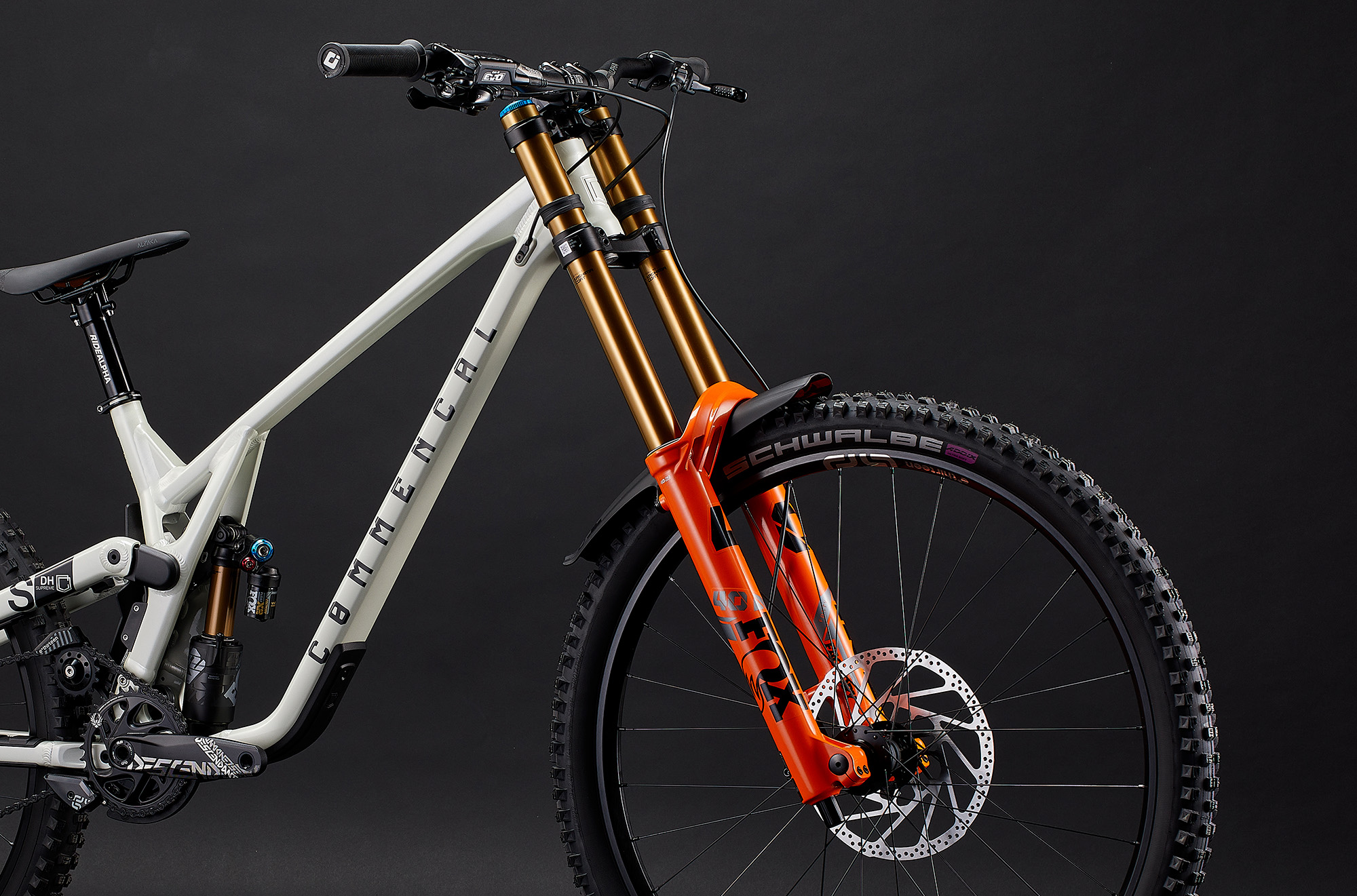

This ultimate setup is equipped with a FOX 40 Factory fork. From the adjustable valves to equalize pressure in the fork, to the GRIP 2 hydraulic cartridge with four adjustment channels, without forgetting the Float Evol air spring: impeccably working suspension is a given.
The FOX Float X2 Factory shock absorber provides incomparable sensitivity and never overheats regardless of the duration or condition of the track.
More information here

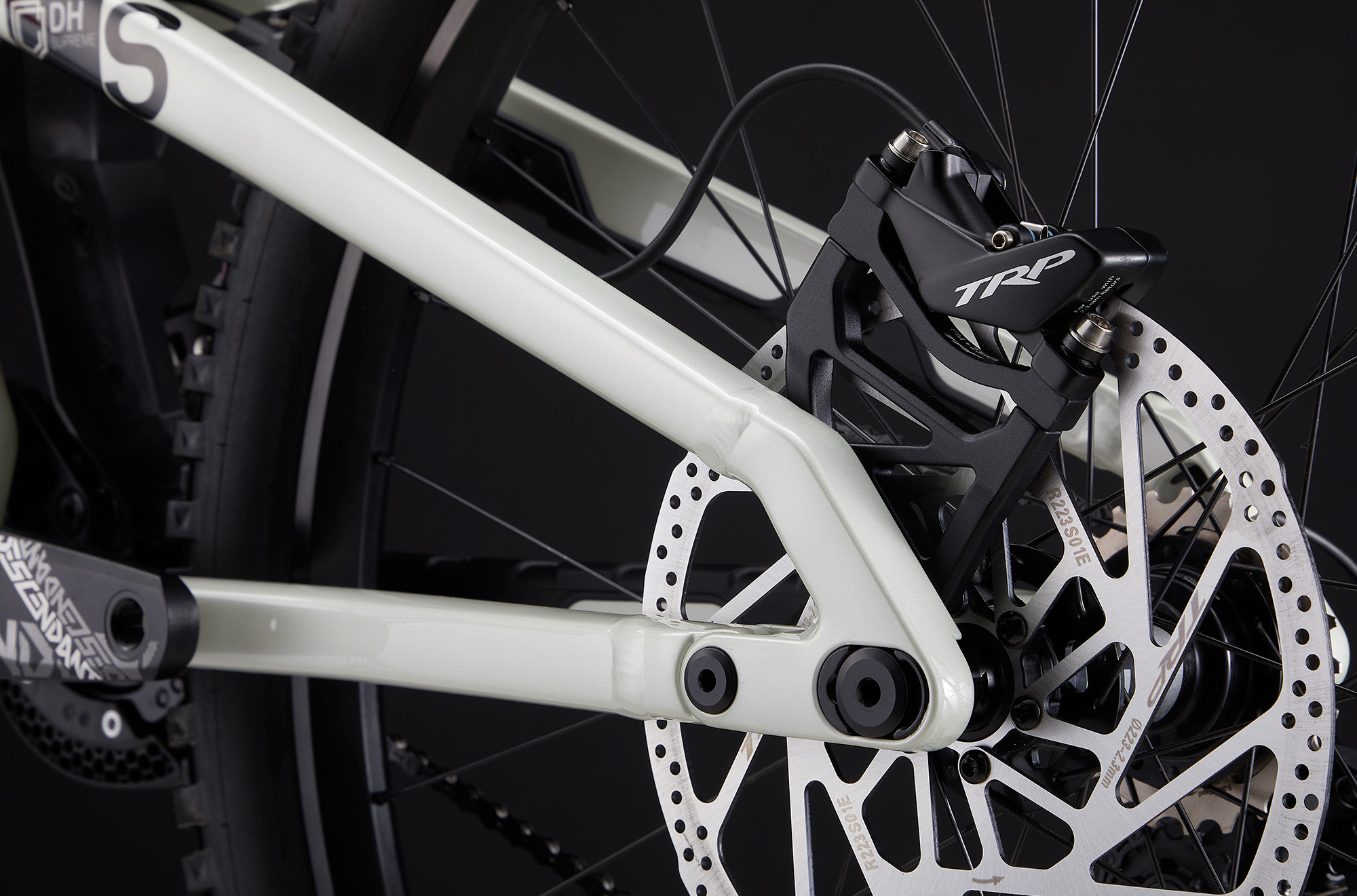

TRP DH-R Evo brakes provide the stopping power. The same as those used at World Cup races by Amaury Pierron; they are powerful, durable, progressive, and precise.
The E13 Grappler Race wheels are specifically developed for DH. The freehub body integrated into the cassette widens and strengthens the spoke umbrella for increased lateral stiffness.
The SRAM GX DH transmission offers ultra-precise and quick gear changes for DH.
Finally, this model features the SCHWALBE Tacky Chan Super DH casing and Ultra Soft rubber tyres, developed by the COMMENCAL MUC-OFF team, to tackle the most demanding tracks on the circuit.
*Please note that bike specs are subject to change without prior notice.
Frame DH Racing
Al 6066 T6
4,2 kg / 9,25 lb (without accessories)
250 mm / 75 mm
Piggy back shock compatible
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
ZS56 / ZS56
Maximum tyre dimension (etrto)
Disc brake standard
Postmount 200 mm
Rear rotor max. size
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
Rear hub compatibility
157 x 12 mm
Flip ChipFront / Up
Wheel Base LengthCentered
BridgeXS & S : Thin - M & L : Medium - XL : Thick
Supreme DH V5 29/27, 220 mm travel on S / M / L / XL
29'', Alloy 6066, triple butted tubes, T4, T6
FOX FLOAT X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, rebound. More information here
FOX 40 Factory, 203 mm travel
29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens. More information here
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Soft pro compound, single clamp, black
TRP DH-R Evo, 4 pistons, resin pads
Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
SRAM GX DH
E13 LG1 + Bottom Guide
SRAM GX DH
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t
E13 Grappler Race Alloy
7 sp, 9-24t
E13 GRAPPLER Race Alloy
REAR: 27.5'', 32h, 30mm inner width on S / M / L / XL - FRONT: 29'', 32h, 30mm inner width on S / M / L / XL
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear: SCHWALBE TACKY CHAN - Front: SCHWALBE TACKY CHAN
REAR: 27.5''x2.4'', Super DH, Addix Ultra Soft on S / M / L / XL, Tubeless Easy - FRONT: 29"x2.4", Super DH, Addix Ultra Soft on S / M / L / XL , Tubeless Easy
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075
FIZIK Gravita Alpaca X5
MG rails, flexible "wings"
18,3 kg / 40,34 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, tubeless valves, fork fender specific Fox 40
*Please note that bike specs are subject to change without prior notice
