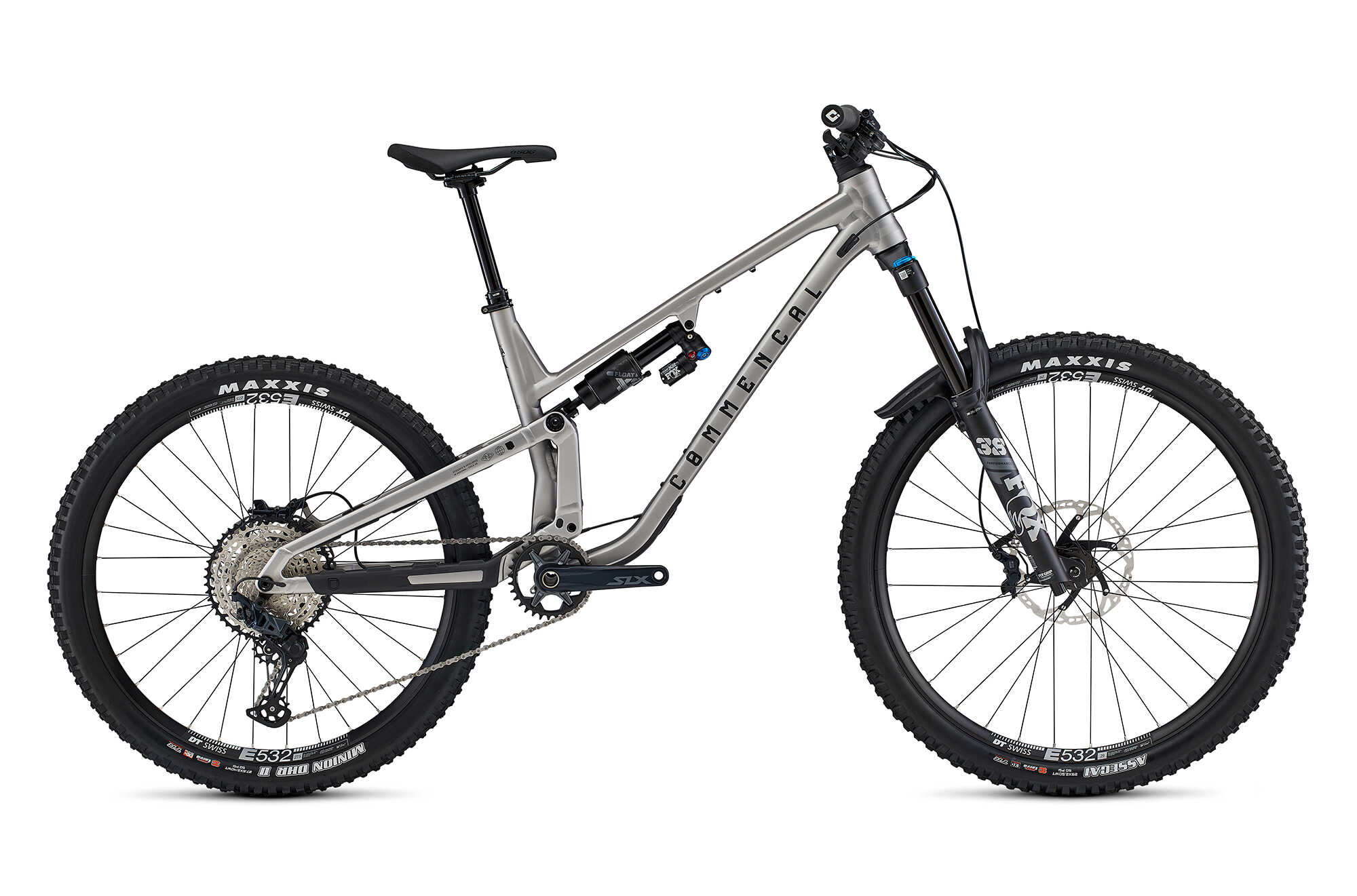

COMMENCAL META SX V5 ESSENTIAL SILVER image number null

ENDURO
FREERIDE

170mm

165mm

29" / 27.5"

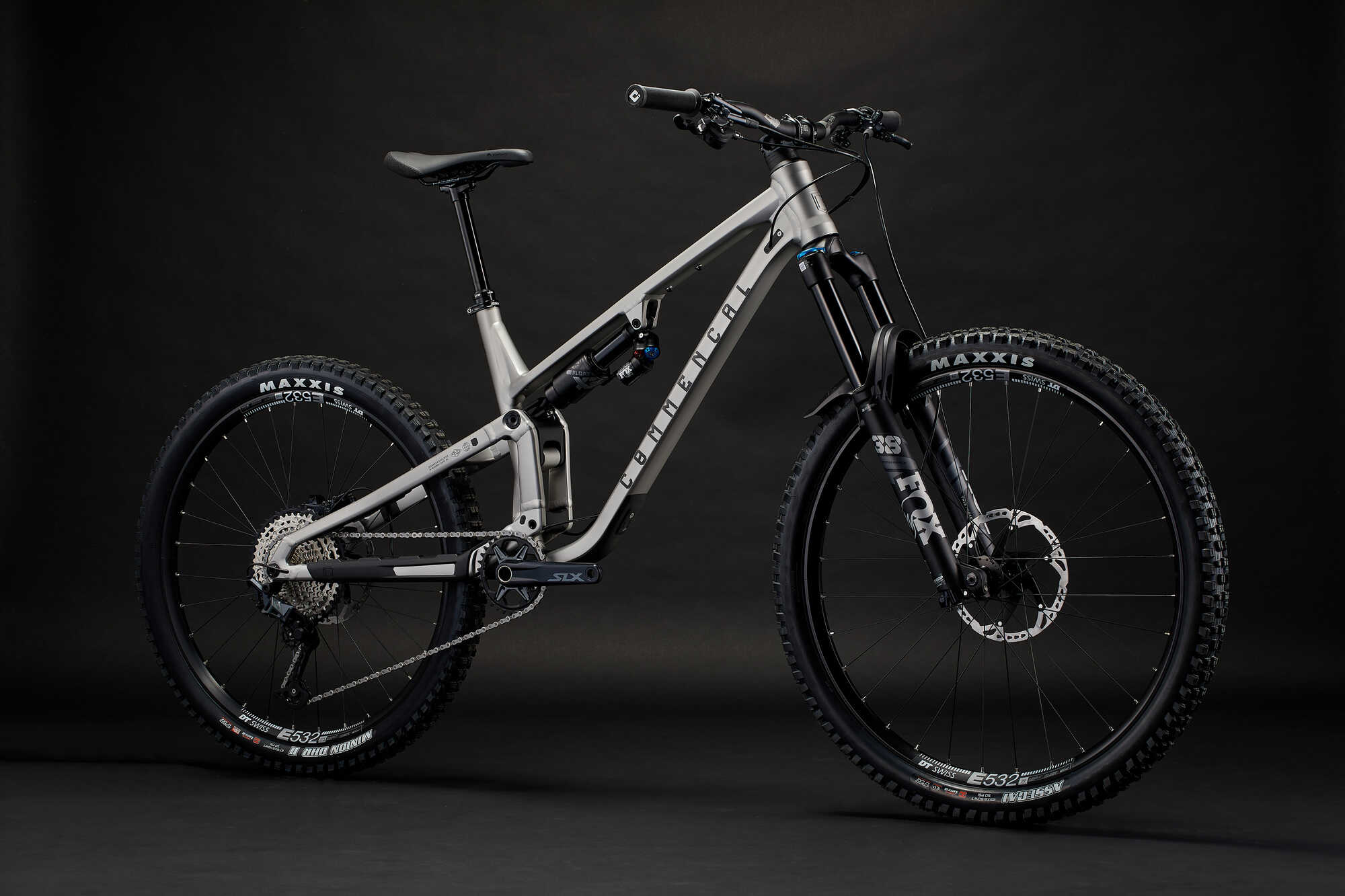

COMMENCAL META SX V5 ESSENTIAL SILVER

The META SX V5 is driven before its ridden. The 165mm of travel is combined with our VCS kinematics with virtual pivot point. Ready to be pinned and with monstrous grip, it is the ideal tool for riders looking for a mountain bike that feels like a mini-downhill rig in the bike park or on steep trails.

ENDURO
FREERIDE

170mm

165mm

29" / 27.5"

LEARN MORE ABOUT THE META SX V5

C$ 5,900.00 C$ 5,500.00 -7%

id/sku : 23METASXE1

SIZE GUIDE

Sold out

In stock

Sold out

Availability: Select the size to see null

HOME
DELIVERY

CLICK &
COLLECT

SHOWROOM
DELIVERY

Click & collect

Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.
Learn more

Showroom Delivery

Choose to pick up your order at our COMMENCAL Canada showroom (Squamish, BC) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.

Please select an option

Postal Code :

Please enter a valid Postal Code

State :

Country :

Please select a country

Sku :

No delivery options are available for this address or item. Please contact us at store.ca@commencal.com

The estimated shipping cost is calculated based on all the items in your cart.

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 0

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 1

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 2

CHECK OUT THE META SX V5

Designed with the heart of a downhill beast and the versatility of an enduro powerhouse, the COMMENCAL META SX V5 ESSENTIAL SILVER is made for Canada’s most demanding mountain biking landscapes. Featuring a robust 165mm of rear travel paired with our cutting-edge Virtual Contact System (VCS) kinematics, this bike is built to perform on everything from BC’s loamy North Shore trails to the rugged granite of Quebec’s Sentiers du Moulin. Whether you’re tackling steep descents in Squamish or high-speed runs in Bromont Bike Park, the META SX V5 is up for the challenge.

META V5 - META SX V5: WHICH ONE TO CHOOSE?

COMMENCALMETA SX V5 ESSENTIAL SILVER – Ready for Canada’s Toughest Trails

FOX Suspension: Ready for Any Terrain

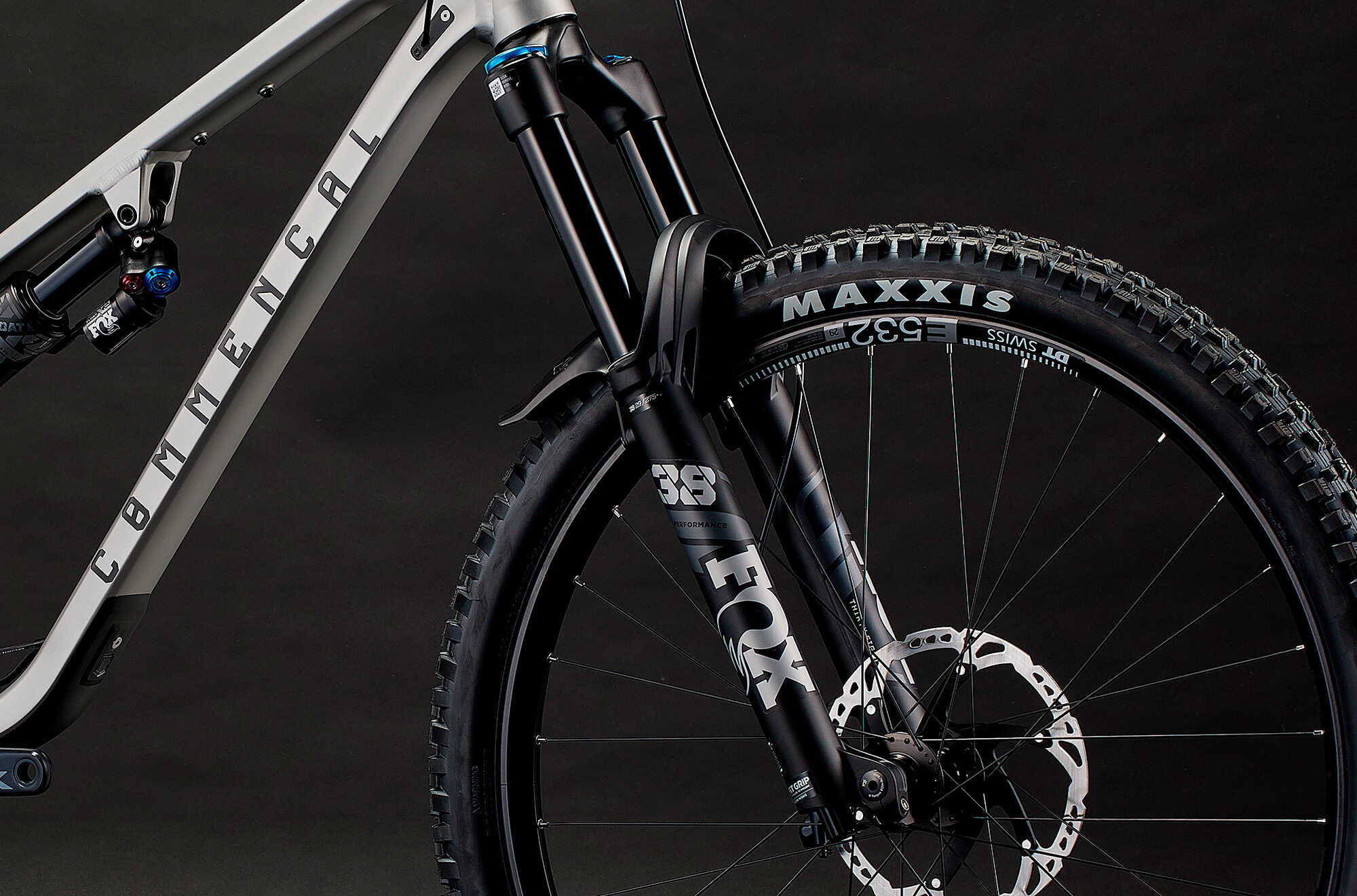

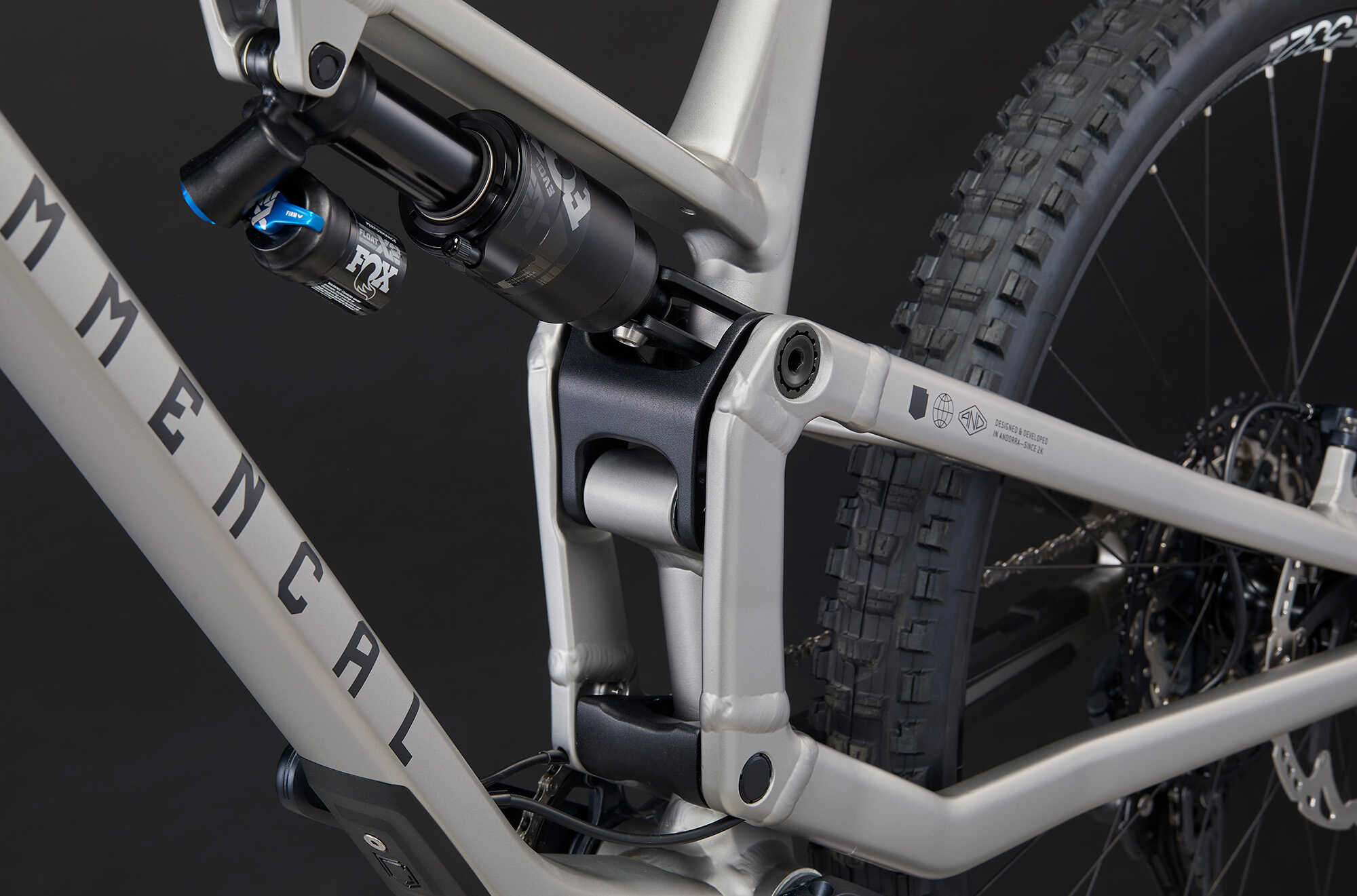

Equipped with a FOX 38 Float Performance fork with three-position GRIP cartridge at the front and a FOX Float X2 Performance shock at the rear, this setup offers maximum adjustability for Canada’s diverse trail types. Riders can easily fine-tune rebound and low-speed compression, ideal for the technical trails of Alberta’s Moose Mountain or Ontario’s Blue Mountain Bike Park.

Powerful SHIMANO SLX Drivetrain and Brakes

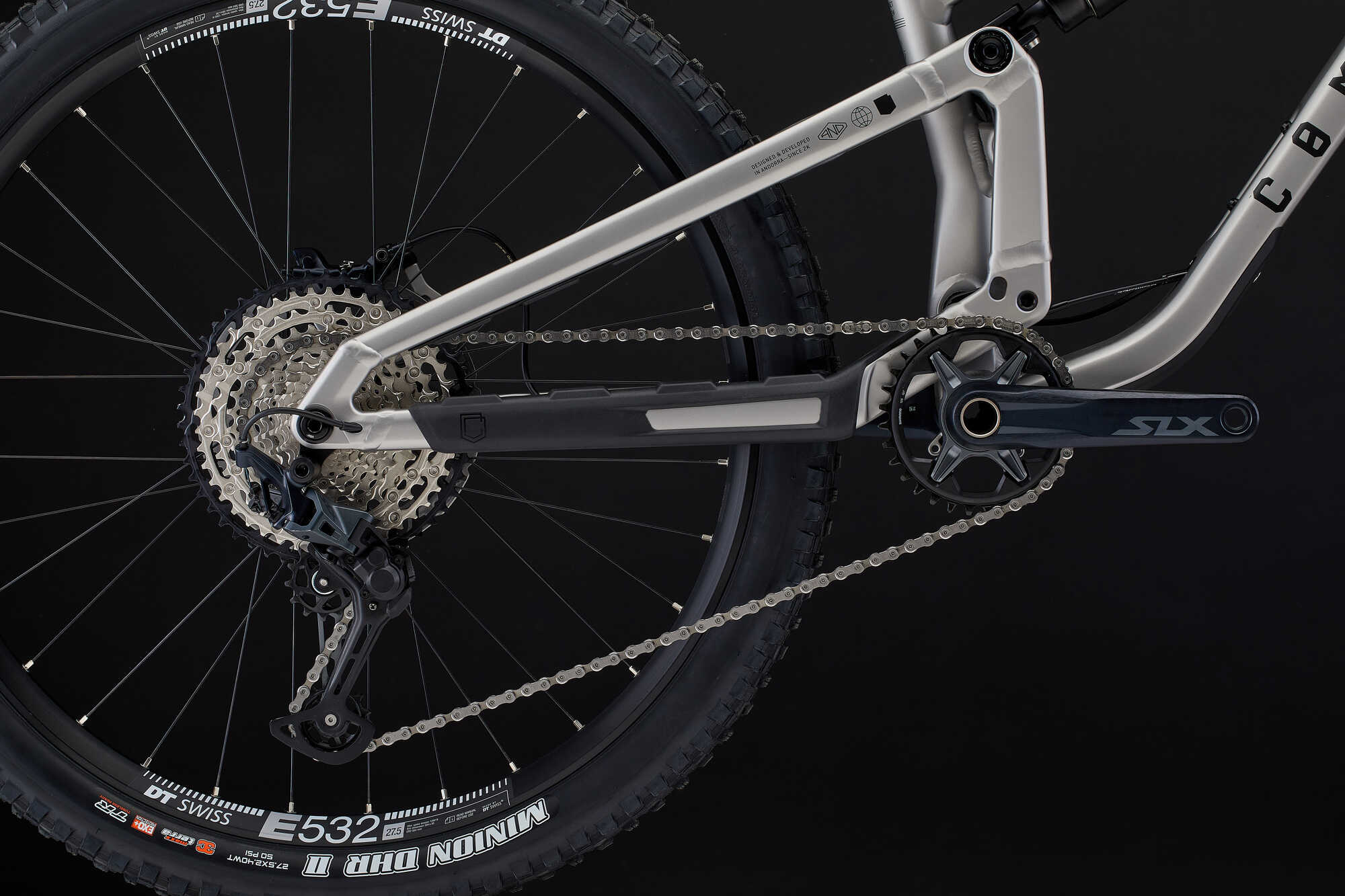

The META SX V5 ESSENTIAL uses the trusted SHIMANO SLX 12-speed groupset, providing reliability and precision on long enduro rides or quick transitions in a bike park. The 4-piston brakes ensure confidence on steep, challenging descents, whether on the granite of Mont-Sainte-Anne or navigating the roots and rocks of Pemberton’s Happy Trail.

Built for Canadian Trails: DT SWISS and MAXXIS Tires

The enduro-specific DT SWISS E 532 tubeless rims, paired with Formula hubs and Sapim spokes, offer unmatched durability and control. MAXXIS Minion DHRII tires with EXO casing provide traction and durability essential for Canadian trails, from Alberta’s Rocky Mountain terrain to Quebec’s rolling singletracks.

*Please note that bike specs are subject to change without prior notice.

La META POWER SX DJI Podium es un montaje exclusivo equipado con una horquilla FOX Podium Factory y una transmisión electrónica SRAM XO Eagle T-Type.

• La horquilla invertida FOX Podium Factory de 160 mm ofrece una rigidez estructural comparable a la de una FOX Factory 40. Aunque no cuenta con puente, sus botellas de 47 mm de diámetro y su eje de acero de 20 mm aseguran una relación peso/rigidez optimizada. El amortiguador trasero es un FOX Float X2 Factory, que proporciona el equilibrio perfecto entre agarre y confort.

• El sistema de frenado está confiado a SHIMANO con pinzas Deore XT de 4 pistones. El tacto es firme y el rendimiento constante, gracias a los discos de 203 mm.

• Las ruedas son DT SWISS HX 1700, combinadas con bujes DT SWISS 370, un conjunto preparado para soportar los terrenos más exigentes.

• Fiable y reactiva, la transmisión electrónica SRAM XO Eagle T-Type de 12 velocidades es ideal para la práctica del e-MTB, capaz de afrontar cualquier situación.

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 3

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 4

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 5

COMMENCAL META SX V5 ESSENTIAL SILVER image cover number large 6

specifications

Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
Shock
FOX Float X2 Performance
230 x 65 mm, 2-pos lever, LSC, LSR, 0.3 spacer x2
Fork
FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, compression, rebound, Boost (15 x 110 mm), 44 mm offset, 2 spacers
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm
Handlebar

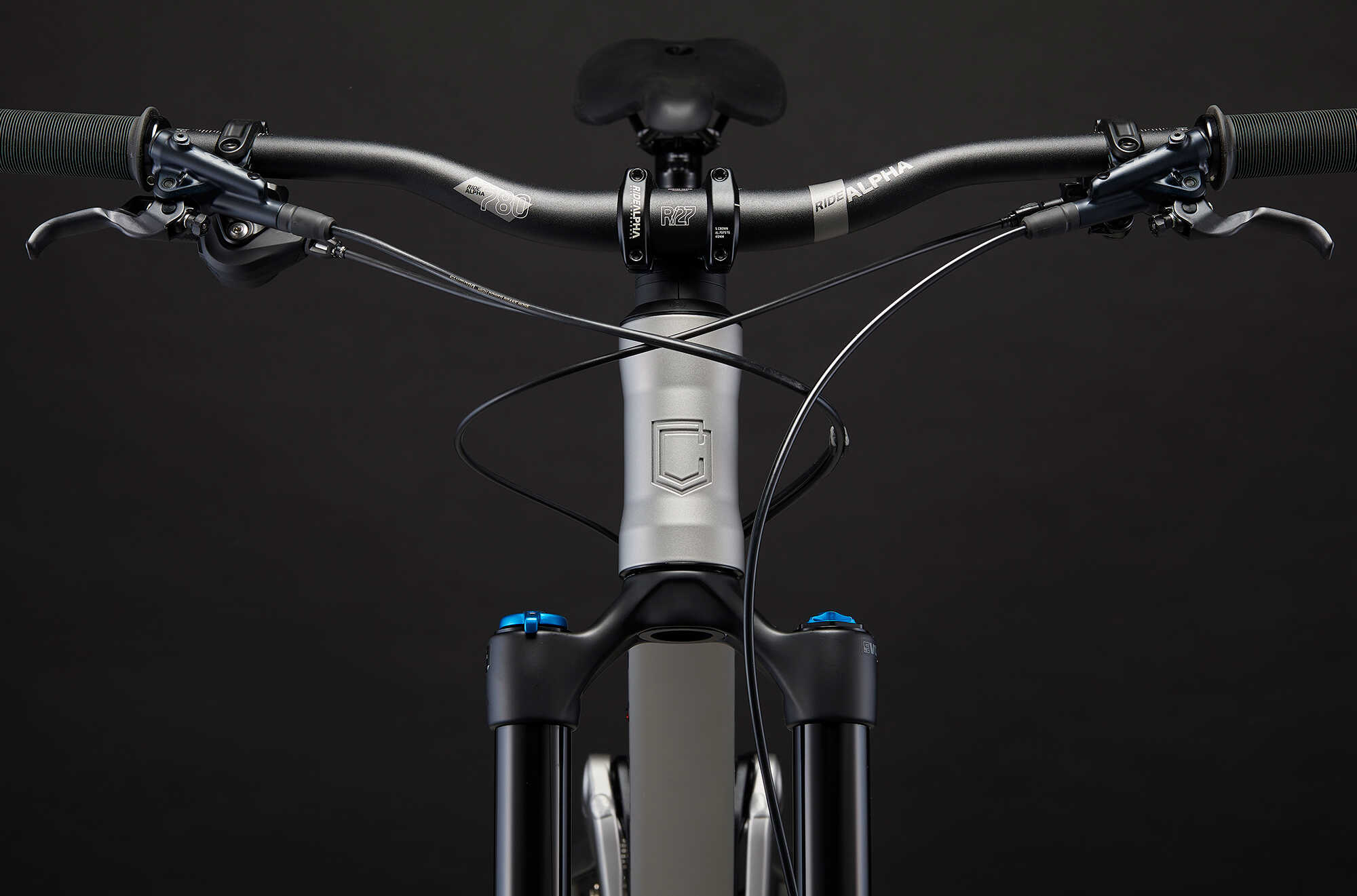

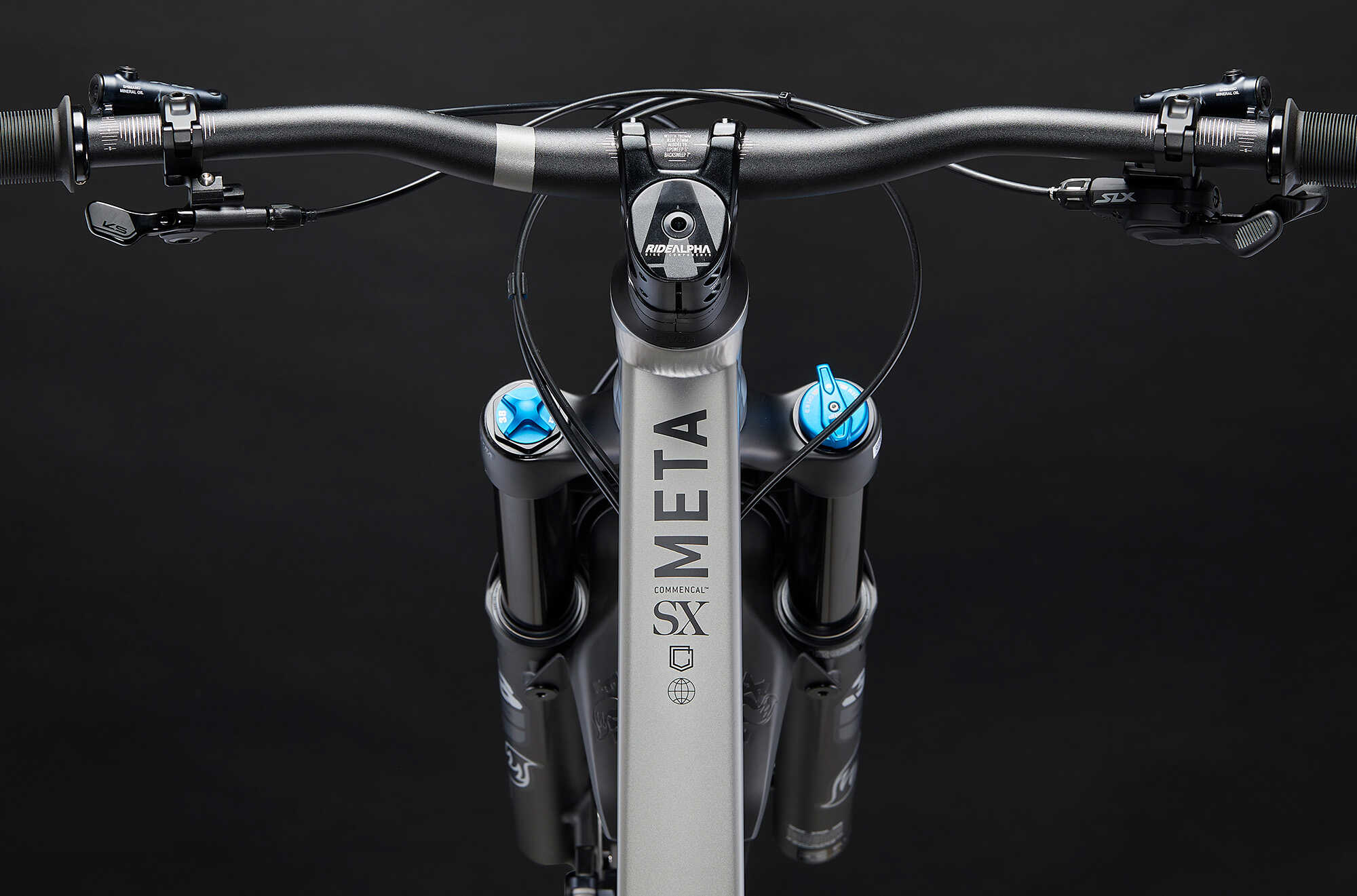

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck
Soft compound, single clamp, black
Brakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holes
Shifters
SHIMANO SLX
12s
Rear derailleur
SHIMANO SLX
12s
Bottom bracket
SHIMANO BB71
Pressfit
Crankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology
Chain
SHIMANO SLX
12s
Cassette
SHIMANO SLX
12s, 10-51t
Rims
DT SWISS E 532
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
Hubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Micro Spline - Front: 32h, sealed bearings, 15 x 110 mm
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready
Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3
140 mm width, steel rails
Weight
16.4 kg / 36.2 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Silver
Matte Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender

Bike specifications are subject to change without notice.

Technical informations

Bicycle type
ENDURO 27/29"
Frame material
AL 6066 T4, T6
Frame weight
3,3 kg / 7.27 lb, raw without accessories
Rear travel
165 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
NOTHING ON BODY / 20 X 10 mm ON SHAFT
Recommended/max. fork height
586 mm / 44 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
64 mm / diam. 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Press Fit BB 92
ISCG
ISCG 05
Chain Line
52 mm
Rear hub compatibility
L=180 mm, M12, P1.0 mm - Hub 12 x 148 mm standard maxle

Bicycle type

Enduro / Freeride
Frame material

AL 6066 T4, T6
Frame weight

4,08 kg / 8,99 lb
Rear travel

165mm
Shock length/stroke

230x65mm
Recommended SAG

27-30% / 18-20mm
Piggy back shock compatible

Yes
Shock bushings

20x10mm / no bushing needed on clevis
Recommended/max. fork height

586mm / 598mm
Headset type

ZS56 / ZS56
ICR compatible

Yes
Wheels size

29’’ - 27.5’’
Max. rear tyre dimension - ETRTO

65mm - Ø584mm
rear brake mounting type

Postmount 200mm
Rear brake rotor max. size

223mm
Seatpost/seat clamp diameter

34,9mm / 38,5mm
Seatpost insertion max.

S : 230mm / M : 270mm / L : 290mm / XL : 310mm
Bottom bracket type

Press Fit BB 92mm
Chain guide

ISCG 05 lower - Custom upper guide
Recommended/max. chainring teeth

32T / 34T
Chain Line

55
Rear Hub dimension

148x12mm
Rear Axle dimension

UDH standard, 180mm, M12, P1.0mm
UDH hanger

Yes
shock anchor adjustment

No

WHICH META V5 TO CHOOSE?

Our META V5 and META SX V5 share the same playing field but have their own style and behaviour. Whether racing or adventuring, the META V5 loves long rides and wild trails. The META SX V5 prefers the slope, jumps or secret trail features, and the bike park. Their common denominator: Enduro

Check out the differences

Geometry

SIZE

1 - SEAT TUBE LENGTH

380

420

440

460

2 - SEAT TUBE ANGLE

77,5°

3 - HEAD TUBE ANGLE

64°

4 - HEAD TUBE LENGTH

115

120

125

130

5 - WHEELBASE

1230,8

1253

1280,2

1302,4

6 - TOP TUBE LENGTH

579,4

600,6

621,9

643,2

7 - CHAIN STAY LENGTH

442

447

8 - BOTTOM BRACKET HEIGHT

9 - FORK LENGTH

586

10 - REACH

440

460

480

500

11 - STACK

633,8

638,3

642,8

647,3

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
