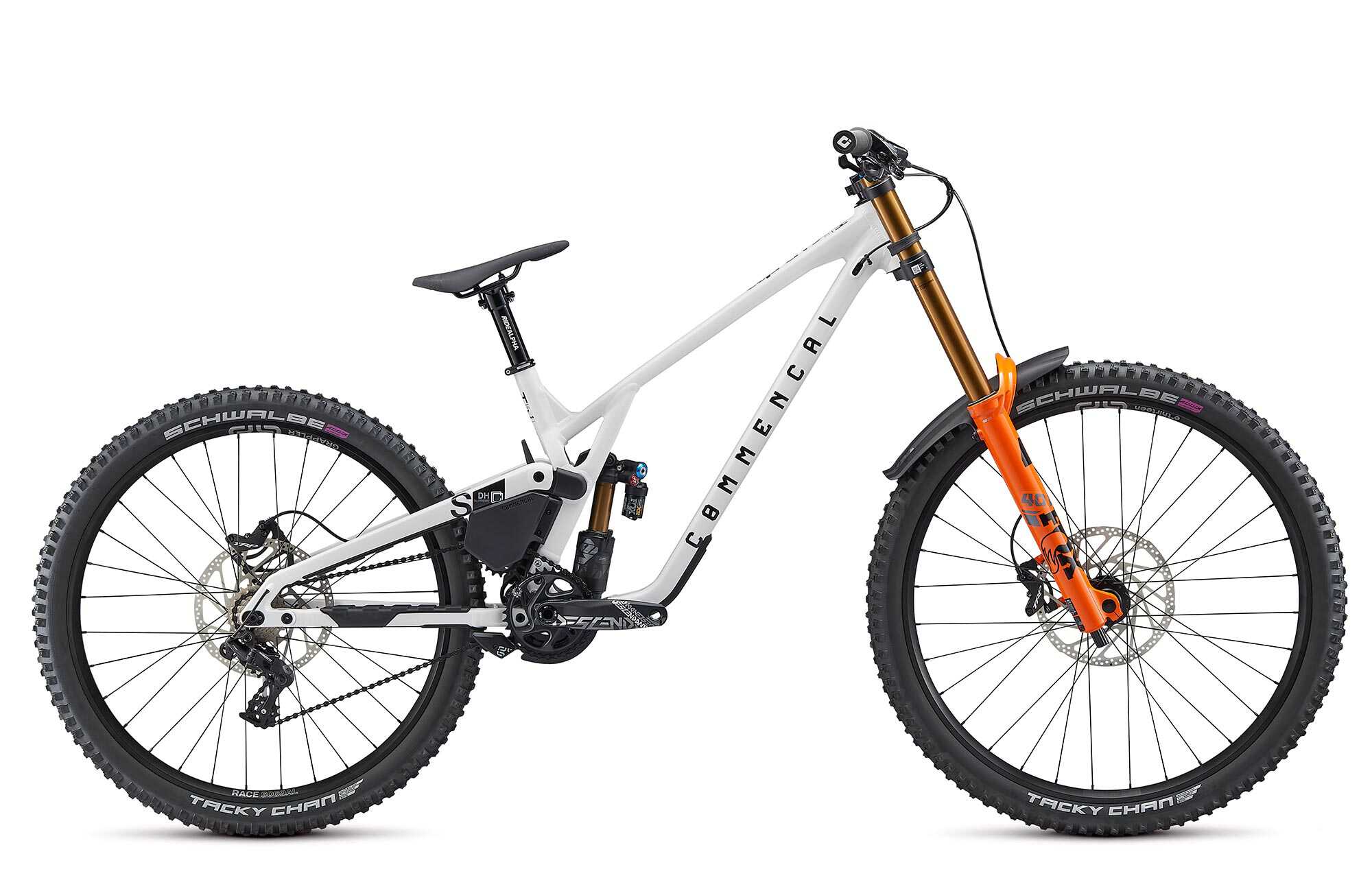

COMMENCAL SUPREME DH V5 SIGNATURE AIR PURE WHITE image number null

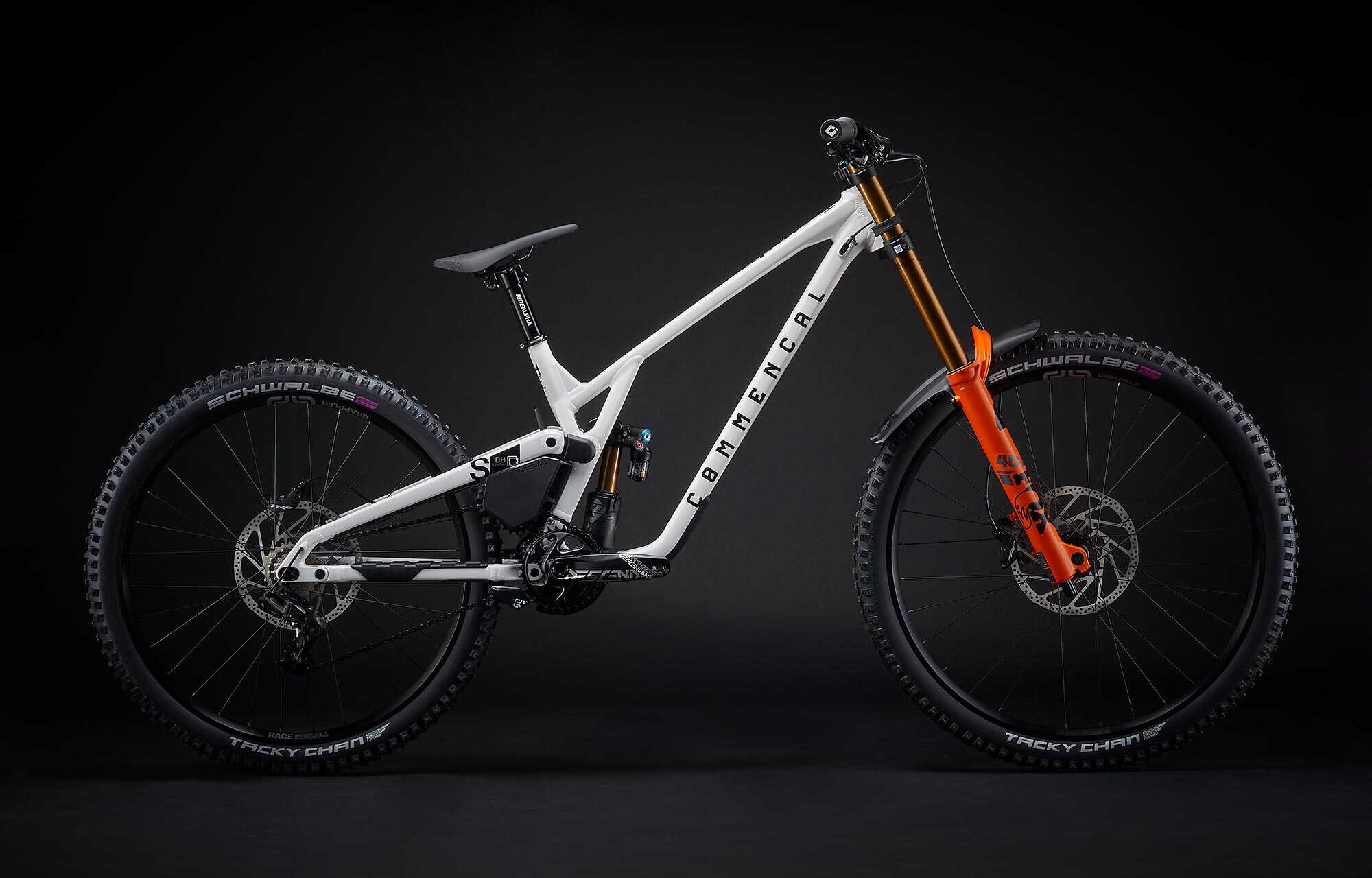

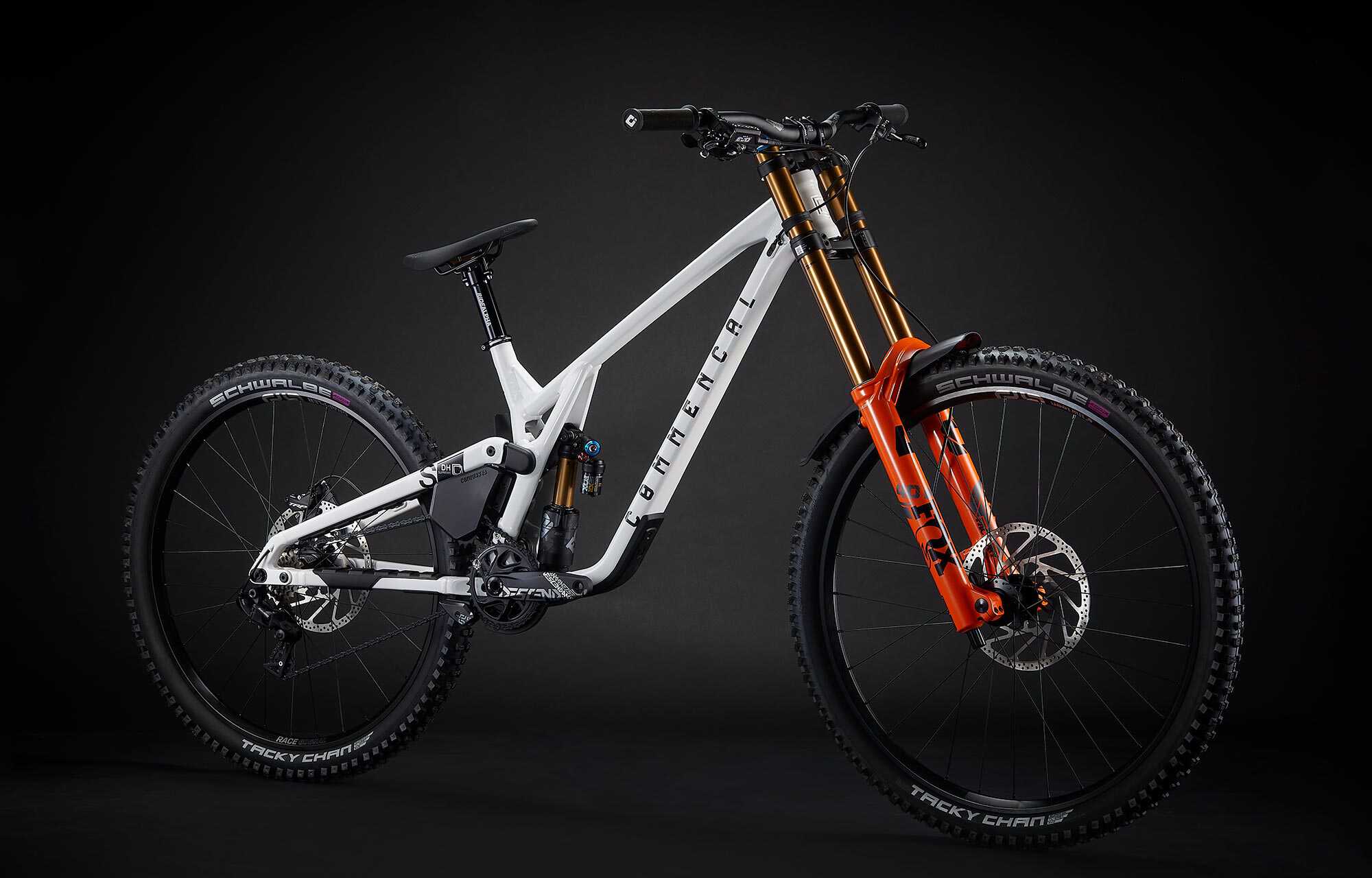

COMMENCAL SUPREME DH V5 SIGNATURE AIR PURE WHITE

Name: COMMENCAL SUPREME DH V5 SIGNATURE AIR PURE WHITE
SKU: 23SUPT
Price: 9900.00 CAD
Availability: InStock

C$ 9,900.00

id/sku : 23SUPT

Out of stock

In stock

Out of stock

Quantity

Availability: Select the model for availability null

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

- DESCRIPTION -

CHECK OUT THE SUPREME DH V5

The SUPREME DH V5 is a race machine built to deliver top-tier performance, meticulously designed for downhill enthusiasts across Canada. Developed over three years of collaboration between our R&D team and elite athletes, this bike has proven its worth with 9 wins, 27 podiums, and first-place finishes in the Elite Women, Men, and Team categories during its debut World Cup season.

Equipped with the innovative High Virtual Contact System kinematics, the V5 blends agility and shock absorption, ensuring smooth rides on Canada's diverse terrains. With customizable geometry and frame behavior, this bike adapts to daily conditions, offering versatility for any downhill adventure.

SUPREME DH V5 SETTINGS GUIDE

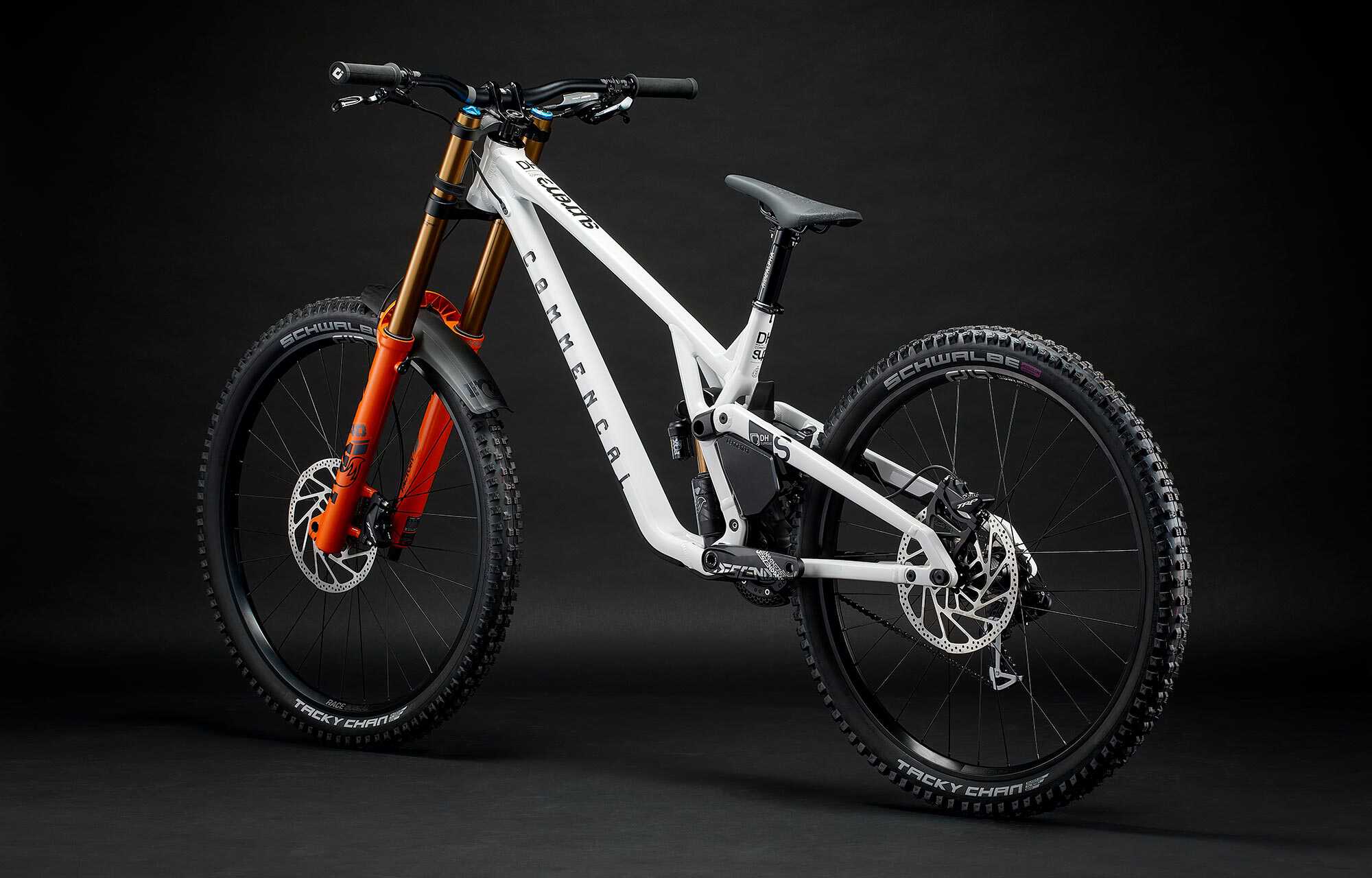

COMMENCAL SUPREME DH V5 SIGNATURE PURE WHITE

The SUPREME DH V5 SIGNATURE PURE WHITE is the pinnacle of our downhill lineup. The FOX 40 Factory fork features pressure-equalizing valves, a GRIP 2 hydraulic cartridge with four adjustment channels, and the Float Evol air spring for flawless suspension, ideal for rugged Canadian trails. The FOX Float X2 Factory shock absorber ensures unmatched sensitivity, maintaining performance even on long, challenging rides.

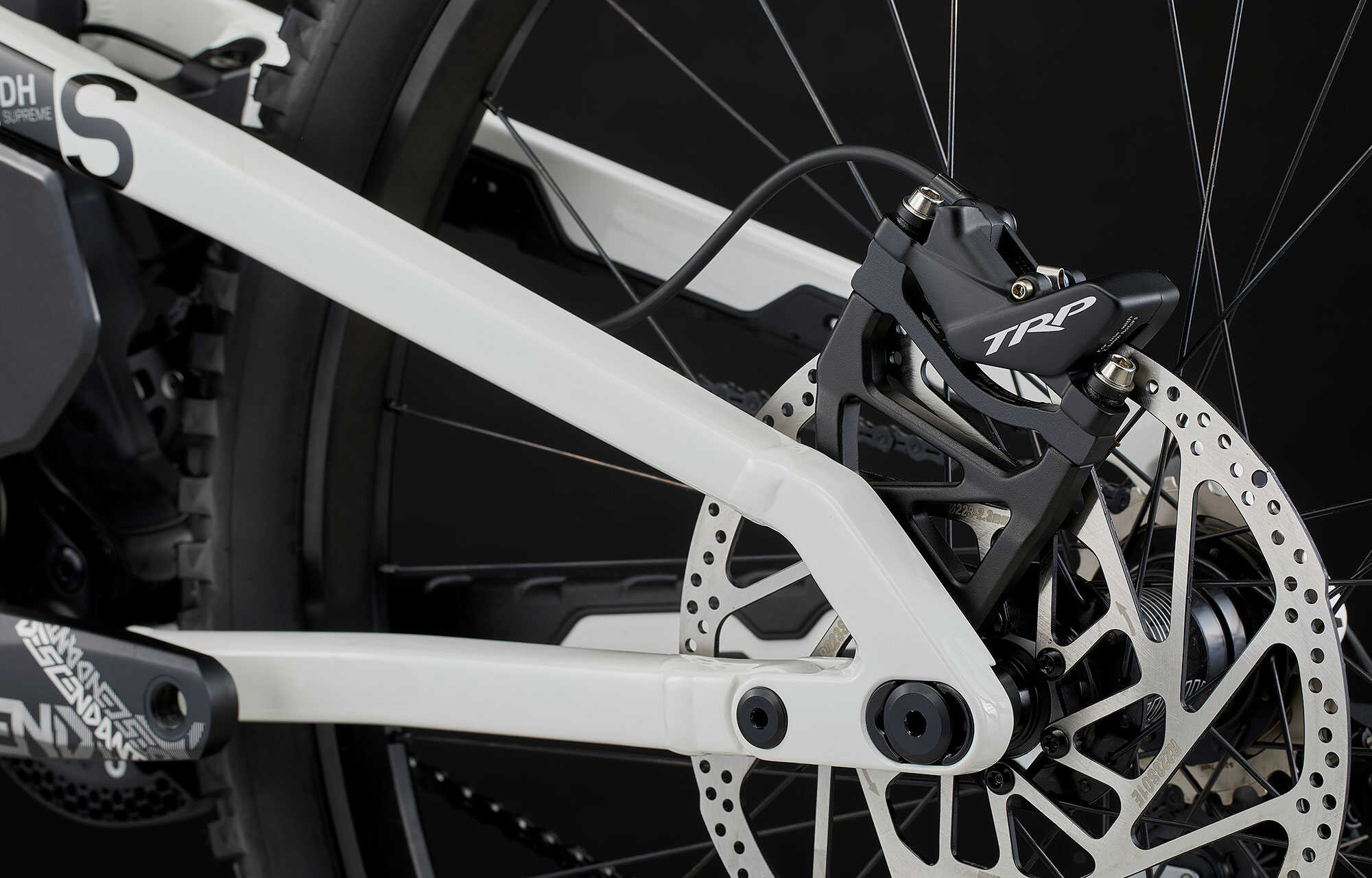

Stopping power comes from the TRP DH-R Evo brakes, trusted by World Cup riders like Amaury Pierron, offering precision, durability, and control. The E13 Grappler Race wheels, built specifically for downhill racing, provide increased lateral stiffness and superior strength, perfect for navigating Canada's toughest courses. The SRAM GX DH transmission delivers precise, quick gear shifts, essential for downhill racing.

Finally, the bike's SCHWALBE Tacky Chan Super DH casing and Ultra Soft rubber tires, developed in collaboration with the COMMENCAL MUC-OFF team, guarantee excellent grip and control, making the SUPREME DH V5 a top choice for riders tackling Canada's most demanding downhill tracks.

*Please note that bike specs are subject to change without prior notice.

See more See less

- Video -

- TECHNICAL INFO -

Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset dimension
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)
Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)

- SPECIFICATIONS -

Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6

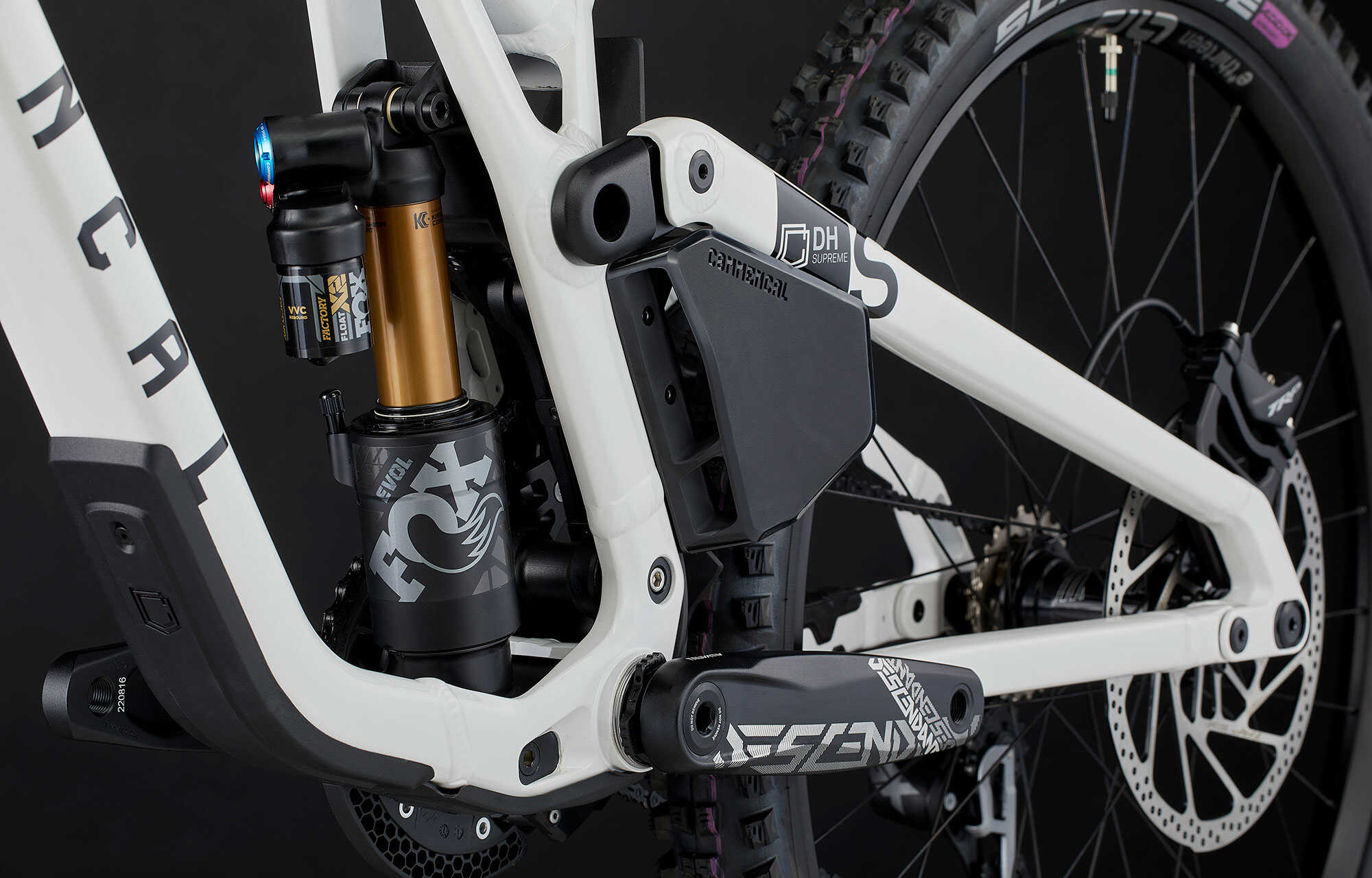

Shock
FOX FLOAT X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 spacer x3

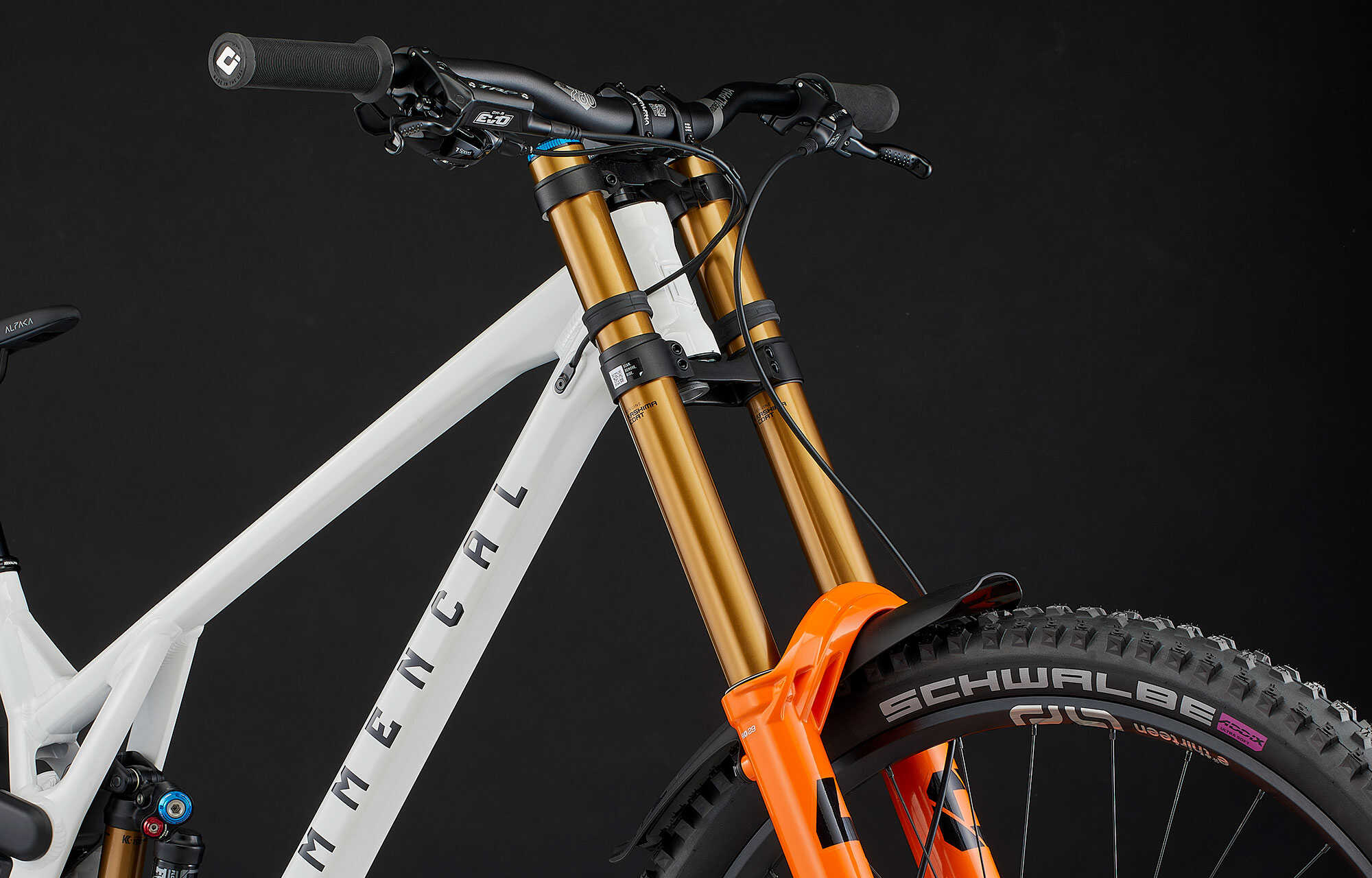

Fork
FOX 40 Factory, 203 mm travel
29", Grip2 damper, HSC, LSC, HSR, LSR. Boost (20 x 110 mm), 52 mm offset, 2 spacers.

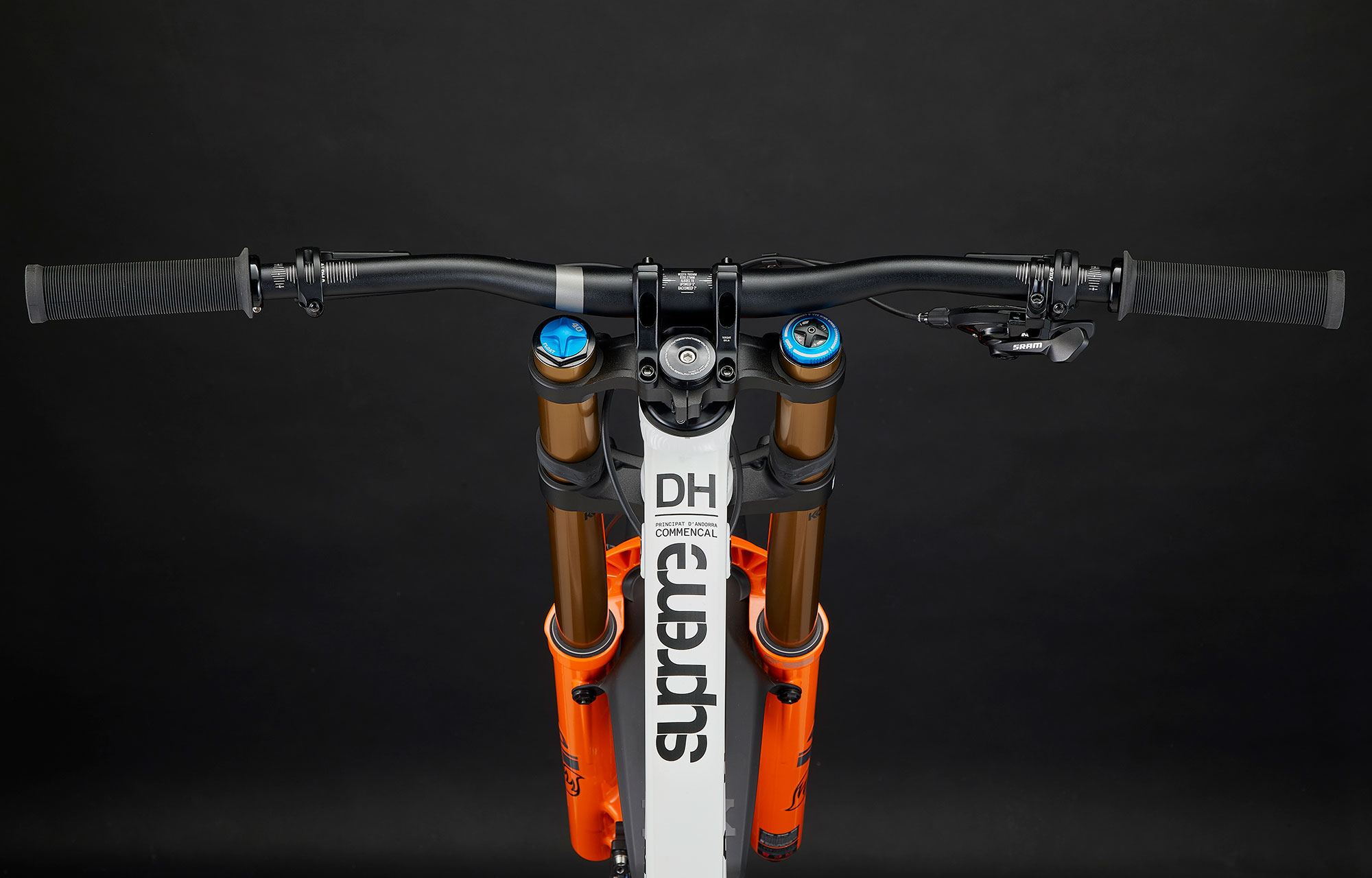

Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm

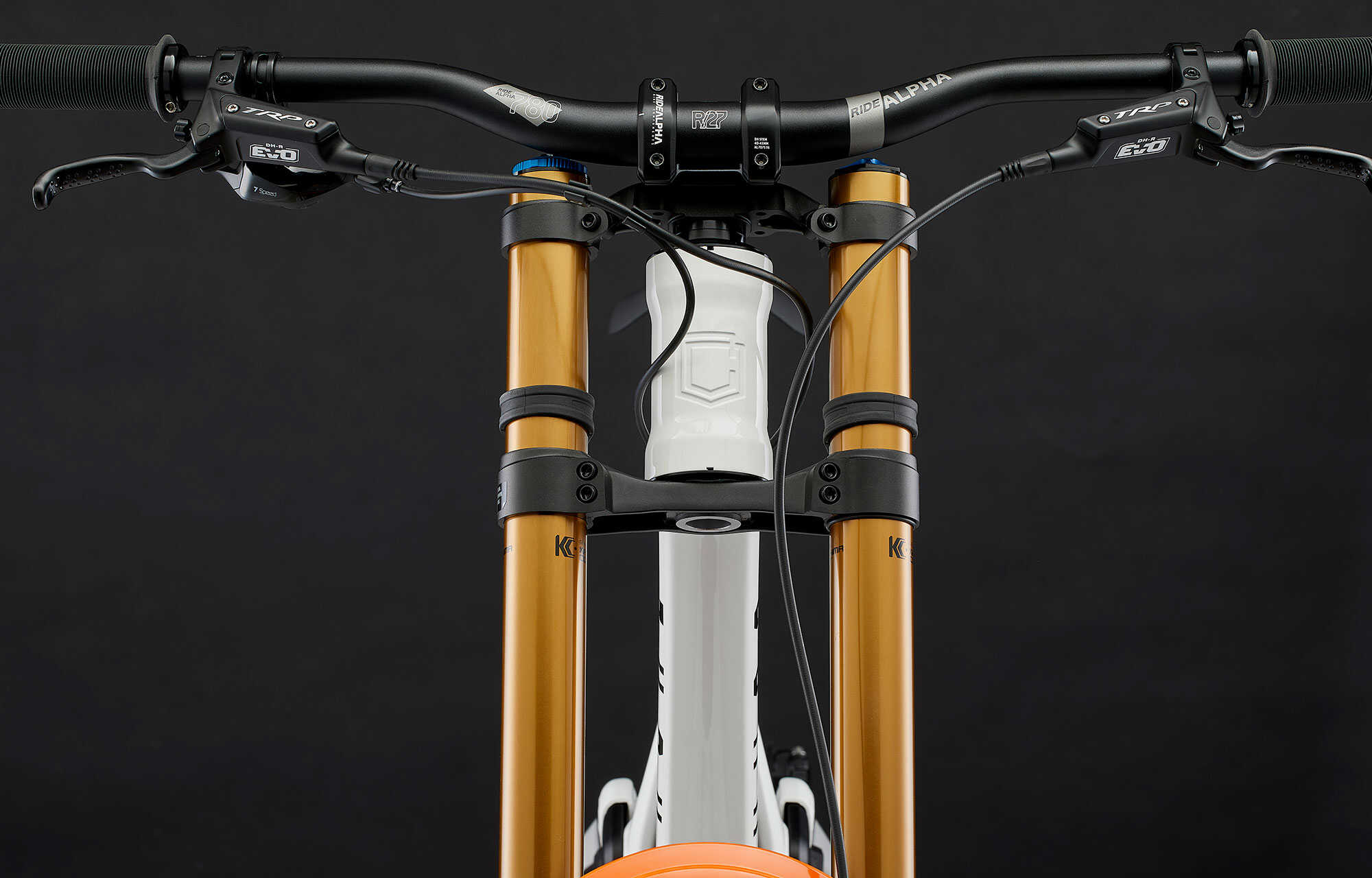

Handlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck
Soft compound, single clamp, black
Brakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness
Shifters
SRAM GX DH
7 sp
Chain guide
E13 LG1 + Bottom Guide
32-34t

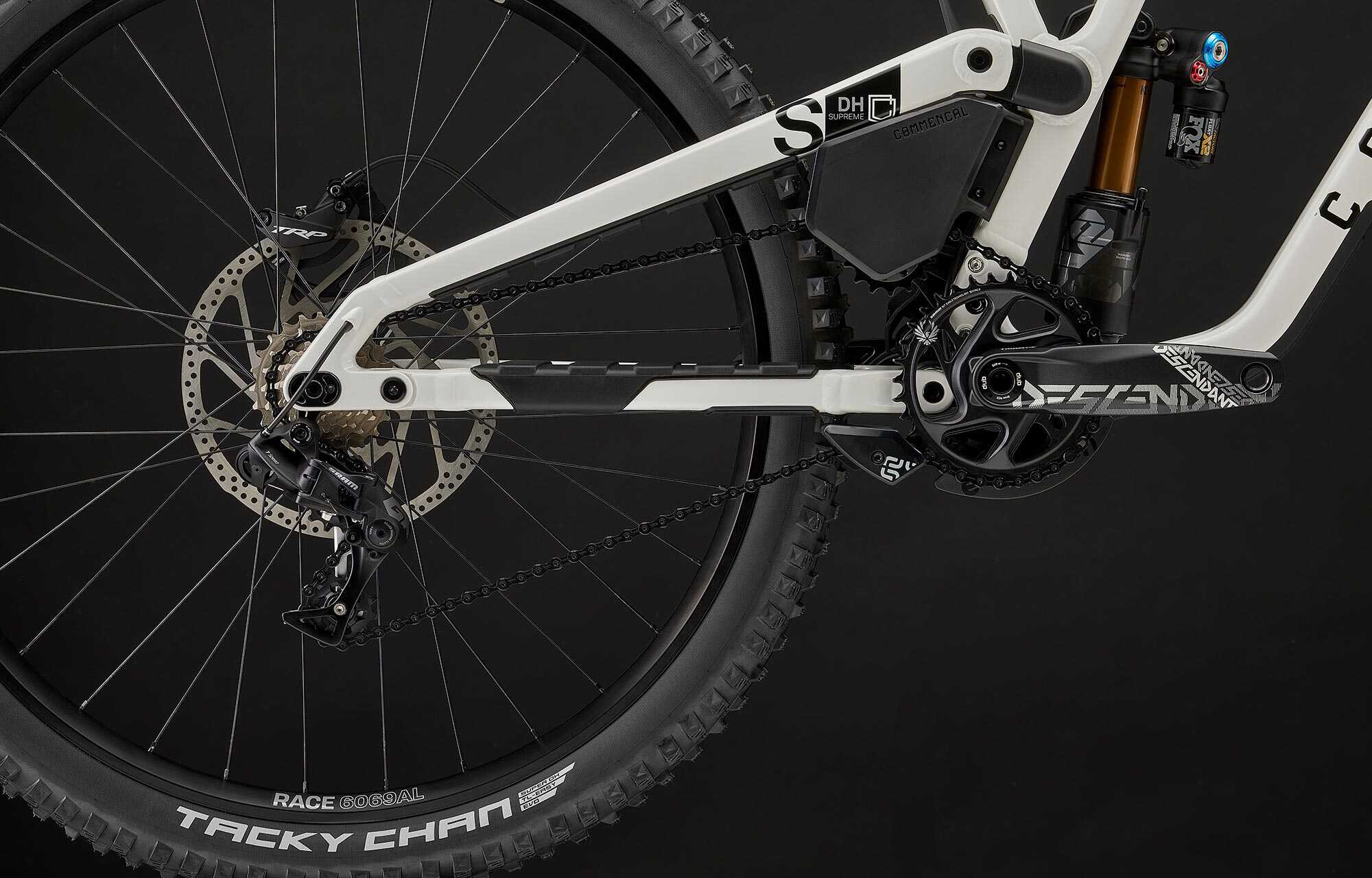

REAR DERAILLEUR
SRAM GX DH
7 sp
Bottom bracket
SRAM DUB
Pressfit
Crankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t
Chain
KMC X11EL
Black
Cassette
E13 DH 7 Speed Integrated Cassette
7s, 9-24t DM Cassette
Rims
E13 GRAPPLER Race Alloy
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
Hubs
Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Tyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Tacky Chan
Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29"x2.4", Super DH, Addix Ultra Soft, Tubeless Easy
Seat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075
Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Wing Flex
Weight
18,1 kg / 39,9 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Pure White
Shiny Finish
Accessories
Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover, tubeless valves, fork fender specific Fox 40
*Please note that bike specs are subject to change without prior notice.
