Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

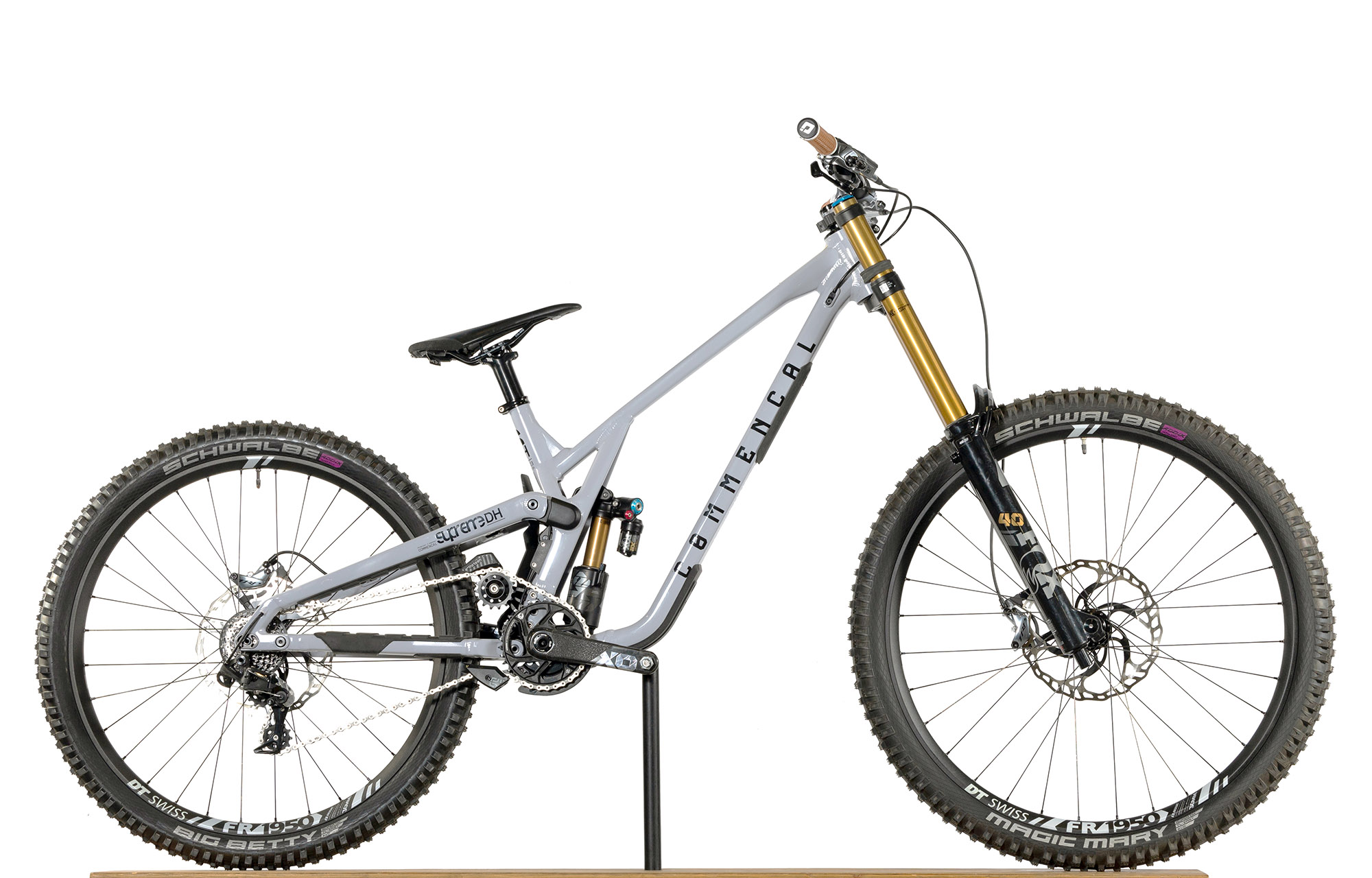

COMMENCAL SUPREME DH V5 ALC TEAM CLOUD - M (BT3SUPV5WEIALCCAM)
Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL -
Ridden bike returned from one of our ambassadors, ready for a new start.
Unique A La Carte mount!
- AESTHETIC -

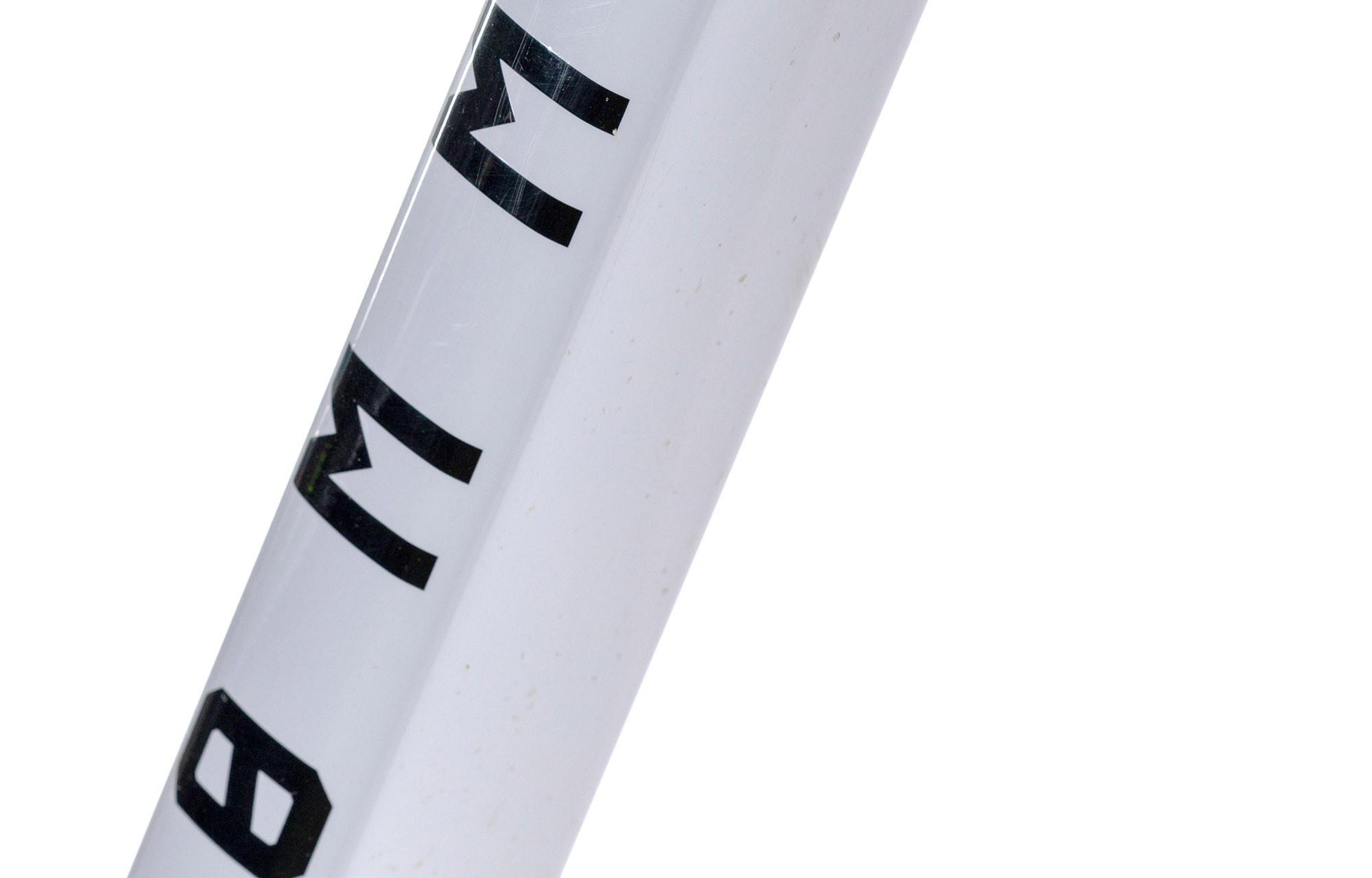

Scratches and paint chips on frame.
Scratches on fork, rims, crank arms, saddle and rear derailleur.
- MECHANICAL -
New tyres.
Serviced shock absorber and fork.
Brakes bleed, pads changed.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX FLOAT X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 spacer x3Fork
FOX 40 Factory, 203 mm travel
29", Grip2 damper, HSC, LSC, HSR, LSR. Boost (20 x 110 mm), 52 mm offset, 2 spacers.Headset
CANE CREEK 40 Series
Alloy cups, sealed bearingsStem
Truvativ Descendant
40 mm extension, direct mount, 35 mmHandlebar
Truvativ Descendant
35 mm, 780 mm width, 25 mm rise, Alloy 6061Grips
ODI Vans Gum
Soft compound, double clamp, blackBrakes
TRP DH-R Evo Silver, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM X01 DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM X01 DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
SRAM X01 DH Carbon, 165 mm crank arms, DUB
Chainring: SRAM X01 DH X-Sync, 34tChain
SRAM 11s
BlackCassette
SRAM 11s
BlackRims
DT Swiss FR1950
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
DT Swiss 240
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackTyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29"x2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075Saddle
TITLE MS1
Weight
18,1 kg / 39,9 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
NO
Colour
Team Cloud
Shiny FinishAccessories
Chainstay protector, seatsaty protector, fork bumpers, downtube protector, roller cover, tubeless valves, fork fender specific Fox 40
*Please note that bike specs are subject to change without prior notice.
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Downhill Racing
-
Frame material
AL 6066 T4, T6
-
Frame weight
5,3 kg / 11.68 lb
-
Rear travel
220mm
-
Shock length/stroke
250x75mm
-
Recommended SAG
20-25% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
30x8mm / 30x8mm
-
Recommended/max. fork height
612mm / 620mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
133mm
-
Bottom bracket type
Press Fit BB 107mm
-
Chain guide
ISCG 05 lower - Custom upper idler guide
-
Chain line
56,5
-
Rear Hub dimension
15 x12mm
-
Rear Axle dimension
Maxle standard, 200mm, M12, P1.0mm
-
UDH hanger
No
-
shock anchor adjustment
4 positions
-
Rear Wheel Base Length adjustment
3 positions
-
Rear triangle stiffness adjustment
3 thickness
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
