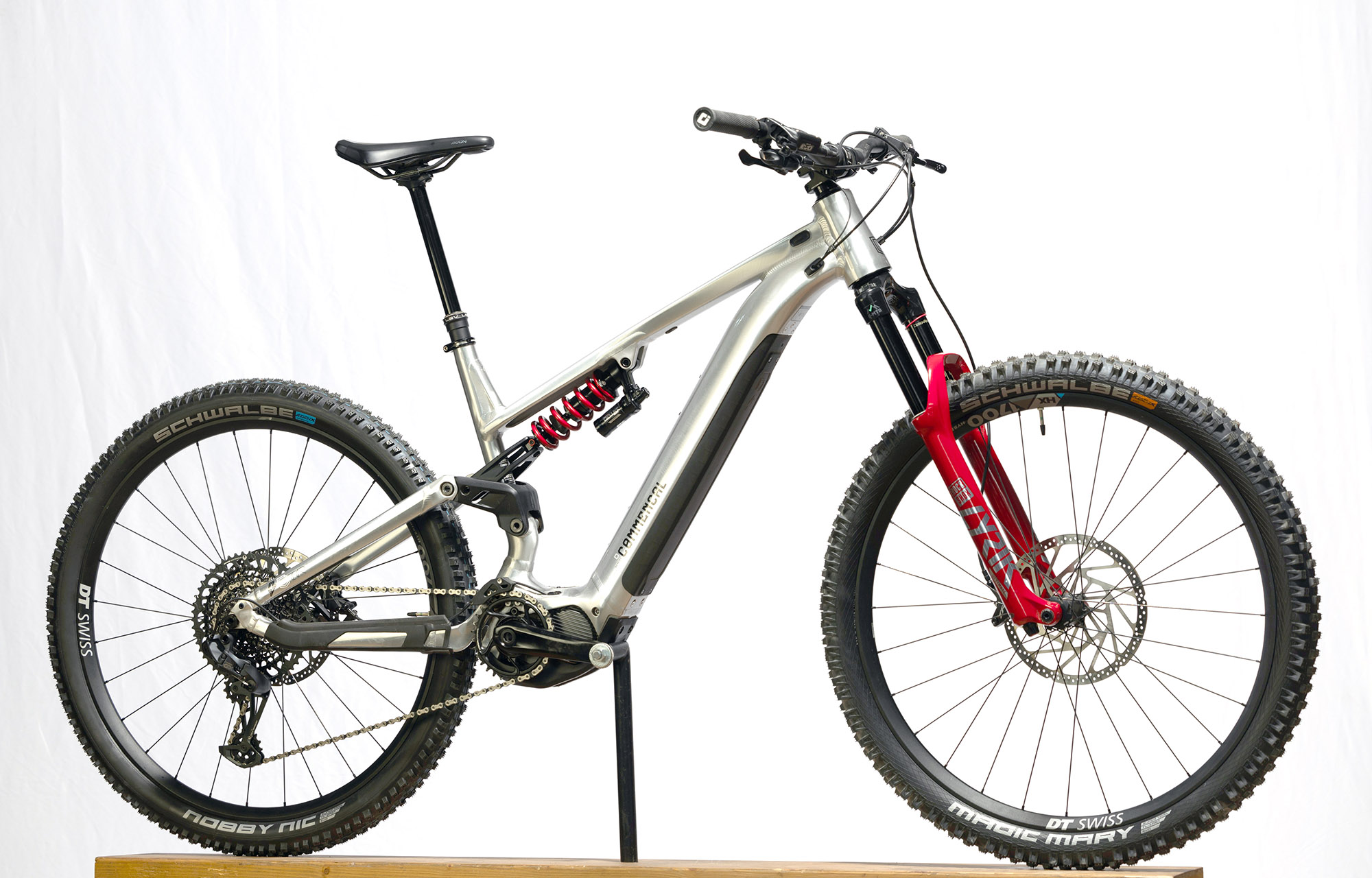

COMMENCAL META POWER TR SHIMANO RACE BRUSHED (XL) 147KM
- Start
- DESCRIPTION
- TECHNICAL INFO
- SPECIFICATIONS
- SIZES
- GEOMETRY
- SPECS
- TECHNICAL SPECIFICATIONS
- Size Chart
- Video
The bike has been ridden and shows signs of wear, scratches and paint chips, mainly on the chainstay, top tube and derailleur.
However, it should be noted that these cosmetic defects in no way affect its performance or smooth operation.
- THE WORKSHOP NOTE -
-As good as new !
-ODO 147KM
Please note that this bike is guaranteed as new!
Enjoy!
Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.
Bicycle type
E-BIKE TRAIL 29''
Frame material
AL-6066 T4, T6
Frame weight
4,1 kg / 9.03 lb - With plastic accessories
Rear travel
140 mm
Shock length/stroke
210 x 55 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / NOTHING
Recommended/max. fork height
566 mm / 576 mm
Headset dimension
Tapered
Headset type
ZS56 / ZS66
Maximum tyre dimension (etrto)
65 mm - 622
Disc brake standard
PM160
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
SHIMANO E-BIKE
ISCG
Yes (SHIMANO Standard)
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle
Frame
META POWER TR, 140 mm
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsMotor
SHIMANO DU-EP800
Max. torque: 85N.m, 250WBattery
SHIMANO BT-E8036
630WhDisplay
SHIMANO SC-EM800
LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)Shock
ROCKSHOX Super Deluxe Coil Ultimate
210 x 55 mm, LSC, rebound, 2-position compression (open/firm). Spring rate 350 LBS on S and M / 400 LBS on L / 450 LBS on XLFork
ROCKSHOX Lyrik Ultimate, 150 mm travel
29", Charger 2.1 RC2 damper, Debonair, LSC, HSC, rebound, Boost (15 x 110 mm), 42 mm offset, 2 TokensHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 220 mm, 2.3 mm thicknessShifters
SRAM GX Eagle
12s, Single ClickChain guide
RIDE ALPHA EP8
32-34tREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SHIMANO
Crankset
E13 E*Spec Plus EP8 160 mm
Chainring : E13 E*Spec Plus 32t, Narrow-Wide, direct mountChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
Rear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 12 x 148 mm, sealed bearings, 24t, Sram XD, e-bike specific - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
Rear: 29" x 2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X3
145 mm width, Kium Mobius railsWeight
24,8 kg / 54.67 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerancesPedals included
Yes
Colour
Brushed
Shiny FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
META POWER bikes are delivered with SHIMANO Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standardsBattery recycling
Partnership with SHIMANO
In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling
