COMMENCAL META HT 24 POWER KESWICK GREEN image number null

from 8/9 years old
130-145cm

ALL TERRAIN

120mm

24" / 24"

55Nm

400Wh

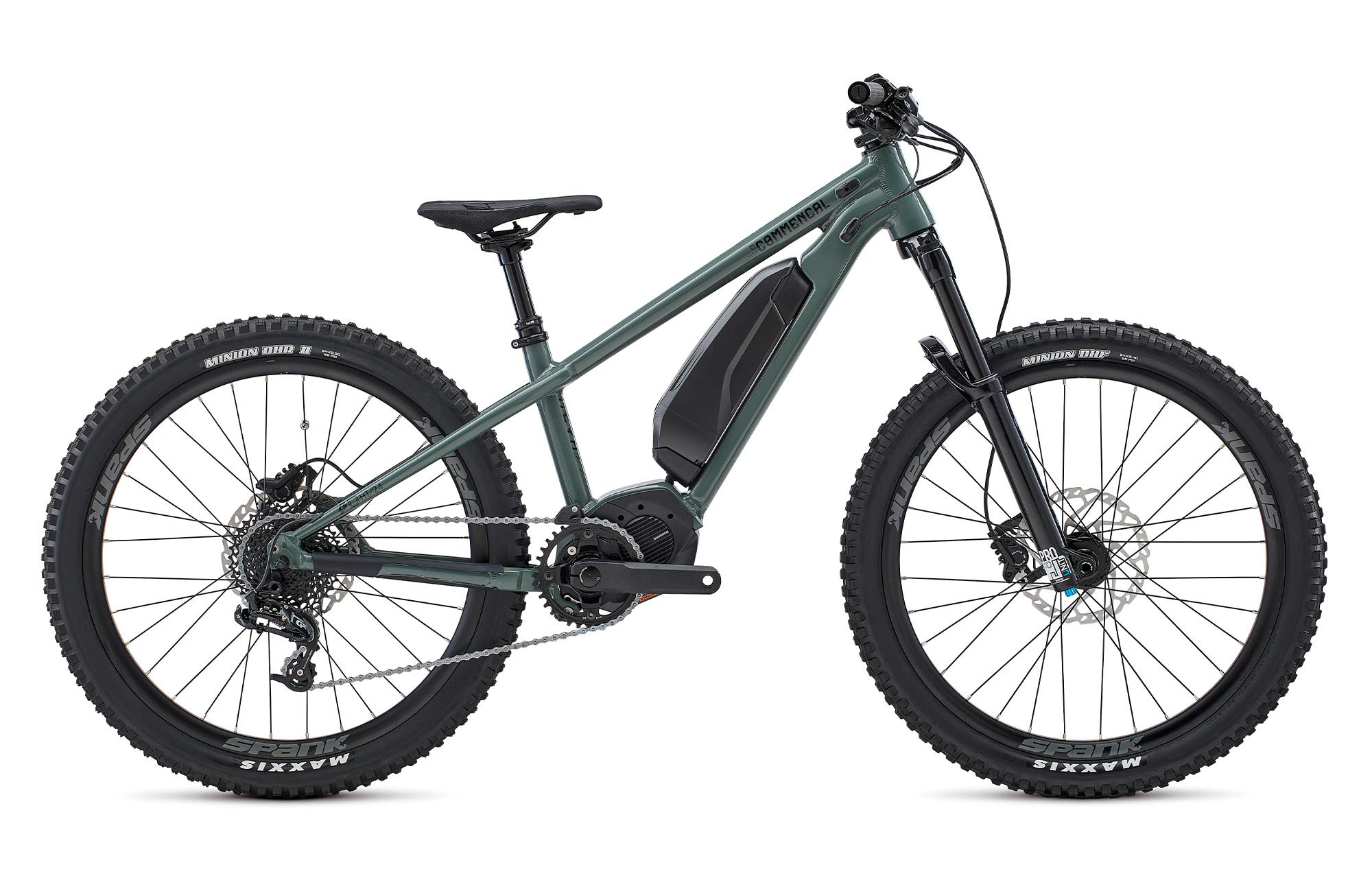

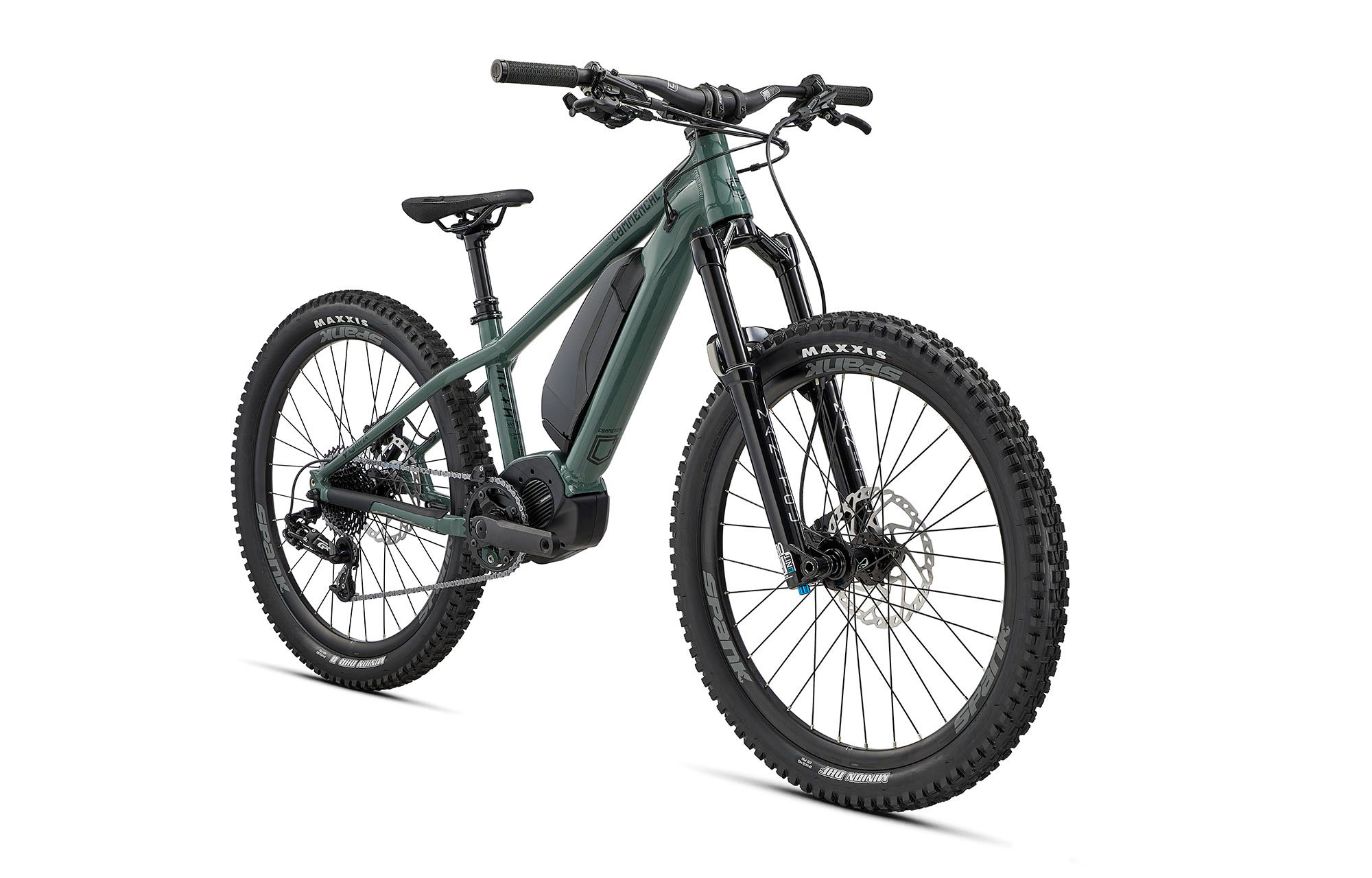

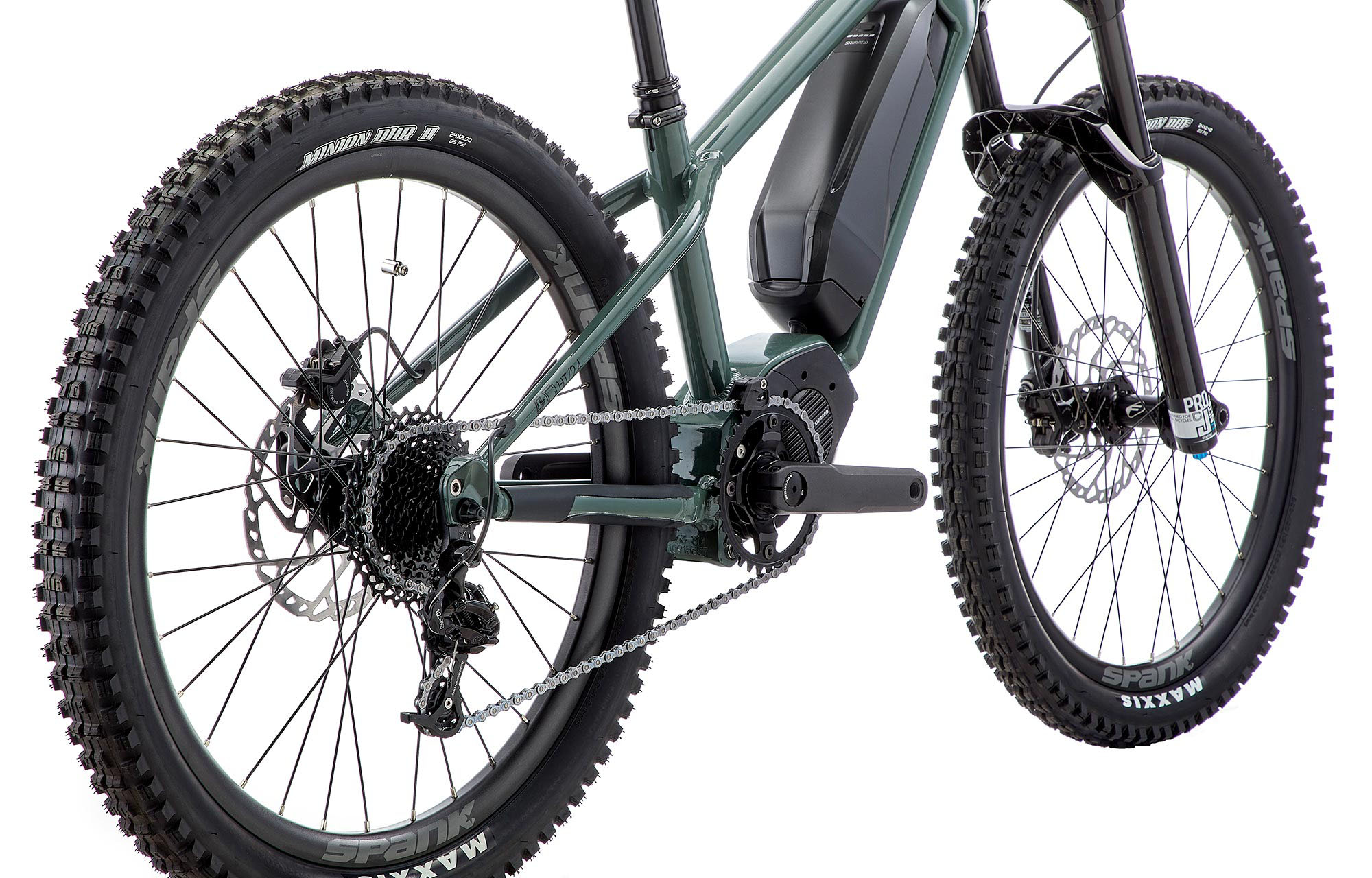

COMMENCAL META HT 24 POWER KESWICK GREEN

The META HT 24 POWER is perfect for your child to accompany you on your outings. The SHIMANO E7000 motor system allows you to climb all slopes.

from 8/9 years old
130-145cm

ALL TERRAIN

120mm

24" / 24"

55Nm

400Wh

LEARN MORE ABOUT THE META POWER HT 24

NZ$ 5,130.43 excl. GST NZ$ 4,260.86 excl. GST -17%

id/sku : 22METAHTPW24GN

SIZE GUIDE

Quantity

Availability: In stock null

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

COMMENCAL META HT 24 POWER KESWICK GREEN image cover number large 0

COMMENCAL META HT 24 POWER KESWICK GREEN image cover number large 1

COMMENCAL META HT 24 POWER KESWICK GREEN image cover number large 2

specifications

Frame
META HT 24 POWER
24", Alloy 6061, triple butted tubes, T4, T6
Motor
SHIMANO DU-E7000
250 W, 60 Nm
Battery
SHIMANO BT-E8014
418 Wh
Display
SHIMANO SC-E7000
Black & White display featuring: Clock, Assist mode display, Assist on/off, Walk mode, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Odometer, Estimated range, Cadence (rpm), Maintenance alert, Bluetooth LE connection status
Fork
MANITOU Machete Junit Pro, 120 mm travel
24'', kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
PROTAPER Junit Riser bar
31,8 mm, 680 mm width, 25 mm rise
Grips
PROTAPER Junit Intermediate
Kids specific 27 mm diameter
Brakes
SHIMANO MT501, 2 pistons, I-Spec compatible, resin pads
Rotors: SHIMANO SM-RT66 180 mm, 6-bolt
Shifters
SRAM GX
10s
Chain guide
RIDE ALPHA E8000
34t
REAR DERAILLEUR
SRAM GX
10s, short cage
Bottom bracket
SHIMANO
Crankset
RIDE ALPHA Kids 150 mm crank arms
Chainring : SHIMANO SM-CRE80 34 T
Chain
KMC e10
10s, EPT Anti-rust
Cassette
SRAM PG 1020
11-36t
Rims
SPANK Spoon 28
24'', 32h, 23 mm inner width
Hubs
Rear: FORMULA RX-26 - Front: FORMULA DC-711
Rear: 32h, 9 x 135 mm (for QR axle), sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings
Spokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, black
Tyres
Rear: MAXXIS MINION DHR II 24 - Front: MAXXIS MINION DHF 24
Rear: 24'' x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 24'' x 2.4", Super Trail, Addix Soft, Tubeless Easy
Seat post
KS Rage-I
31,6 mm, 75 mm travel, SouthPaw alloy remote
Saddle
SDG Fly Jr
122 mm width, Kids specific, reinforced sides
Weight
18,8 kg / 41 lbs
Pedals included
Yes
Colour
Keswick Green
Shiny Finish
Accessories
RIDE ALPHA medium pedals, chainstay protector, seatstay protector, battery charger, user manual

Bike specifications are subject to change without notice.

Technical informations

Bicycle type
Kids Hardtail E bike
Frame material
AL 6061 T4, T6
Frame weight
-
Rear travel
-
Shock length/stroke
-
Piggy back shock compatible
-
Shock bushings
-
Recommended/max. fork height
470 mm / 490 mm
Headset dimension
Tapered 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
63 mm
Disc brake standard
International standard
Rear rotor max. size
180 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Shimano
ISCG
Shimano Steps specific
Rear hub compatibility
135 x 9 mm

Bicycle type

Kids E-bike - All Terrain
Frame material

AL 6061 T4, T6
Frame weight

NC
Recommended/max. fork height

470mm / 490mm
Headset type

ZS44 / ZS56
ICR compatible

No
Wheels size

24’’ - 24’’
Max. rear tyre dimension - ETRTO

62mm - Ø507mm
rear brake mounting type

IS 180mm
Rear brake rotor max. size

180mm
Seatpost/seat clamp diameter

31,6mm / 34,9mm
Seatpost insertion max.

180mm
Motor Crankarms interface

SHIMANO E7000
Chain guide

SHIMANO e-guide
Chain line

50
Rear Hub dimension

135x9mm
Rear Axle dimension

QR
UDH hanger

No

Geometry

SIZE

1 - SEAT TUBE LENGTH

310

2 - SEAT TUBE ANGLE

74,5°

3 - HEAD TUBE ANGLE

67°

4 - HEAD TUBE LENGTH

115

5 - WHEEL BASE

1027

6 - TOP TUBE LENGTH

519

7 - CHAIN STAY LENGTH

390

8 - BOTTOM BRACKET HEIGHT

-15

9 - FORK LENGTH

470

10 - FORK OFFSET

11 - REACH

370

12 - STACK

543

13 - STANDOVER HEIGHT

673

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

WHICH BIKE TO CHOOSE FOR YOUR CHILD?

Whatever your child's age or build, with our KIDS range, you're guaranteed to choose a mountain bike specifically designed for them. Here, the geometries, equipment and wheel sizes are conceived as a whole, to enable children to become experienced riders.
