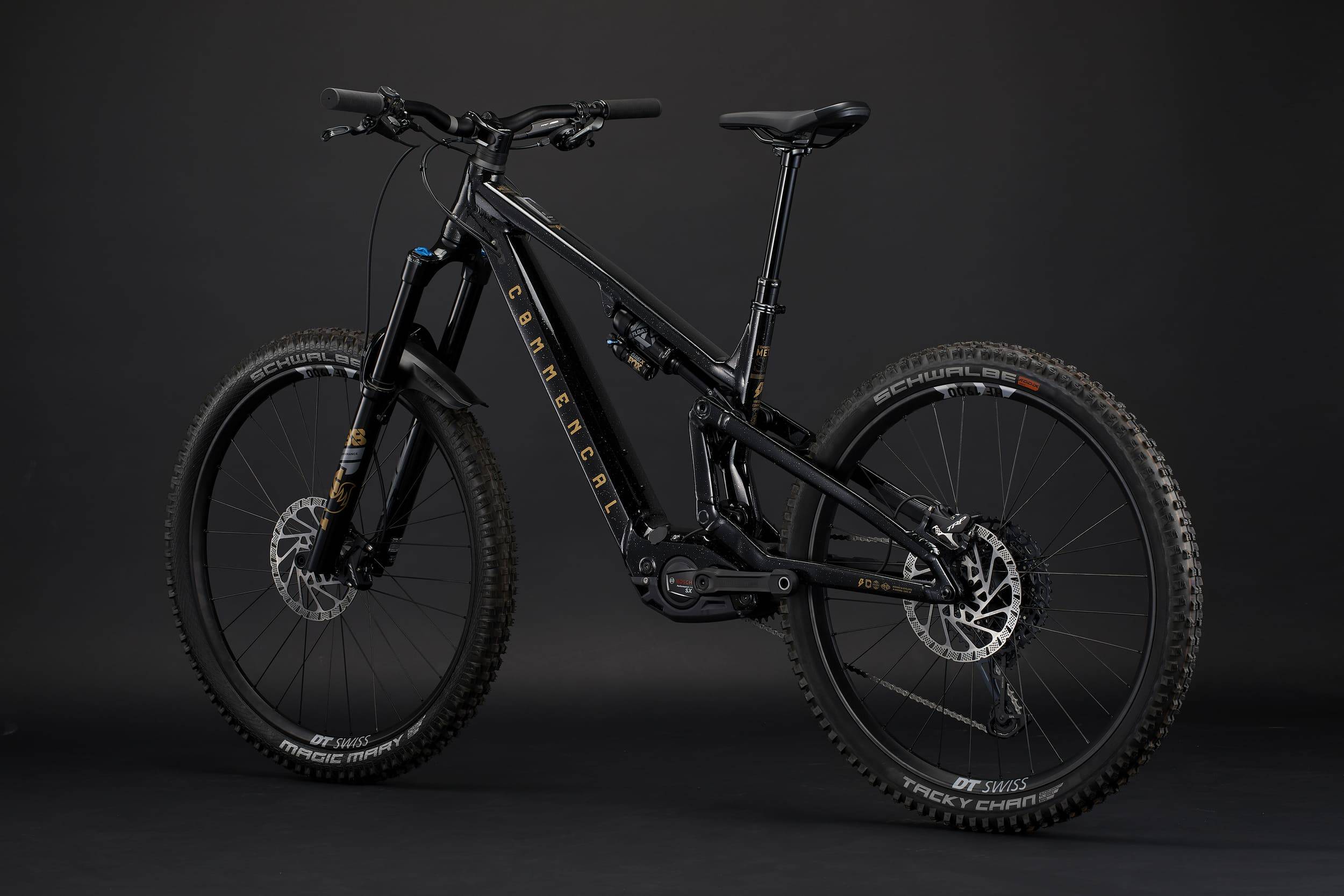

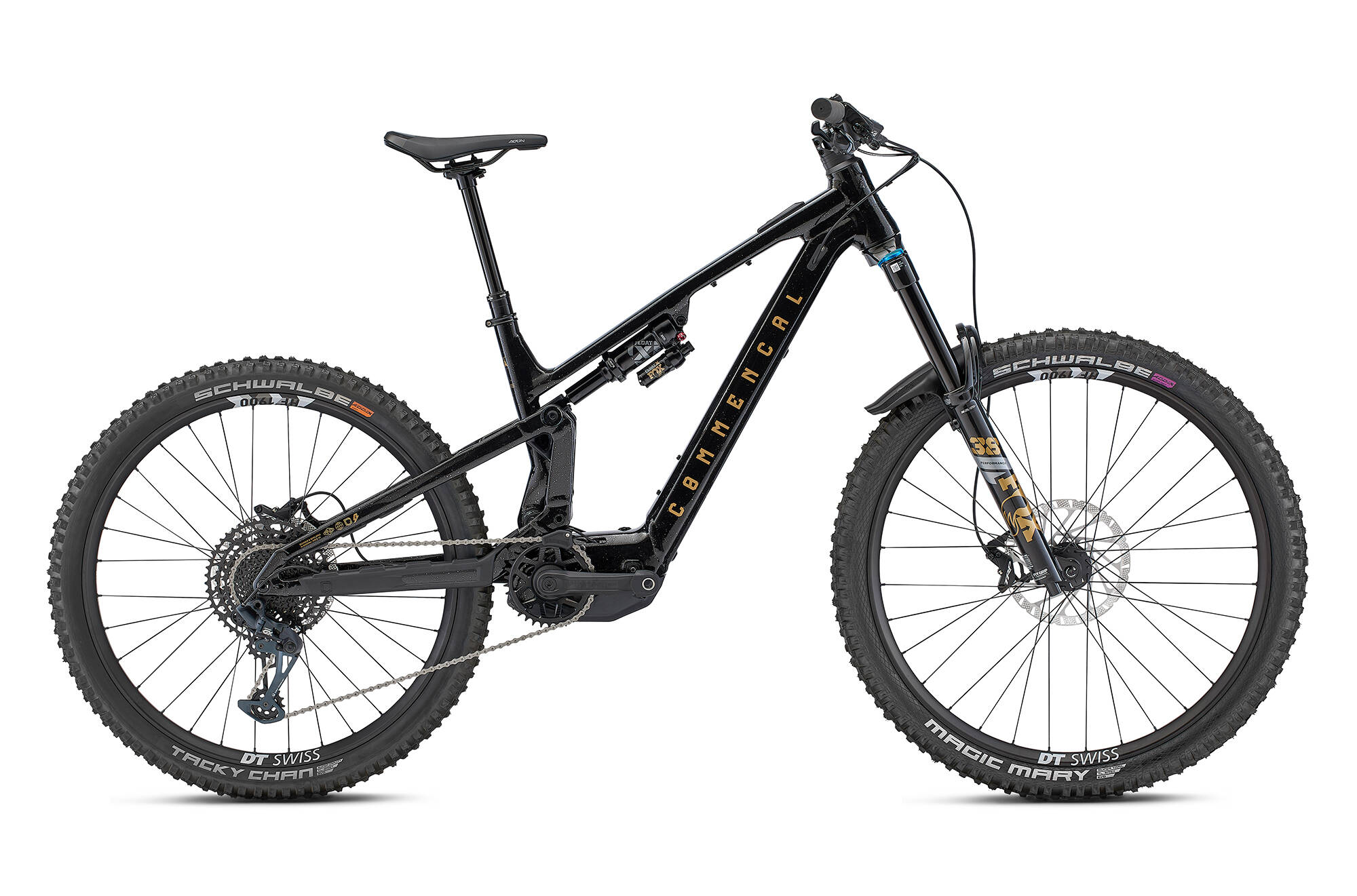

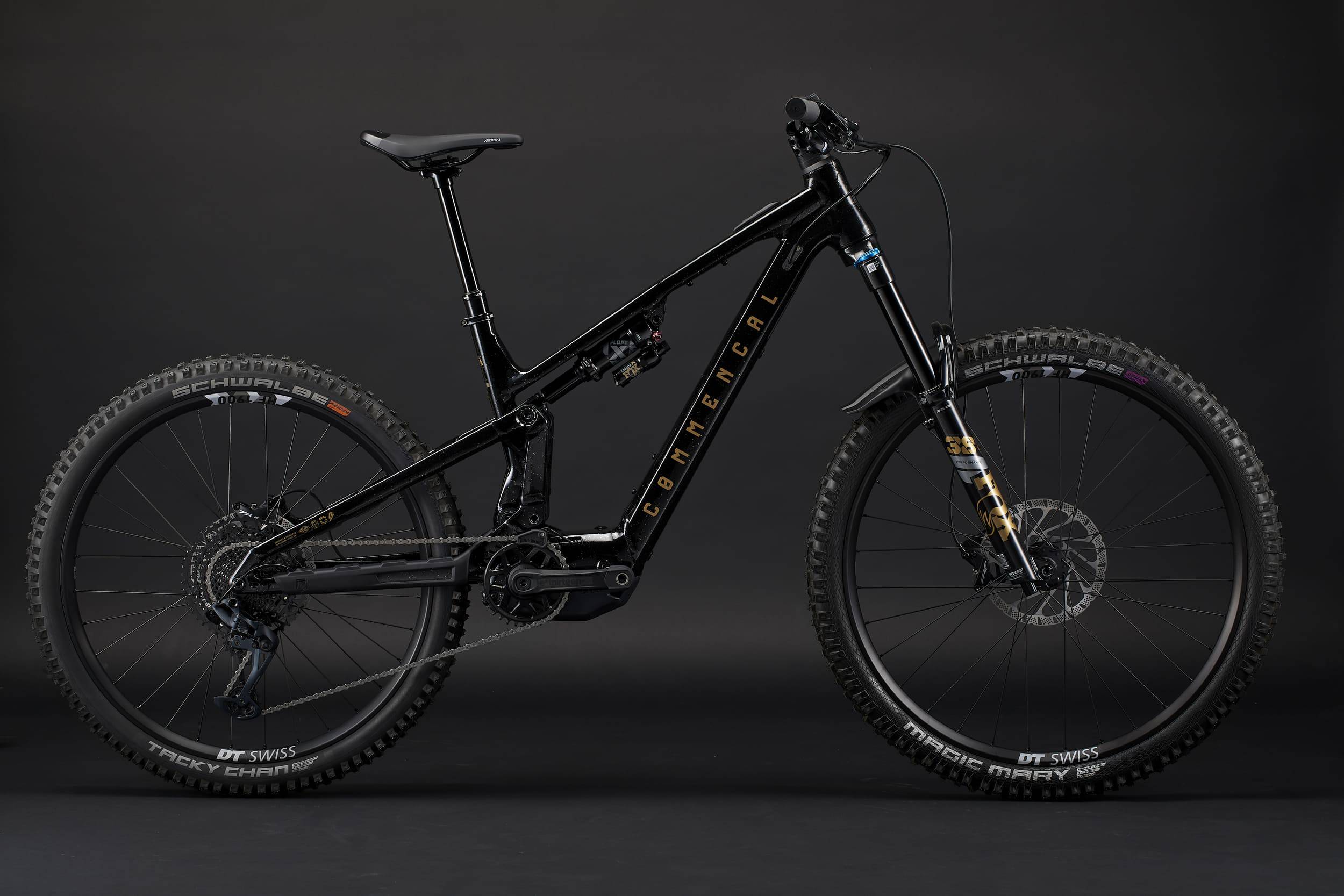

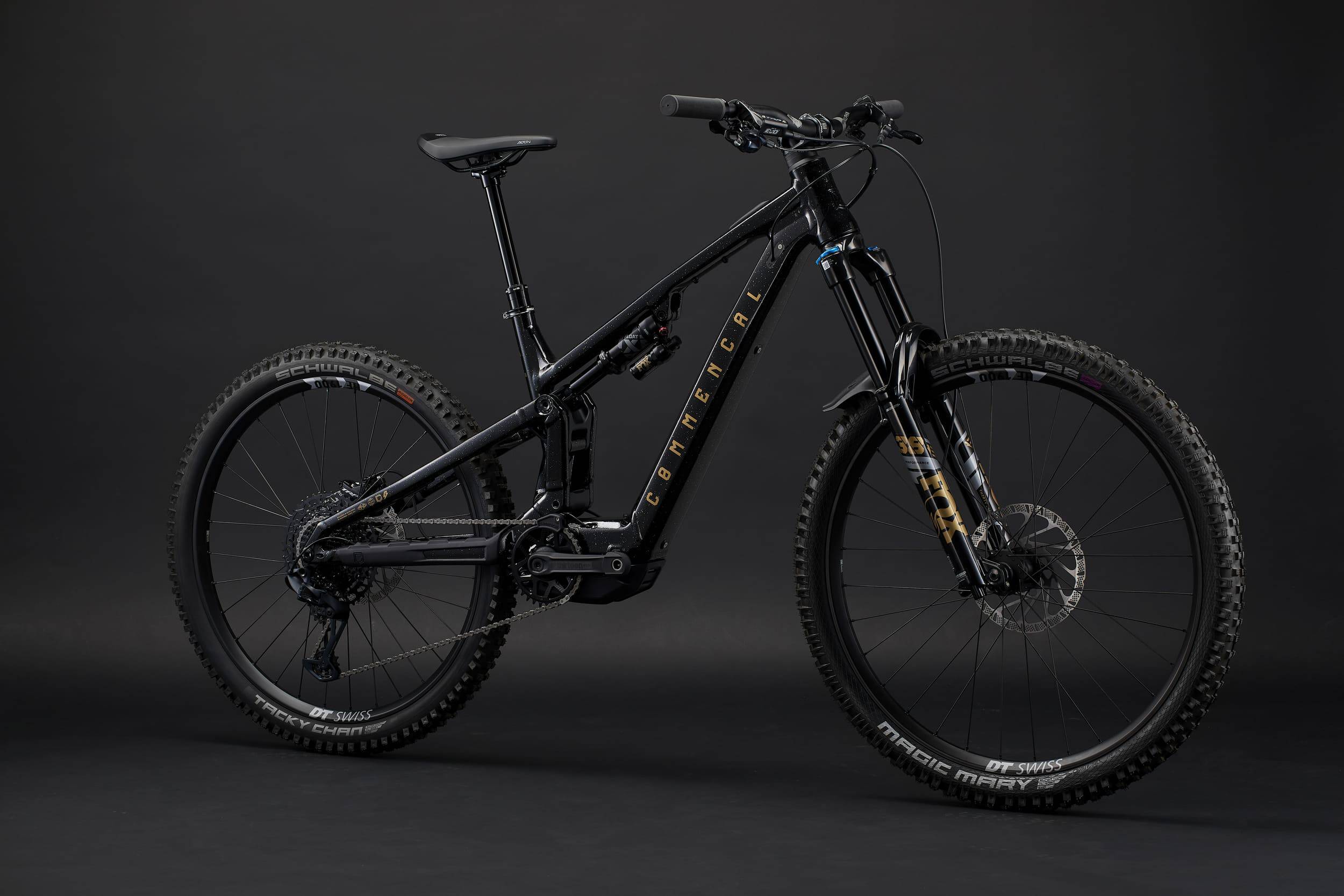

COMMENCAL META POWER SX 400 ESSENTIAL 2025
The META POWER SX 400 brings maximum grip and confidence to tackle any slope. From your favourite DH track to the techiest natural trails, it's the eBike for riders who want the same feeling as riding their DH bike.
ENDURO
DOWNHILL
ENDURO
DOWNHILL
170mm
170mm
170mm
170mm
29" / 27.5"
29" / 27.5"
55Nm
55Nm
400Wh
+ 250Wh
400Wh
+ 250Wh
590ml
590ml
BOSCH POWERMORE 250WH RANGE EXTENDER
The BOSCH PowerMore 250Wh additional battery allows you to increase the range on our BOSCH motorized models. It guarantees you perfect equipment for long enduro rides.
BOSCH POWERMORE 250WH RANGE EXTENDER
The BOSCH PowerMore 250Wh additional battery allows you to increase the range on our BOSCH motorized models. It guarantees you perfect equipment for long enduro rides.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

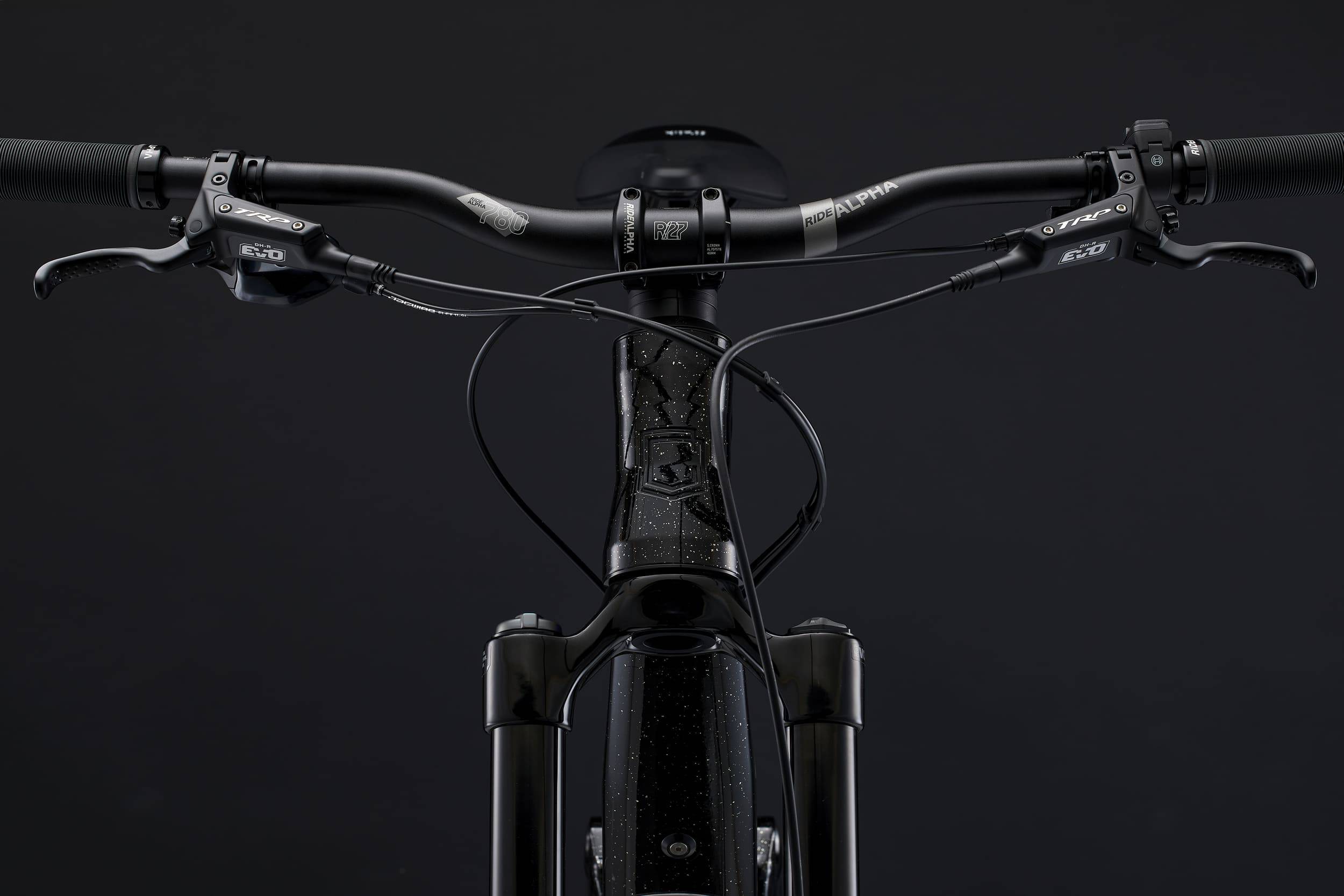

MOTO STYLE BRAKING: Front brake with right lever / Rear brake with left lever
CHECK OUT THE META POWER SX 400
The META POWER SX 400 is built for ultimate confidence and grip on New Zealand's diverse terrain. Whether you're conquering bike parks or navigating technical trails, this e-bike is designed to deliver the downhill-like performance you crave.
COMMENCAL META POWER SX 400 ESSENTIAL GLITTERY BLACK
The ESSENTIAL model is all about keeping things simple and reliable. With components engineered for durability and function, it's perfect for long, demanding rides.

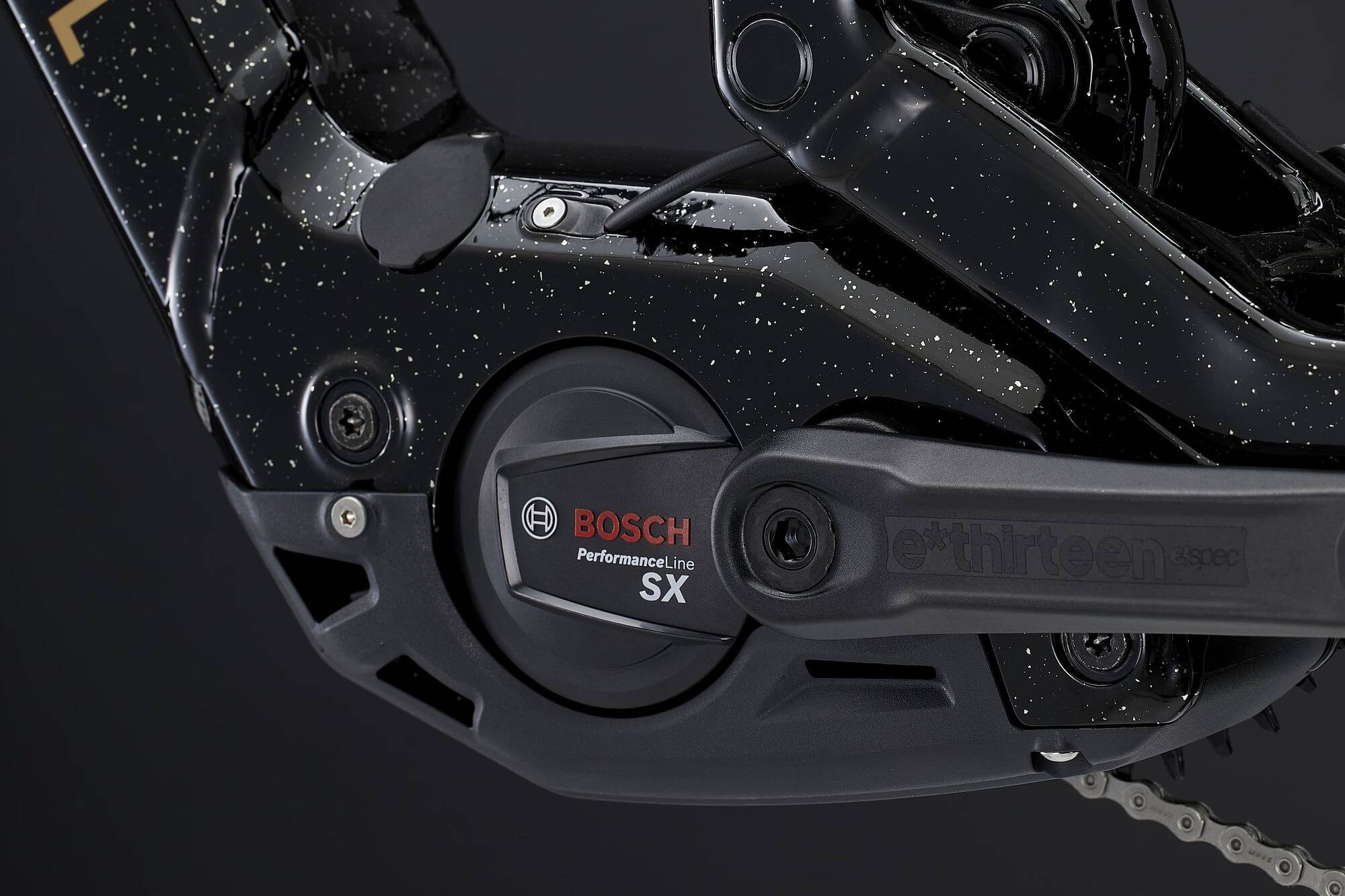

The BOSCH Performance Line SX motor is a key feature, offering a perfect blend of lightweight downhill power and climbing efficiency, delivering up to 600W of peak power.
The 400Wh battery ensures solid range, and for even longer rides, a 250Wh range extender is available, keeping the weight balanced for better handling.

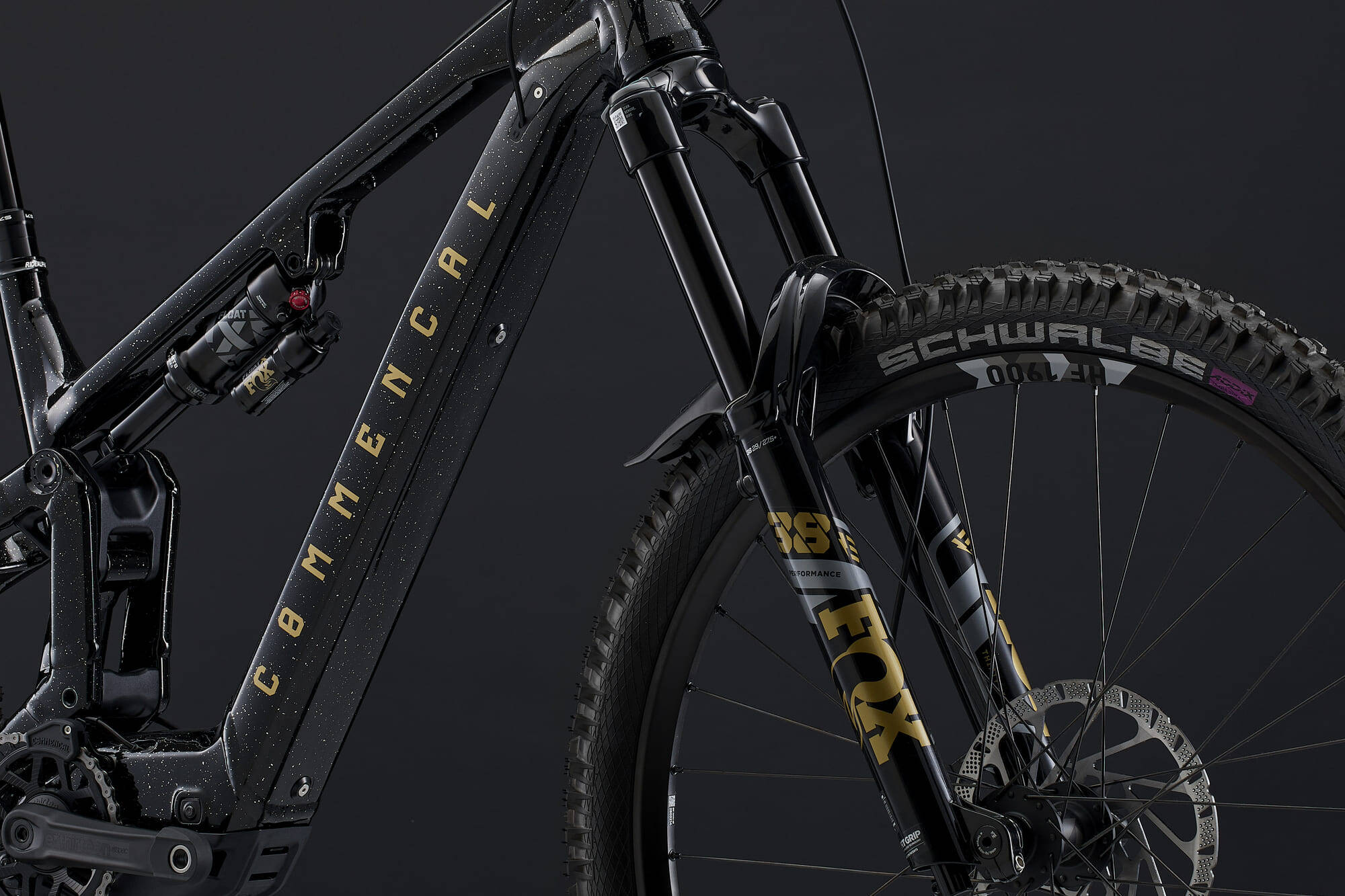

The FOX 38 Performance fork is made for e-bikes, with a precise chassis and GRIP damper cartridge. It’s incredibly easy to adjust while providing smooth, stable performance.

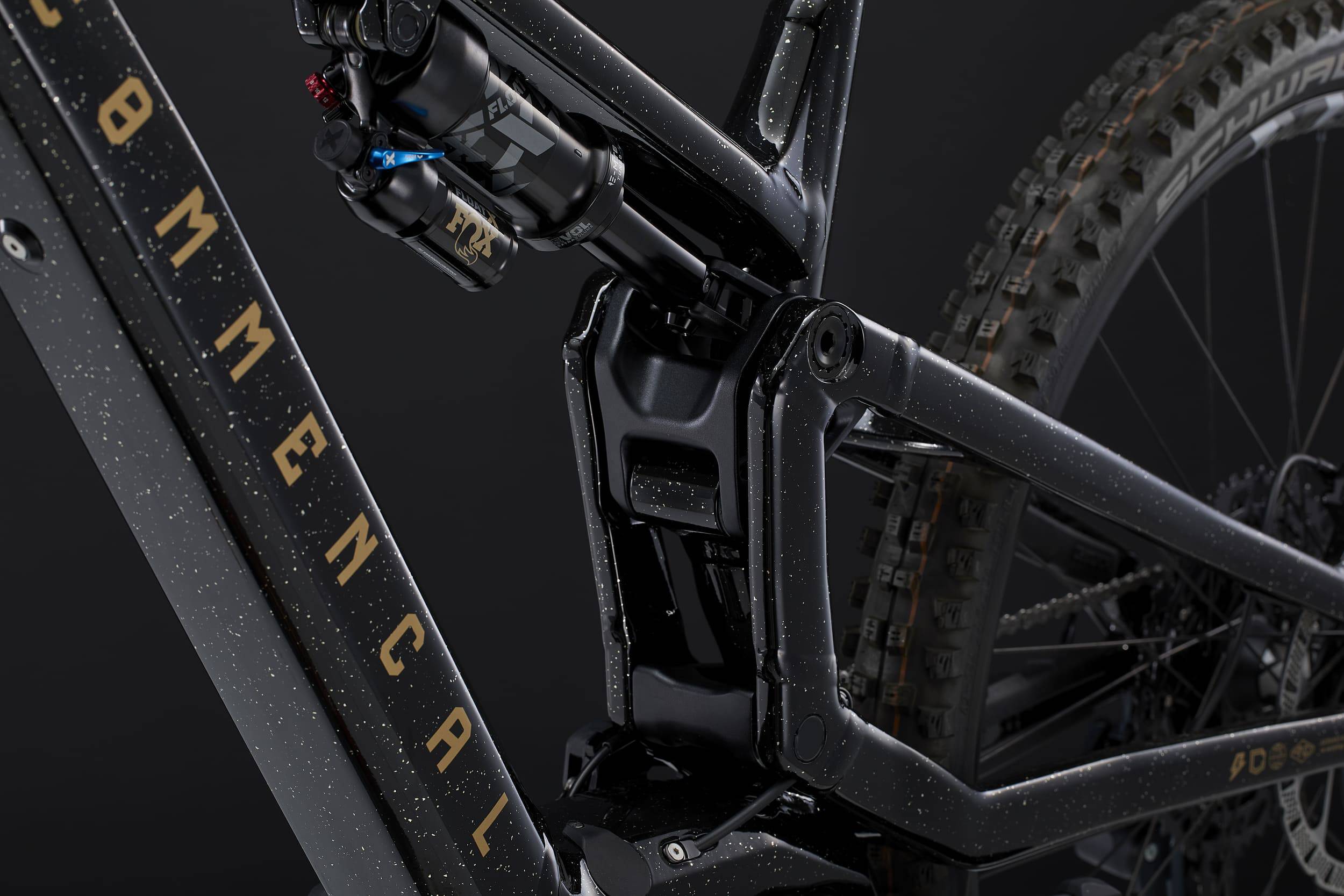

The Float X shock provides excellent grip and comfort, with custom tuning that ensures optimal responsiveness, and the lockout feature makes climbing a breeze.
DT SWISS HF 1900 wheels are built for the rugged demands of e-bike gravity riding. Reinforced with hand-built DT 370 hubs, rims, and spokes, they’re designed to handle the toughest conditions New Zealand can throw at them.

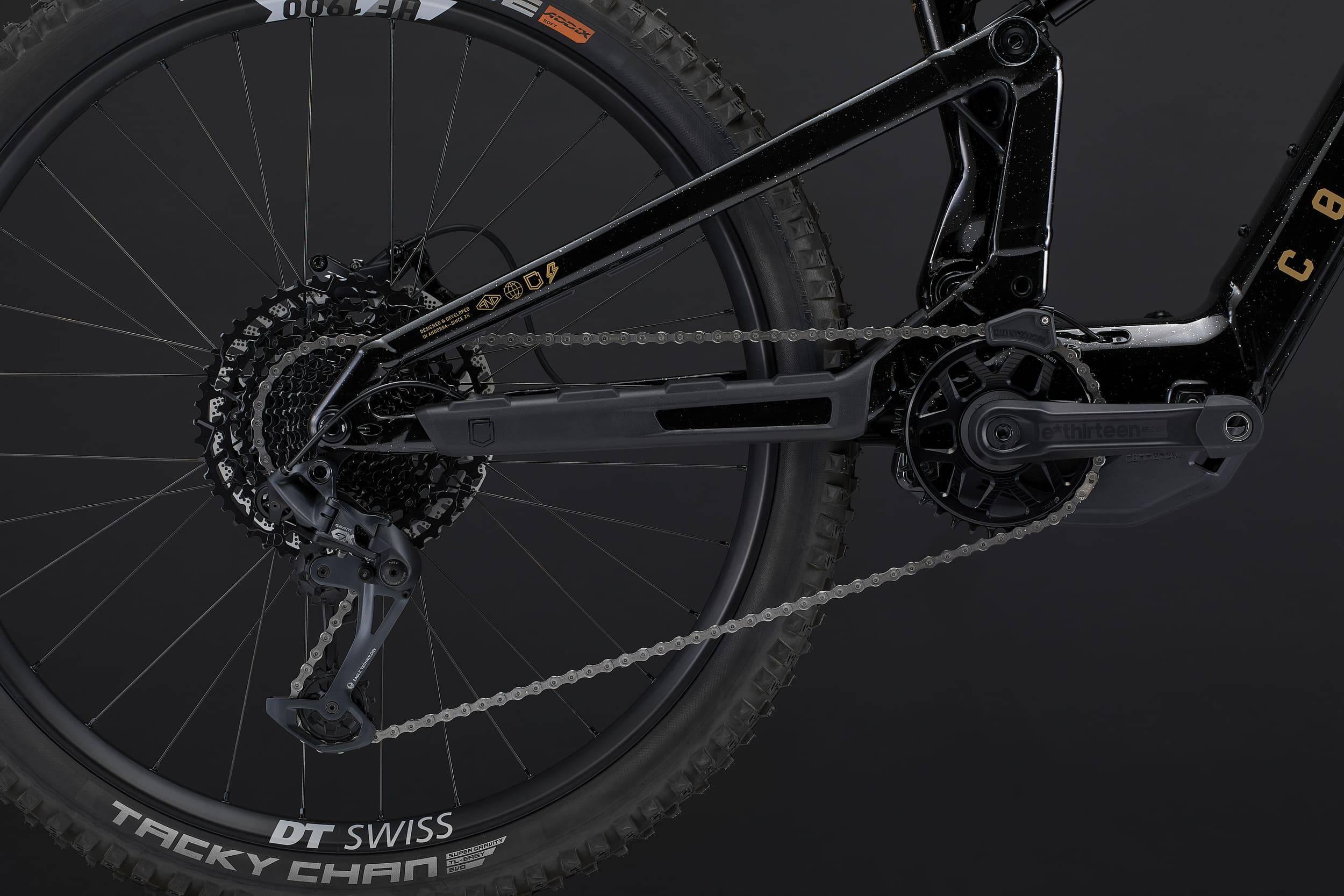

With the SRAM GX Eagle derailleur, offering a 520% gear range, you can confidently tackle long, challenging rides.
And with TRP DH-R Evo brakes featuring 203mm rotors (2.3mm thick), you get reliable, consistent stopping power every time.
*Bike specifications are subject to change without notice.
specifications
specifications
Frame
META POWER SX 400, 170 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu BearingsMotor
BOSCH Performance Line SX
Max. torque: 55 N.m, 250 WBattery
BOSCH Compact Powertube 400
Fully integrated main battery, 400 Wh
BOSCH 4A Battery Charger. Compact size & lightweightDisplay
BOSCH System Controller
ON/OFF switch, assist mode level, battery charge levelShock
FOX Float X Performance
230 x 65 mm, 2-position (open/firm) lever, LSC, rebound, 0.4 spacersFork
FOX 38 Performance E-Bike, 170 mm
29", Fit Grip damper, 3 positions compression, rebound, Boost (15 x 110 mm), 44 mm offset, 3 spacersHeadset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearingsStem
RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar

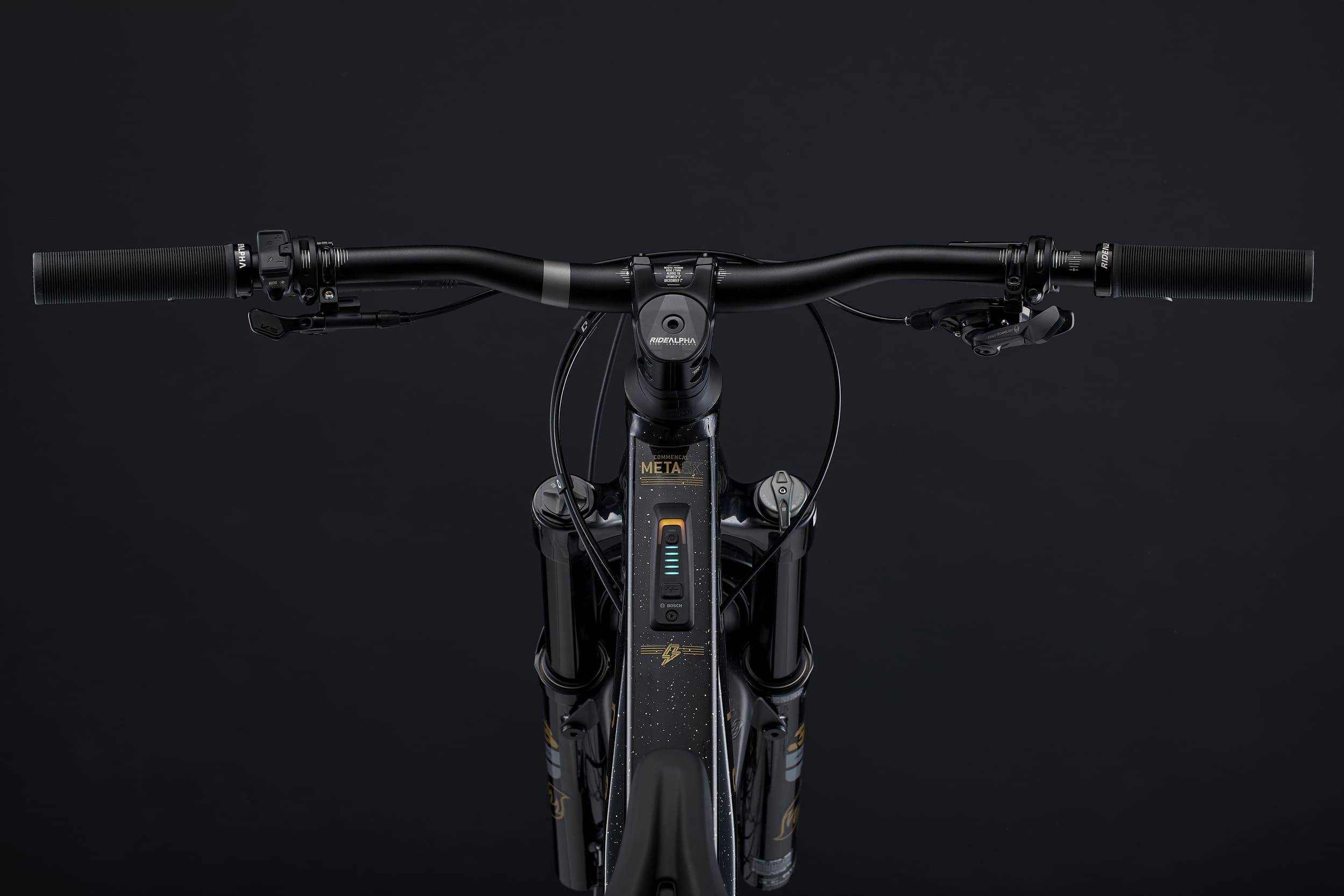

RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RIDE ALPHA Mushroom
Soft compound, single clamp, 132 mm width, blackBrakes
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R2 203 mm, 6-bolt, 2.3 mm width
Motostyle braking: front brake with right lever / rear brake with left leverShifters
SRAM GX
12sChain guide
RIDE ALPHA
32-34tREAR DERAILLEUR
SRAM GX
12sCrankset
E13 Helix Core E*Spec, 155 mm crank arms, BOSCH Gen4
Chainring: E13 Helix Race E*Spec, 34t, direct mount, BOSCH Gen4Chain
SRAM NX
12sCassette
SRAM NX
12s, 11-50tRims
DT SWISS HF1900 Classic
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner widthHubs
DT SWISS 370
Rear: 28h, sealed bearings, 12 x 148 mm, 18t, Sram XD, e-bike specific - Front: 28h, sealed bearings, 15 x 110 mmSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0 mm, double butted, stainless, with ProLock, blackTyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy- Front: 29" x 2.4'', Super Trail, Addix Ultra Soft, Tubeless EasySeat post
KS Rage-I
34.9 mm, 125 mm on S, 170 mm on M and 190 mm on L/XLSaddle
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius railsWeight
22.0 kg / 48.50 lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
CRANKBROTHERS Stamp 1
Colour
Glittery Black
Shiny FinishAccessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 specific fender, FIDLOCK bases, down tube plastic film protector
Battery Recycling
Battery Recycling
PARTNERSHIP WITH BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
BOSCH recommends concluding a contract with a national service provider for returning batteries in each case.
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
E-BIKE ENDURO 29''/27''
Frame material
AL 6061 + AL 6066 - T6
Rear travel
170 mm
Shock length/stroke
230 x 65 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm front
Recommended/max. fork height
588 mm (44 offset) / 598 mm
Headset dimension
Tapered
Headset type
ZS56 / 28,6 - ZS66 / 40
Maximum tyre dimension (etrto)
65 - 584 mm
Disc brake standard
PM200
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BOSCH E-BIKE
ISCG
Yes (BOSCH Standard)
Rear hub compatibility
12 x 148 mm UDH
-
Bicycle type
E-bike - Enduro / Downhill
-
Frame material
AL 6066 T6
-
Frame weight
4,76 kg / 10,49 lb
-
Rear travel
170mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
27-31% / 17-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
Included - 20x10mm
-
Recommended/max. fork height
588mm / 598mm
-
Headset type
ZS56 / ZS66
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 180mm / M : 220mm / L : 240mm / XL : 260mm
-
Motor Crankarms interface
BOSCH SX
-
Chain guide
Custom upper guide
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
yes
META POWER SX 400 or T.E.M.P.O. POWER?
META POWER SX 400 or T.E.M.P.O. POWER?
The T.E.M.P.O. POWER and META POWER SX 400 are designed to bring riding sensations back to the forefront thanks to contained weight, adapted motorization, and ideal weight distribution. Whether DH-oriented Enduro or versatile Trail, here are the strengths of our new platforms.
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
The META POWER SX 400 comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser.
