Technical features

  • Bicycle type

    Enduro / Freeride

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb

  • Rear travel

    155mm / 170mm

  • Shock length/stroke

    230x65mm

  • Recommended SAG

    26-30% / 17-20mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x10mm

  • Recommended/max. fork height

    572mm / 586mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    27.5’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 250mm / M-L-XL : 275mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
418
440
465
2 - SEAT TUBE ANGLE
77,2°
77,2°
77,2°
77,1°
3 - HEAD TUBE ANGLE
64°
64°
64°
64,5°
4 - HEAD TUBE LENGTH
110
115
120
125
5 - WHEELBASE
1216
1238
1265
1292
6 - TOP TUBE LENGTH
586
607
633
666
7 - CHAIN STAY LENGTH
434
434
434
434
8 - BOTTOM BRACKET HEIGHT
-12
-12
-12
-12
9 - FORK LENGTH
572
572
572
572
10 - FORK OFFSET
37
37
37
37
11 - REACH
445
465
490
520
12 - STACK
619
624
628
635

All lengths in millimeters.

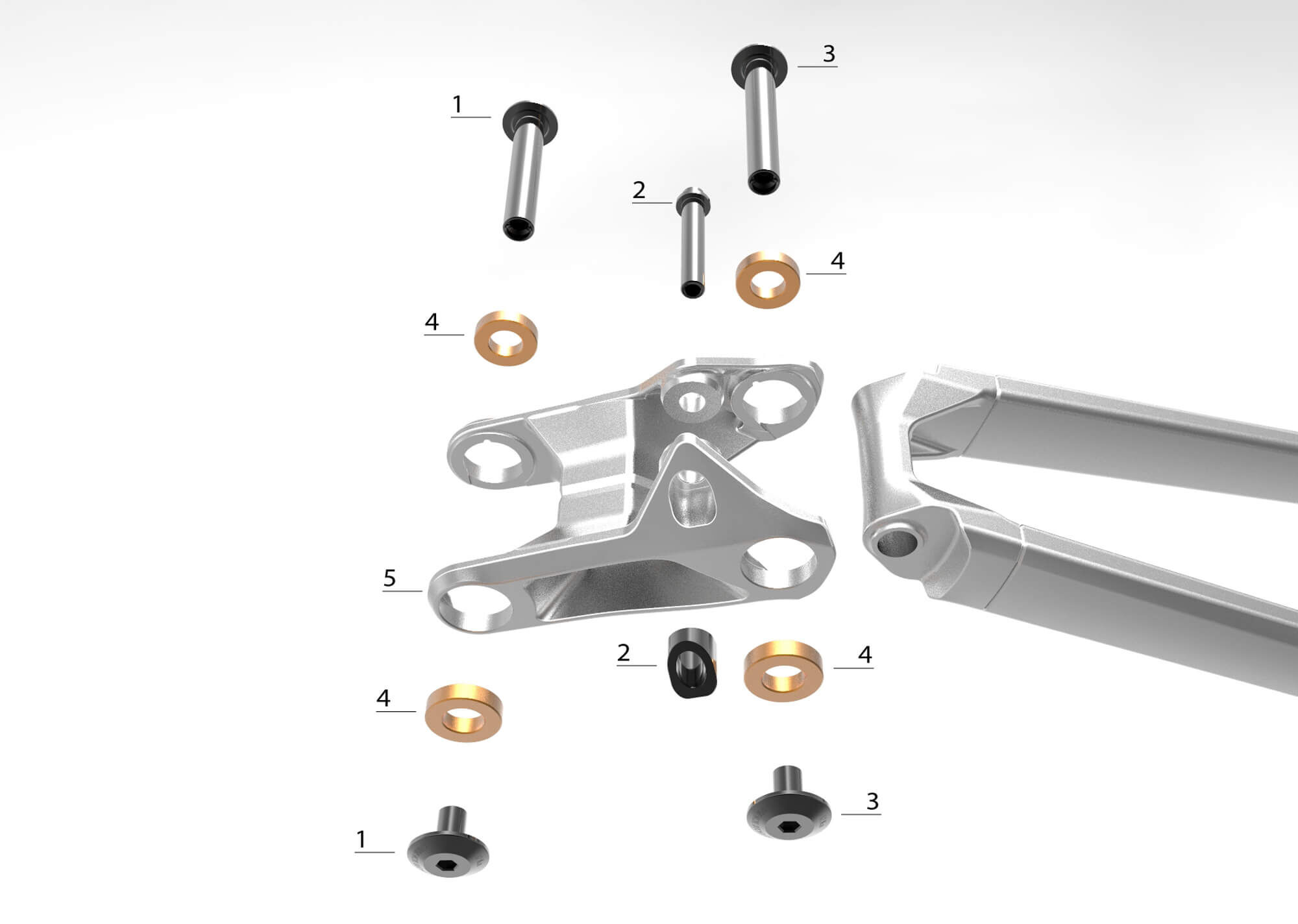

Rocker

1
W20FUV3AXLERKFT
ROCKER / FRONT TRIANGLE AXLE FURIOUS V3
12N.m
2
W21CLHSHINS
SHOCK AXLE INSERT CLASH V2
3
W21CLHAXLERKSS
ROCKER / SEAT STAY AXLE CLASH V2
12 N.m
4
W19EB6902
ENDURO BEARINGS 6902 LLU MAX
15x28x7
5
W21CLHROCKER
ROCKER CLASH V2
2
W18DH29AXLERKSH
Product not available on our site, please contact our teams.
9-12N.m
W21EBFURIOUS
Product not available on our site, please contact our teams.
2x6804 / 6x6902

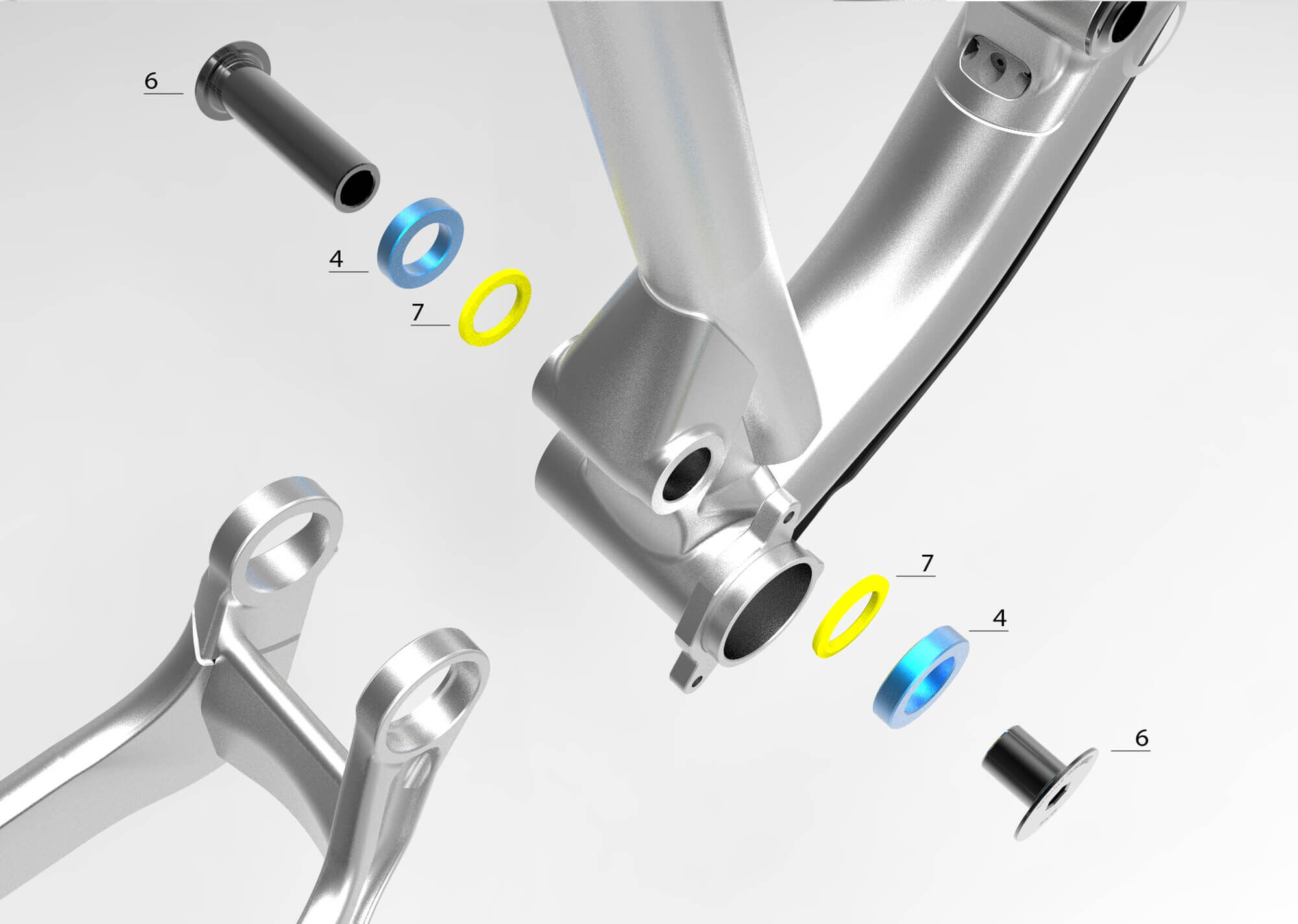

Main pivot

4
W19EB6804
ENDURO BEARINGS 6804 LLU MAX
20x32x7
6
W19M29AXLEMP
MAIN PIVOT AXLE META 29 / CLASH
30-35N.m
7
W19M29WASHERMP
MAIN PIVOT WASHERS META 29 / CLASH
W21EBFURIOUS
Product not available on our site, please contact our teams.
2x6804 / 6x6902

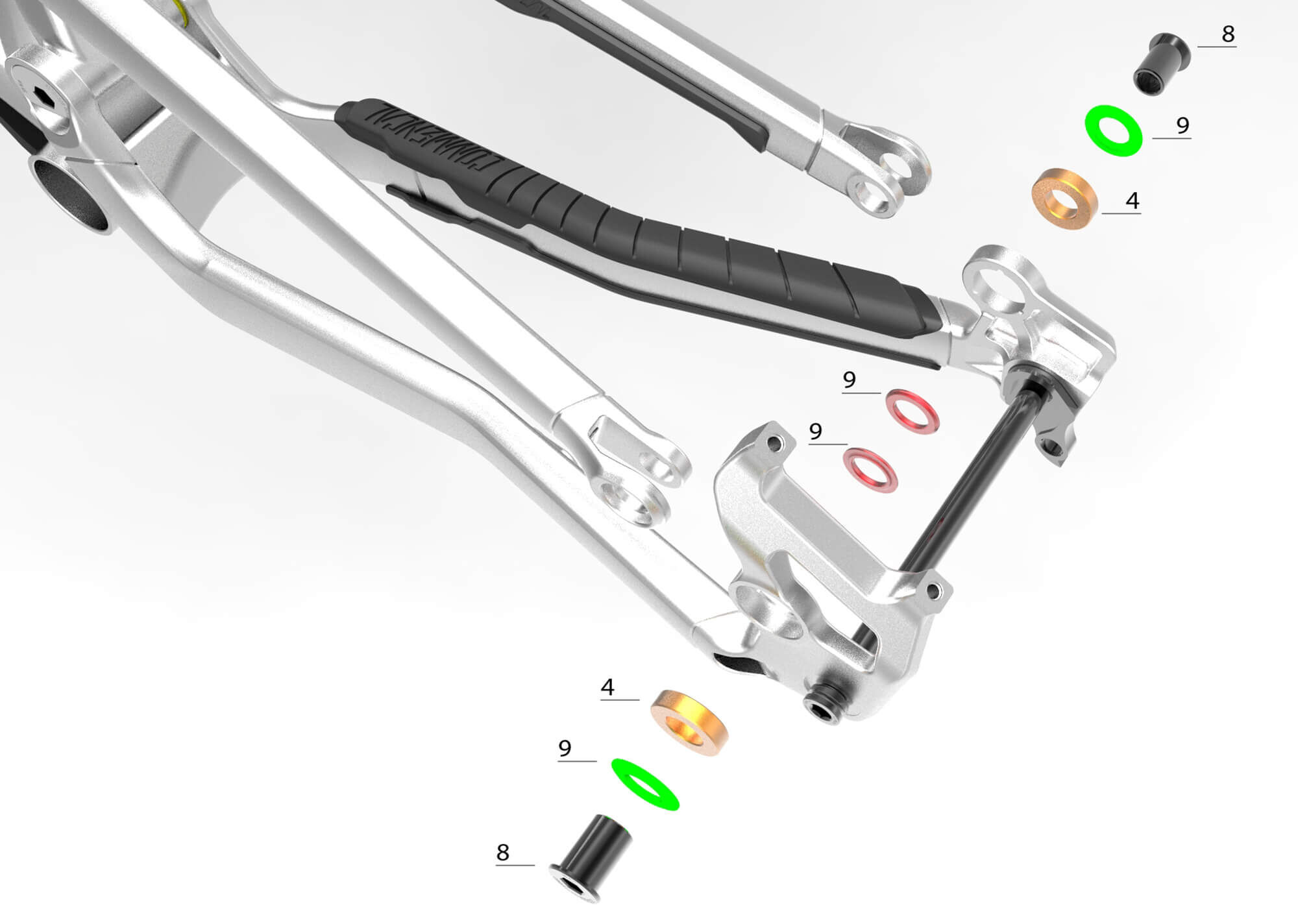

Rear triangle

4
W19EB6902
ENDURO BEARINGS 6902 LLU MAX
15x28x7
8
W20FUV3AXLECS
SEAT STAY AXLE FURIOUS V3
15N.m
9
W20FUV3WASHERCS
CONTACT SYSTEM WASHERS FRS V3 / CLASH V2
W21EBFURIOUS
Product not available on our site, please contact our teams.
2x6804 / 6x6902

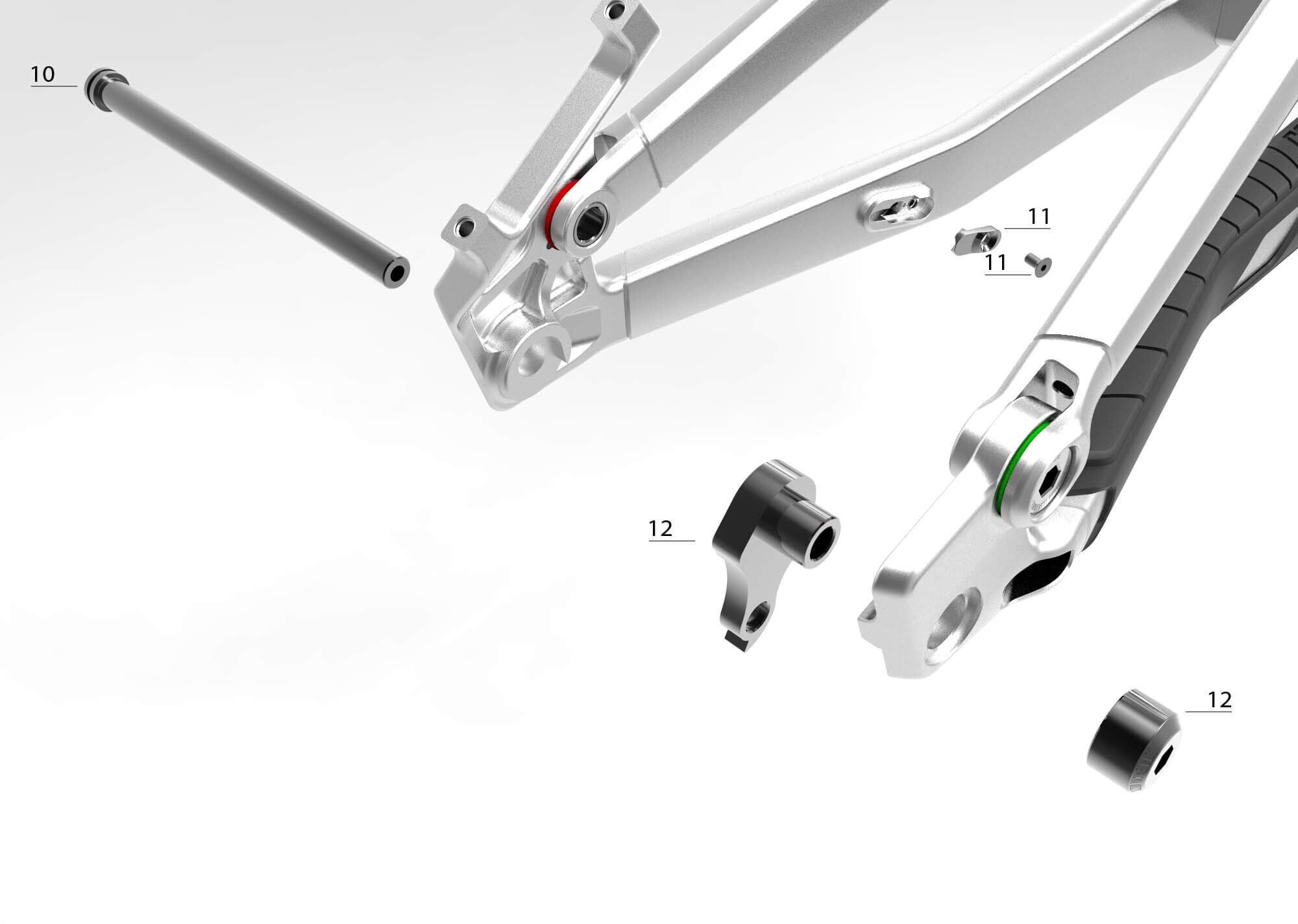

10
W19AXLEWHEELBOOST
REAR WHEEL AXLE - MAXLE BOOST STANDARD
12N.m
11
W19CLHCABLEGUIDEB
META, META POWER, CLASH, FRS, T.E.M.P.O., DHV5 TOP TUBE CABLE GUIDE
3N.m
12
W21CLHRHR
MECH HANGER CLASH V2
10N.m

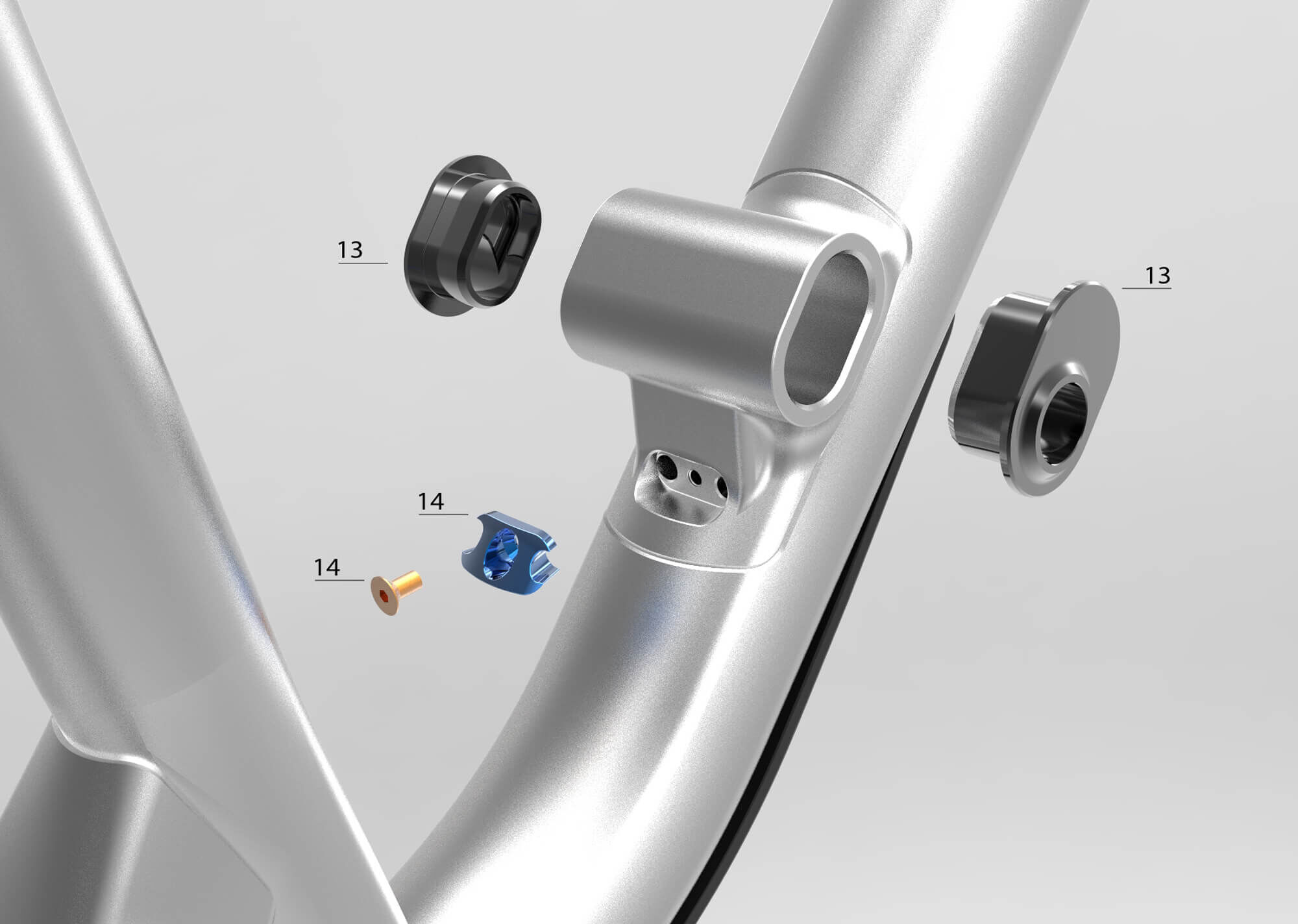

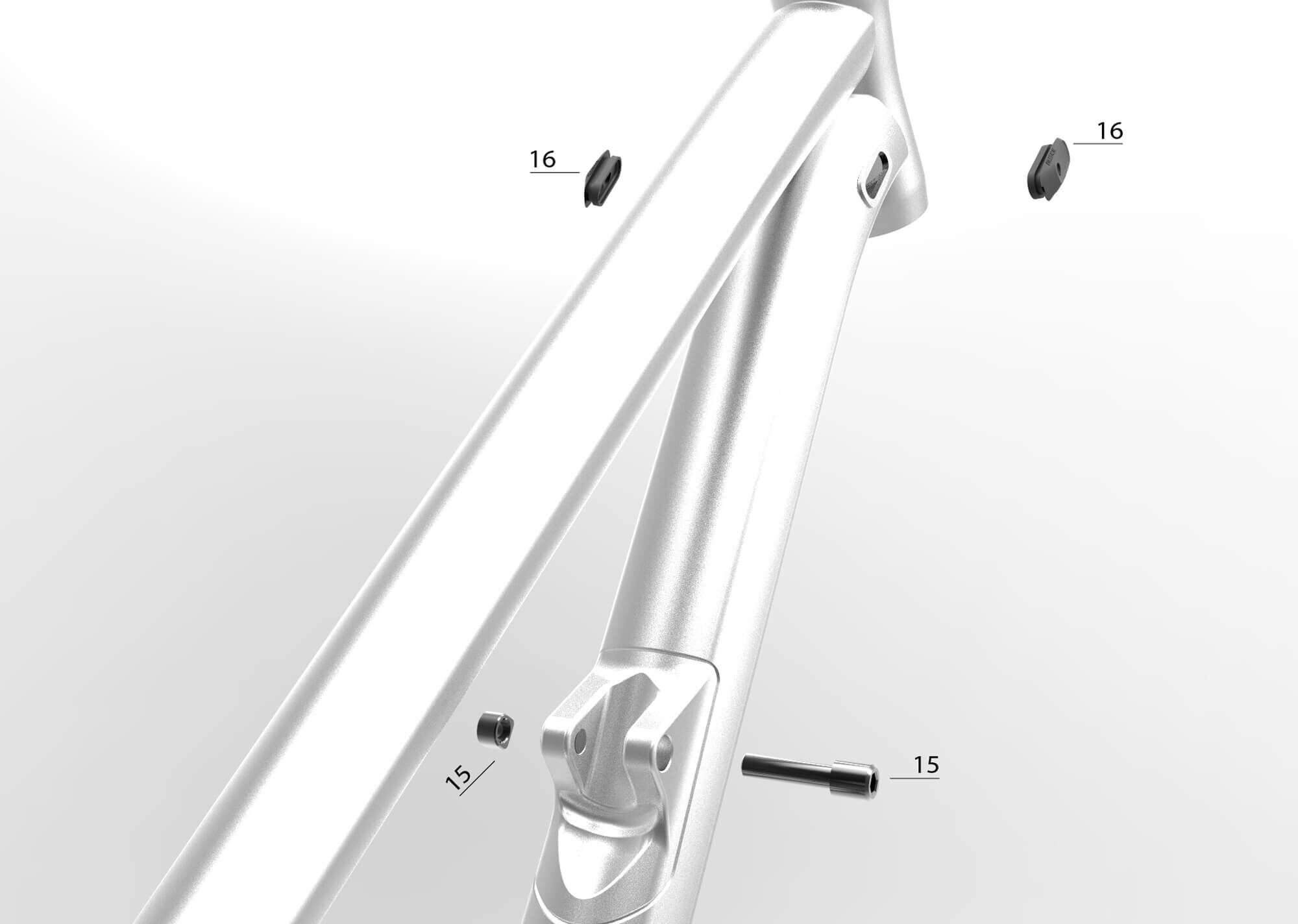

Down tube

13
W21CLHINSRKFT
FLIP CHIP CLASH V2
14
W20FUV3CABLEGUIDET
Product not available on our site, please contact our teams.
3N.m
15
W16DHV4SHOCKAXLE
SHOCK / FRONT TRIANGLE AXLE SUPREME DH /FURIOUS/CLASH
9N.m
16
W18SEAL1H
INTERNAL ROUTING SEAL - 1 HOLE
16
W18SEAL2H
INTERNAL ROUTING SEAL - 2 HOLES
W18SEALNOH16
Product not available on our site, please contact our teams.

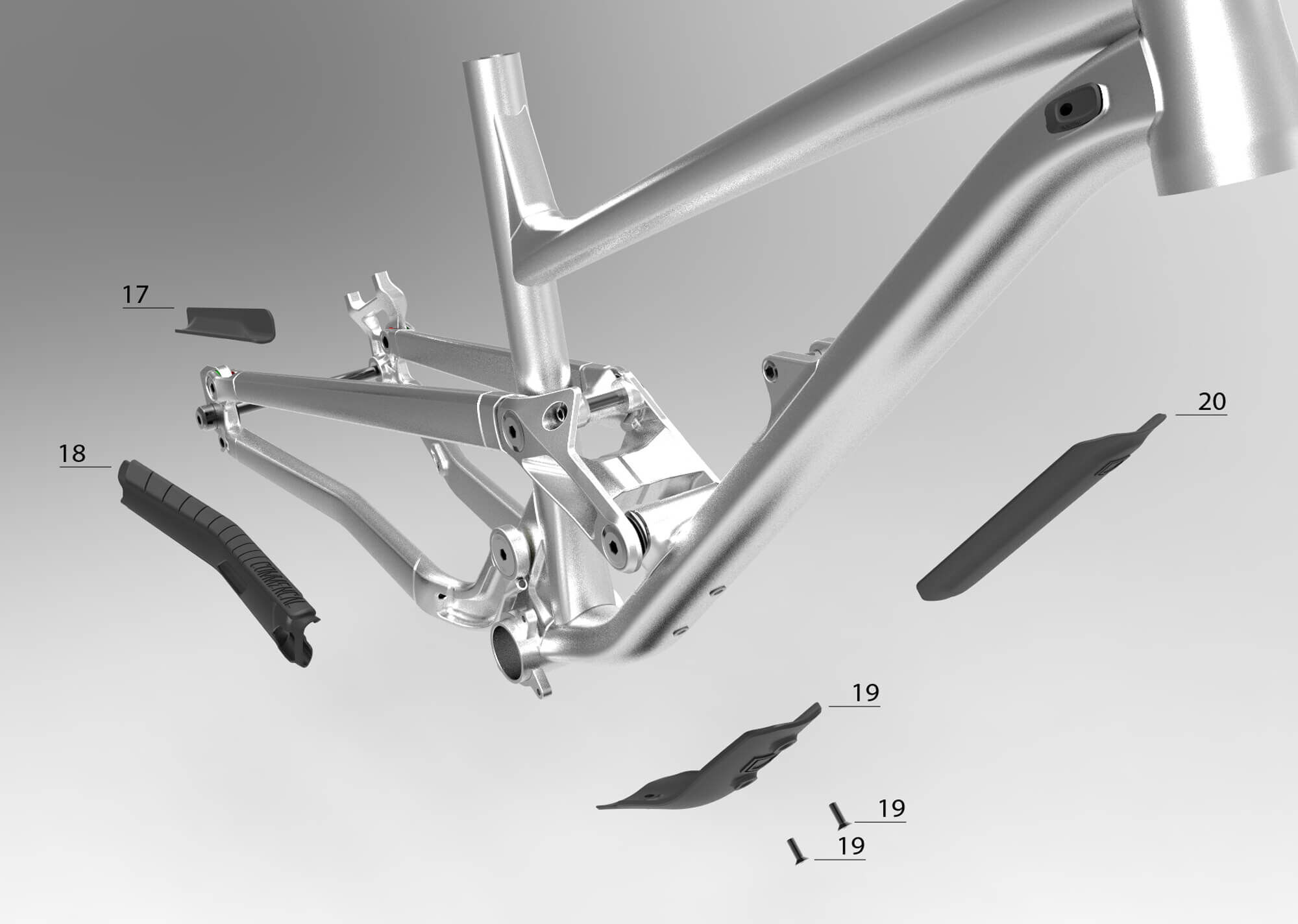

Protectors

17
A16SSTPROTECMETAV4
META, META POWER, CLASH SEAT STAY PROTECTOR
18
W19CLHPROTECCS
FRS, META, CLASH CHAIN STAY PROTECTOR
19
W21CLHPROTECDT
DOWN TUBE PROTECTOR CLASH V2
3N.m
W19PROTECPICKUP20
Product not available on our site, please contact our teams.

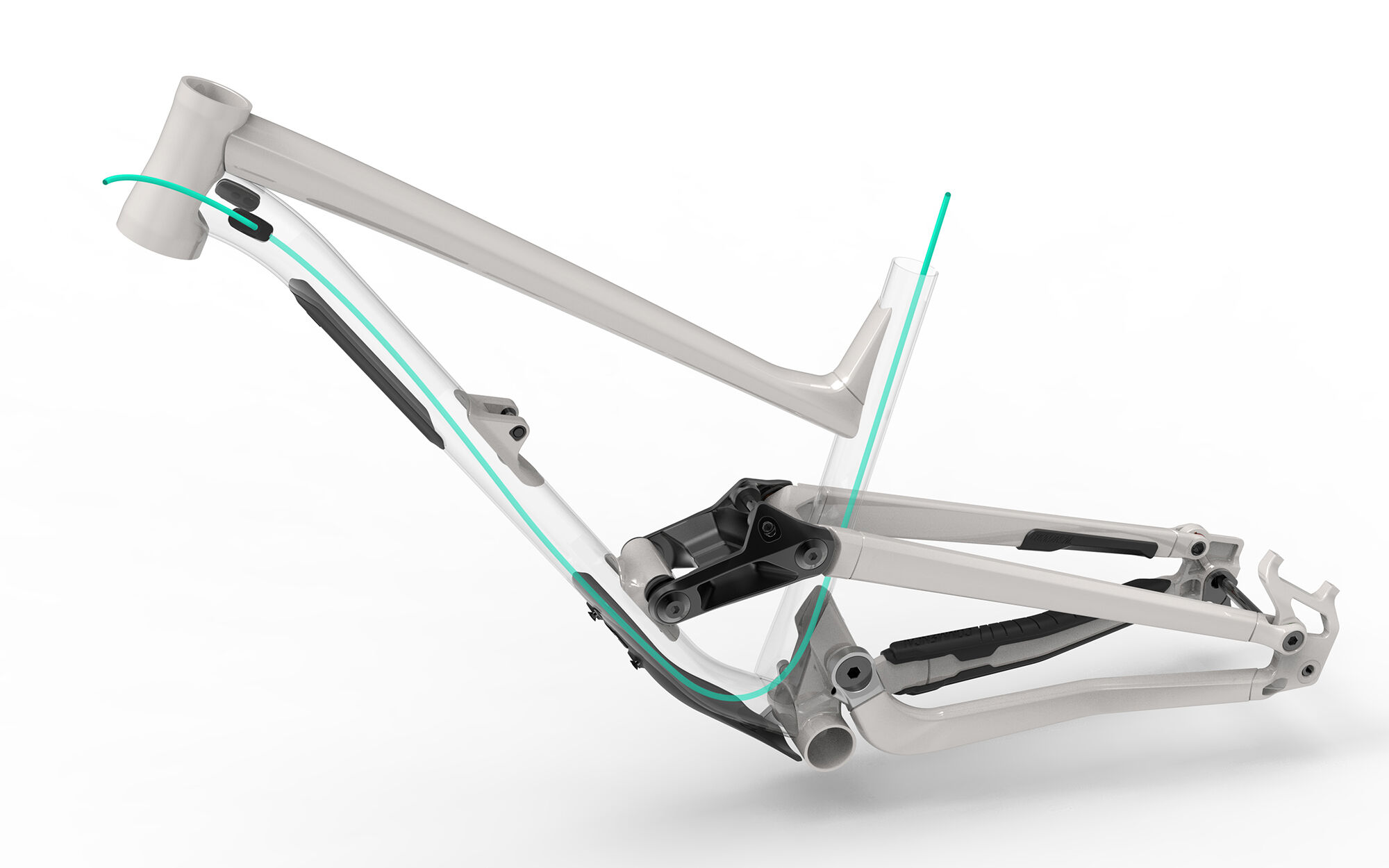

Cable Routing

Rear Brake - Derailleur

Dropper post
