COMMENCAL CLASH PARK EDITION METALLIC PURPLE

Price reduced from NZ$ 8,300.00 to NZ$ 6,900.00 -17%
id/sku : 22CLASHPRKXL
Availability: In stock null
  • Any questions?

    store.nz@commencal.com
    +64 3 925 9075
    from Monday to Friday - 9am to 5:30pm

  • Shipping Options

    Home Delivery
    Showroom Delivery:
    COMMENCAL NEW ZEALAND
    16 Nazareth Avenue
    Middleton
    Christchurch 8024

  • Payment options

    Credit card
    PayPal
    Bank transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

The CLASH has 170 mm of travel and 27.5" wheels, and is designed for one thing and one thing only - having fun! With a look of the FRS, the freeride affiliation is obvious. In addition to descending at full gas, the CLASH knows how to pedal to get to the trailhead when the lift is closed. Depending on the terrain you can optimise grip or dynamism thanks to a specific insert.
LEARN MORE

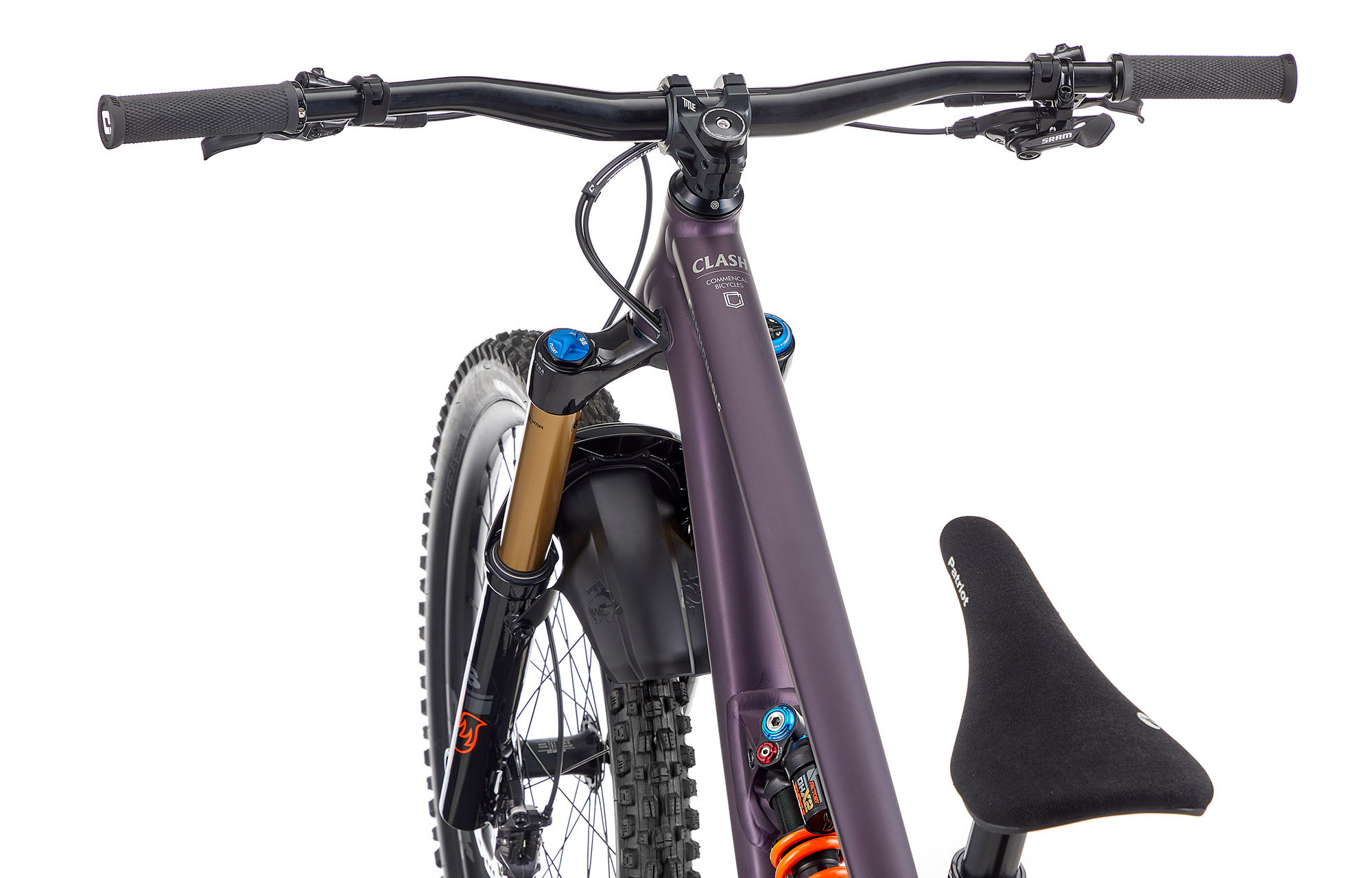

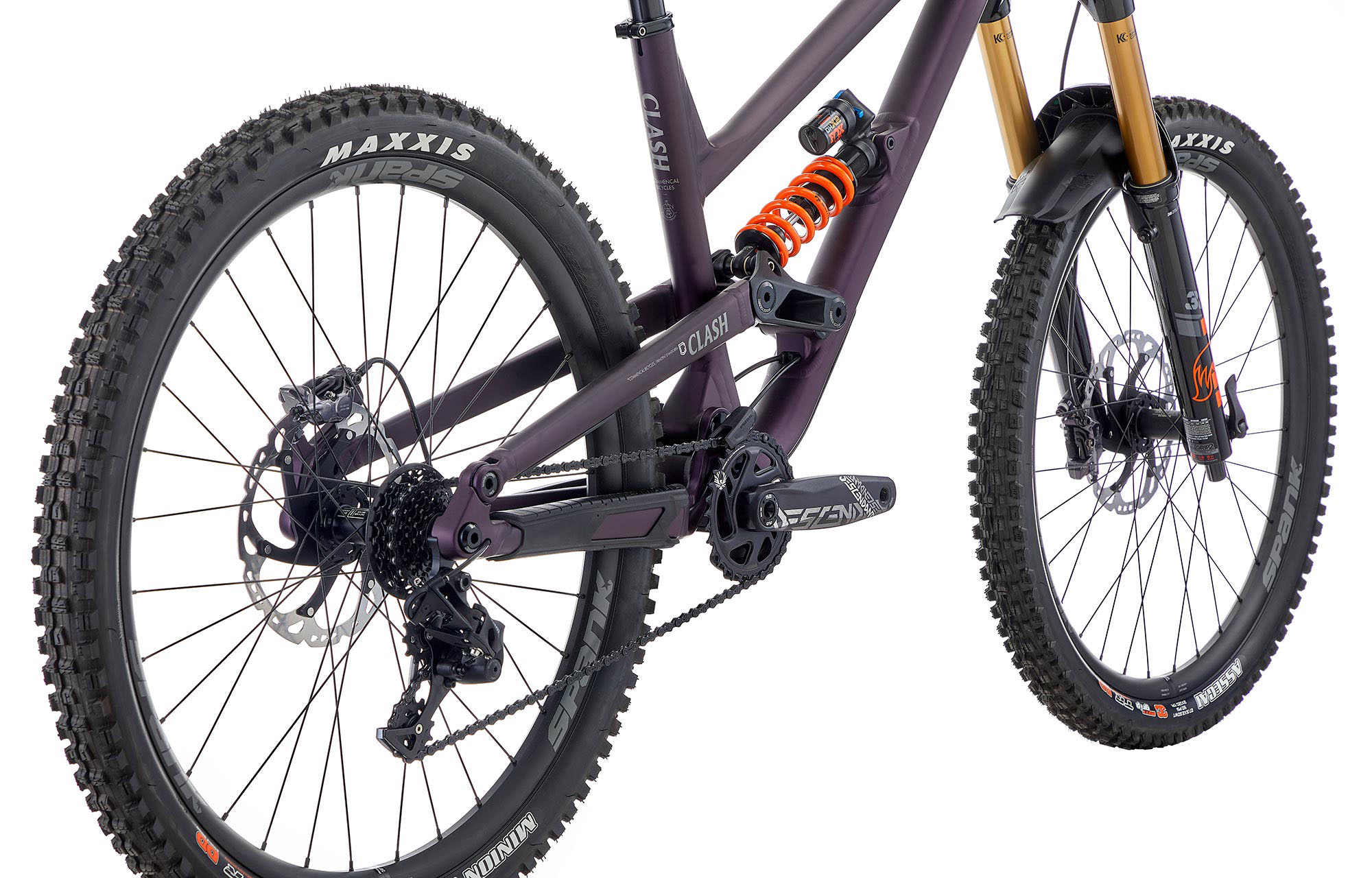

CLASH PARK EDITION METALLIC PURPLE

The Park Edition has been designed for the many riders who consider the CLASH to be a pure toy for the bike park. Those for whom style and creativity comes first. Or perhaps for those who just like to have a unique bike. The Metallic Purple paint epitomises the lively fun and ???out there' spirit that we wanted this Park Edition to represent.

Beware of appearances, this version of the CLASH has nothing to do with the FRS! The choice of suspension is very specific:
- A FOX 38 Factory single crown fork offers more freedom and flexibility.
- A DHX2 Factory shock brings sensitivity on small impacts.

As for the rest of the components, they have been carefully selected specifically for this new bike:
- A reliable and easy-to-maintain SRAM GX DH 7-speed drivetrain that improves suspension efficiency thanks to the reduced weight. There is also less risk of damage due to the smaller cassette etc.
- Powerful and durable SHIMANO XT 4-piston 203mm brakes are perfect for the bike park.
- The MAXXIS Assegai and DHR II combo perfectly matches this bike and features an excellent compromise between lateral grip and roll. The Double Down casing makes them perfect for DH/bike park.
- A SDG I-Beam seat post is lightweight and simple to maintain.

Bike park, jumps, tricks, berms and big downforce, anything goes with this CLASH Park Edition!

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO / FREERIDE

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4 kg / 8.81 lb

  • Rear travel

    Adjustable via flip chip: 170 mm on Grip position / 155 mm on Dynamic position

  • Shock length/stroke

    230 mm x 65 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm on body - 30 x 10 mm on shaft

  • Recommended/max. fork height

    572 mm / 586 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27,5" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    Press Fit BB 92

  • ISCG

    ISCG05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - moyeu 148 x 12 mm standard maxle

- SPECIFICATIONS -
  • Frame

    CLASH, 170 mm travel
    27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX DHX2 Factory
    230 x 65 mm, HSC, LSC, HSR, LSR. Spring rates : 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XL, 2-position adjustment

  • Fork

    FOX 38 Factory, 180 mm travel
    27.5", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 37 mm offset, 0 Token

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    TITLE ST1 35
    40 mm extension, 35 mm, Alloy 6061 T6, oil slick stainless steel bolts

  • Handlebar

    TITLE AH1 35
    35 mm, 810 mm width, 20 mm rise, Alloy 7050 T74

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO XT, 4 PISTONS, I-SPECS EV COMPATIBLE OR TRP DH-R EVO, 4 PISTONS
    Rotors: SHIMANO SM-RT86 203 mm, 6-bolt, Ice Technology Freeza or TRP R1 203mm, 6-bolt, 2.3 mm

  • Shifters

    SRAM GX DH
    7s

  • Chain guide

    E13 TRS
    30 - 32t

  • Rear mech

    SRAM GX DH
    7s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant  X-Sync, 32t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM GX DH
    7s, 11 - 25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, Tubeless Ready

  • Hubs

    Rear: SPANK Spike - Front: SPANK Spike
    Rear: HEX J-Type, 32h, 2 sealed bearings, 12 x 148 mm, XD, black - Front: HEX J-Type, 32h, 2 sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    SPANK J-Hook
    J-Bend, tripple butted 2.2/1.8/2.0, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

  • Seat post

    SDG Micro I-Beam
    31.6 mm, 250 mm length

  • Saddle

    SDG Patriot I-Beam
    31.6 mm, 250 mm length, diameter reducer

  • Weight

    15,6 kg / 34.39 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    METALLIC PURPLE
    Matte Finish

  • Accessories

    down tube protector, chainstay protector, seatstay protector, shuttle pad, specific fox 38 fender

- SIZES -
- GEOMETRY -
SIZES
