COMMENCAL META SX V4 RACE PURE WHITE
- TECHNICAL INFO
We have been working on 29/27 Mullet bikes for 3 years now with our different DH teams. This work has allowed us to understand that to transform a regular bike with the same sized wheels into a bike with different sized wheels, it isn't effective to just throw a 27-inch wheel on the back. The geometry and kinematics of the bike must be completely reworked and it is thanks to this experience that we are now able to present the most successful version of the META V4 we've ever produced, the META SX!
Equipping this META SX with different sized 29/27-inch wheels is not the result of a trend that we're following. Quite simply, this way the bike is much more balanced, specifically relating to grip on the front and back - the large 29-inch wheel on the front allows more confidence and rolling capacity whilst the 27.5-inch rear wheel offers more manoeuvrability and responsiveness.
The result is a bike that is more agile and easier in the steeps, more efficient under braking and more dynamic when pushing hard.
Once again, our choice to work with Aluminium has allowed us to accompany this change in wheel size with an adjustment of the geometry. A shorter 10mm reach, a straightened steerer angle and extended (10mm) chain stays mean that the rider is naturally repositioned in the centre of the bike and will therefore have the ability to be more precise and agile in their technique.

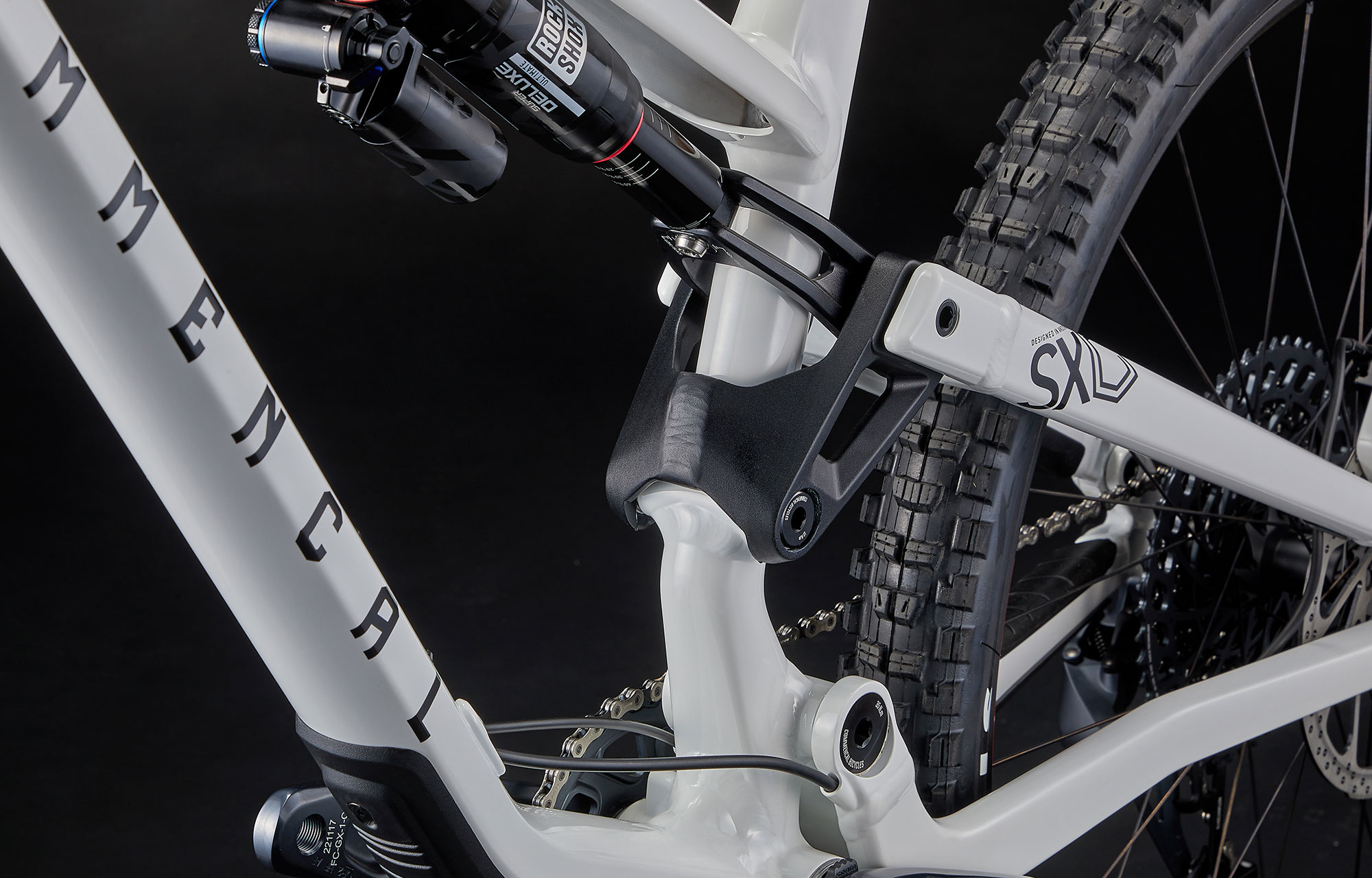

Undoubtedly, one of the points that has changed the most is the way the suspension works. Apart from the kinematics which have been reworked to provide more liveliness, we've made a point of managing the stiffness of the rear triangle. Through new double row Enduro Bearings, eliminating any deformation, the new META SX offers perfect deformation/rigidity management to provide grip, comfort and performance.

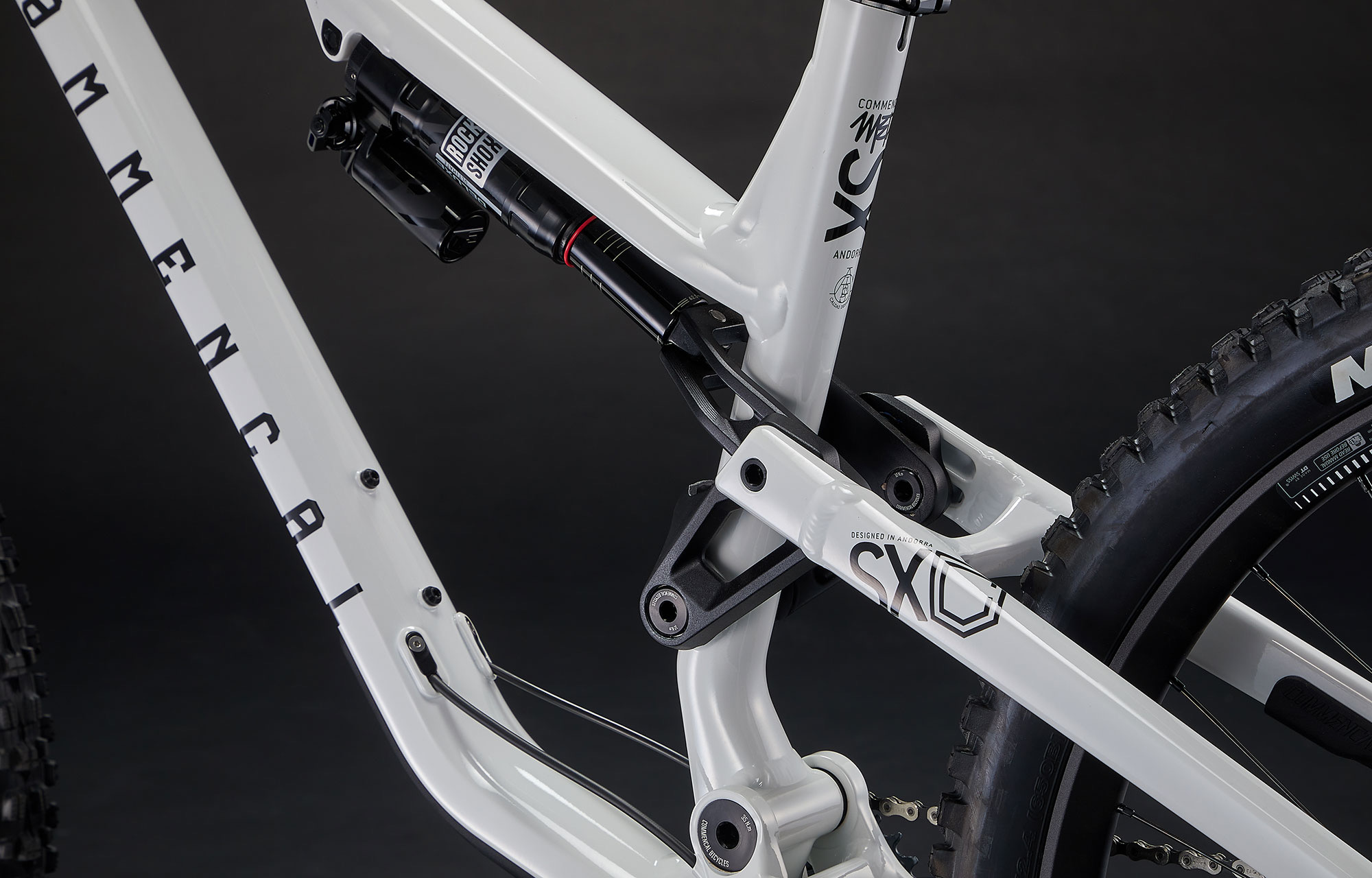

In addition to all this in-depth work, as on our META POWER TR and META TR models, we now offer a Flip Chip on the shock extension in order to be able to better adjust the geometry, and therefore fit with your style! This system also means you can adapt the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on your preferences, you can have the choice between a dynamic bike that's perfect for big pedalling trips, or a more progressive version which is ideal for days in the bike park or on more committed trails.
Finally, we have worked on a detail that makes the difference; the finished look.
The welds have been the subject of meticulous work to reduce them as much as possible without affecting the solidity of the frame. The cable routing is neat for easier maintenance, the cables being easily accessible in the down tube, while grommets are placed at the ends to give perfect support and prevent penetration of water and mud.
Installing a bottle cage has also been made easy.
META SX V4 TEAM

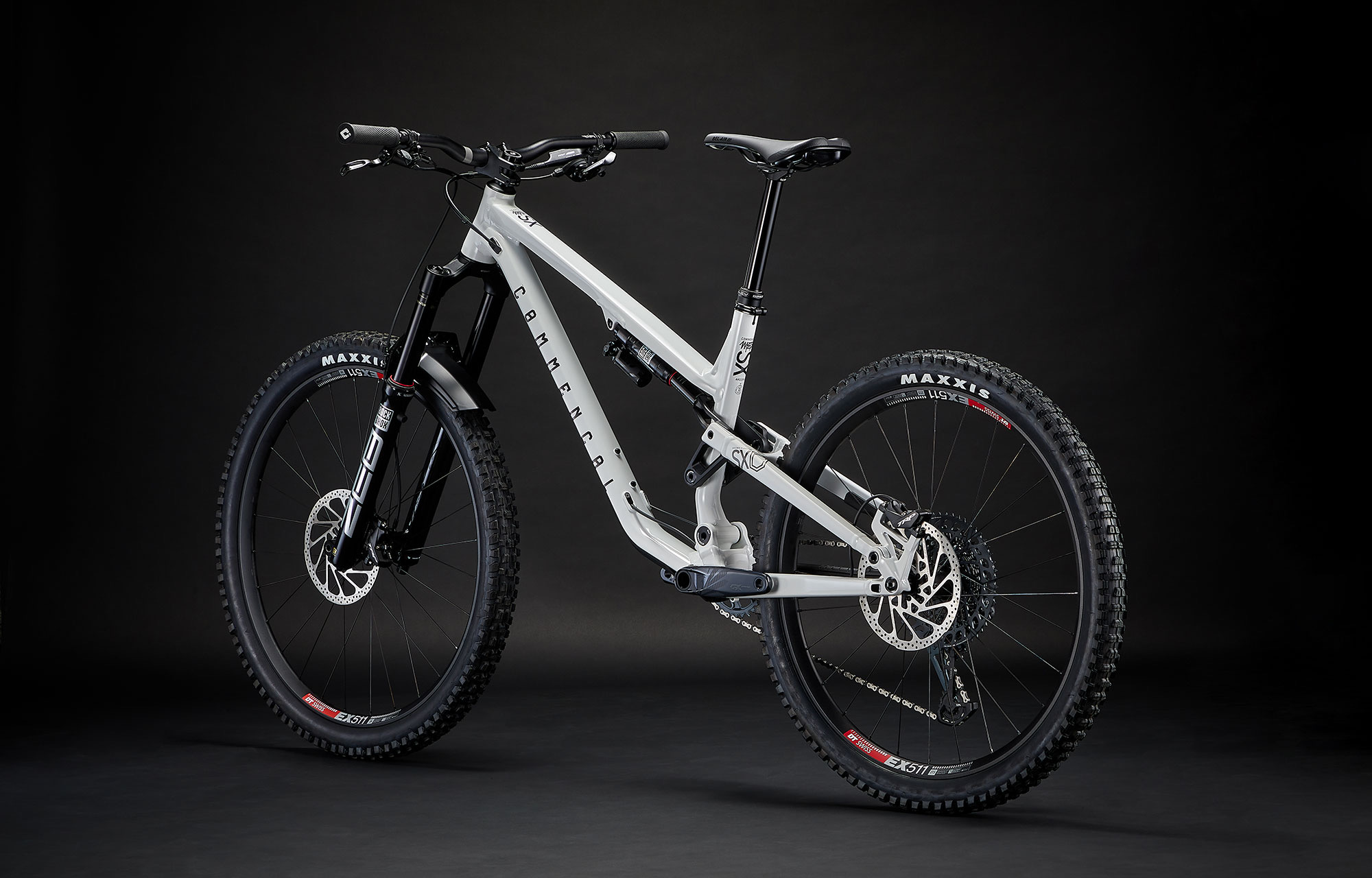

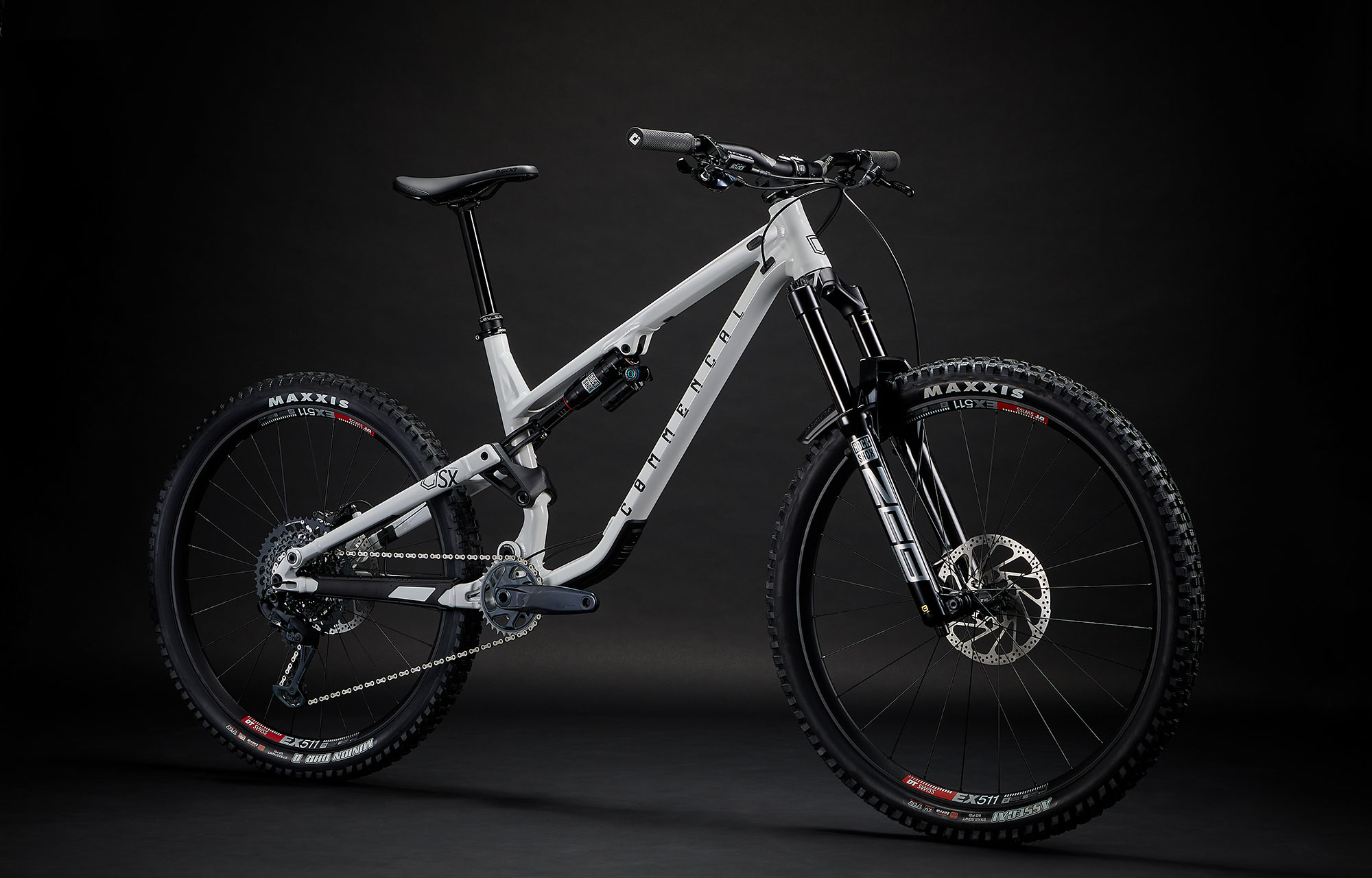

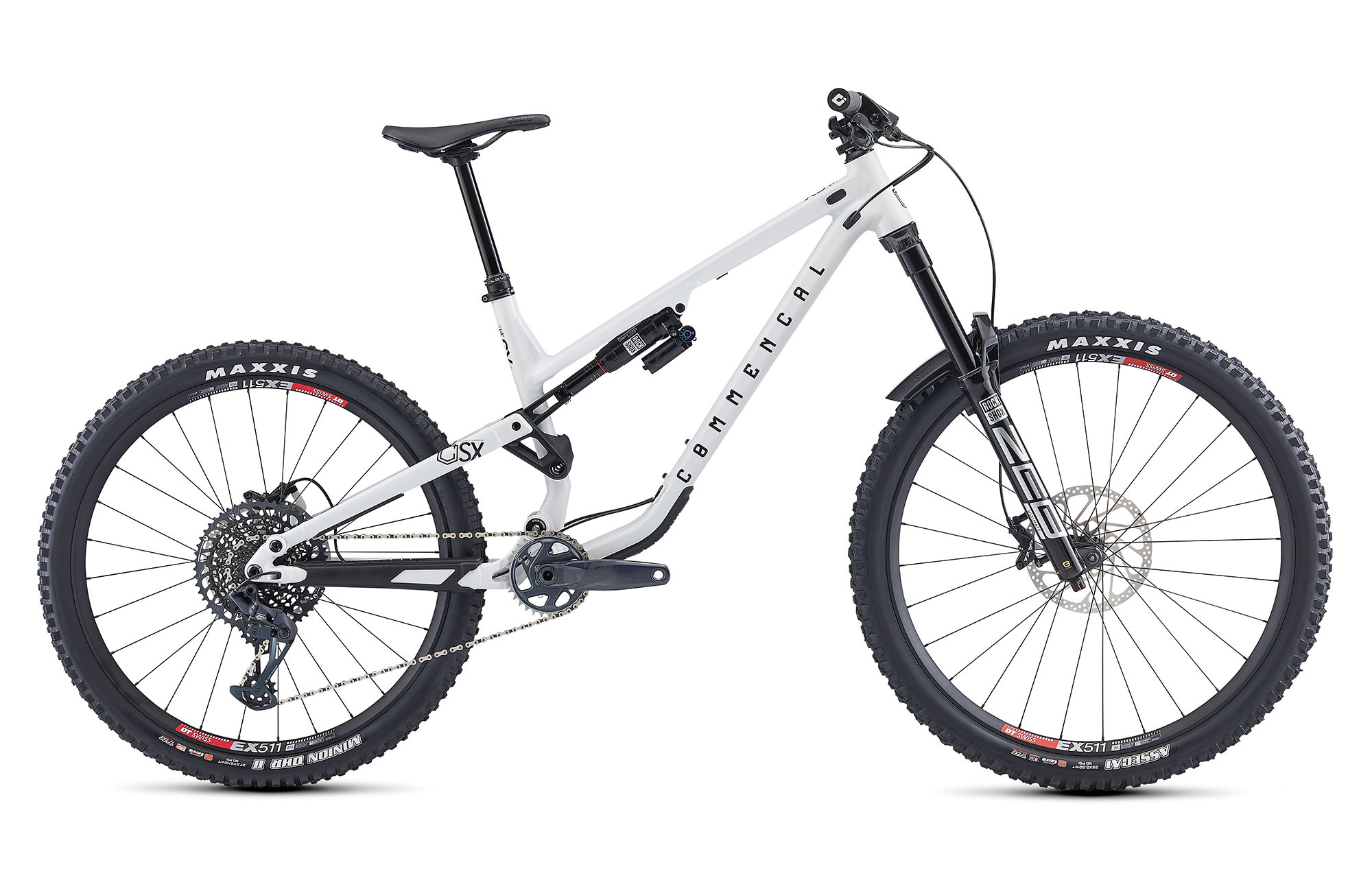

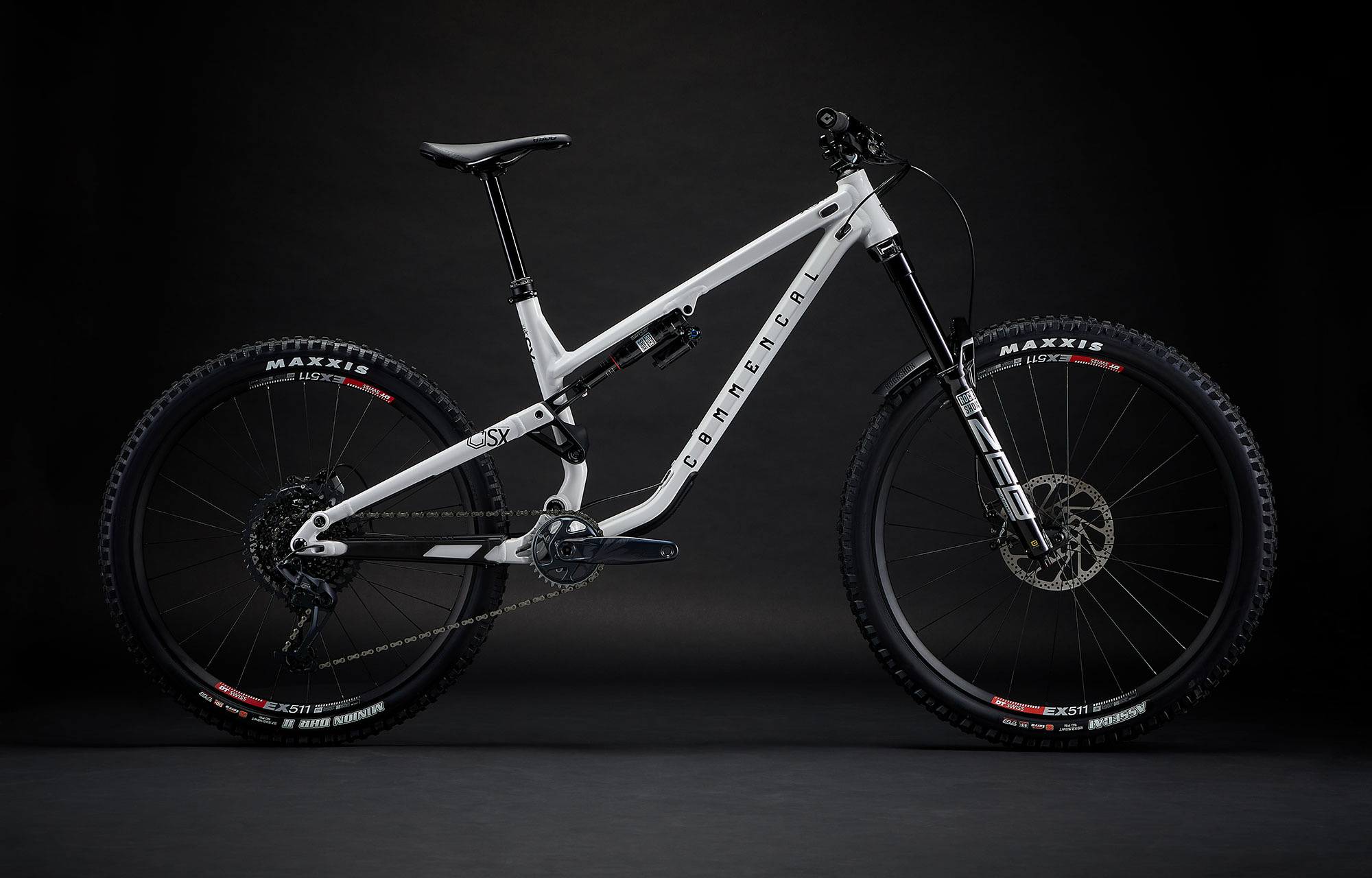

Classy and modern with a Pure White Shiny paint finish, this META SX V4 TEAM will stand certainly out, especially with all those plush parts.
A top-of-the-range model, this META SX is equipped with the best ROCKSHOX suspension currently available on the market for enduro:
- The ZEB Ultimate fork with 38mm stanchions offers precise and varied adjustments thanks to the Debonair spring.
- The Super Deluxe Select Ultimate shock brings grip and performance on the most demanding trails.
The rest of the components are carefully selected to match this bike:

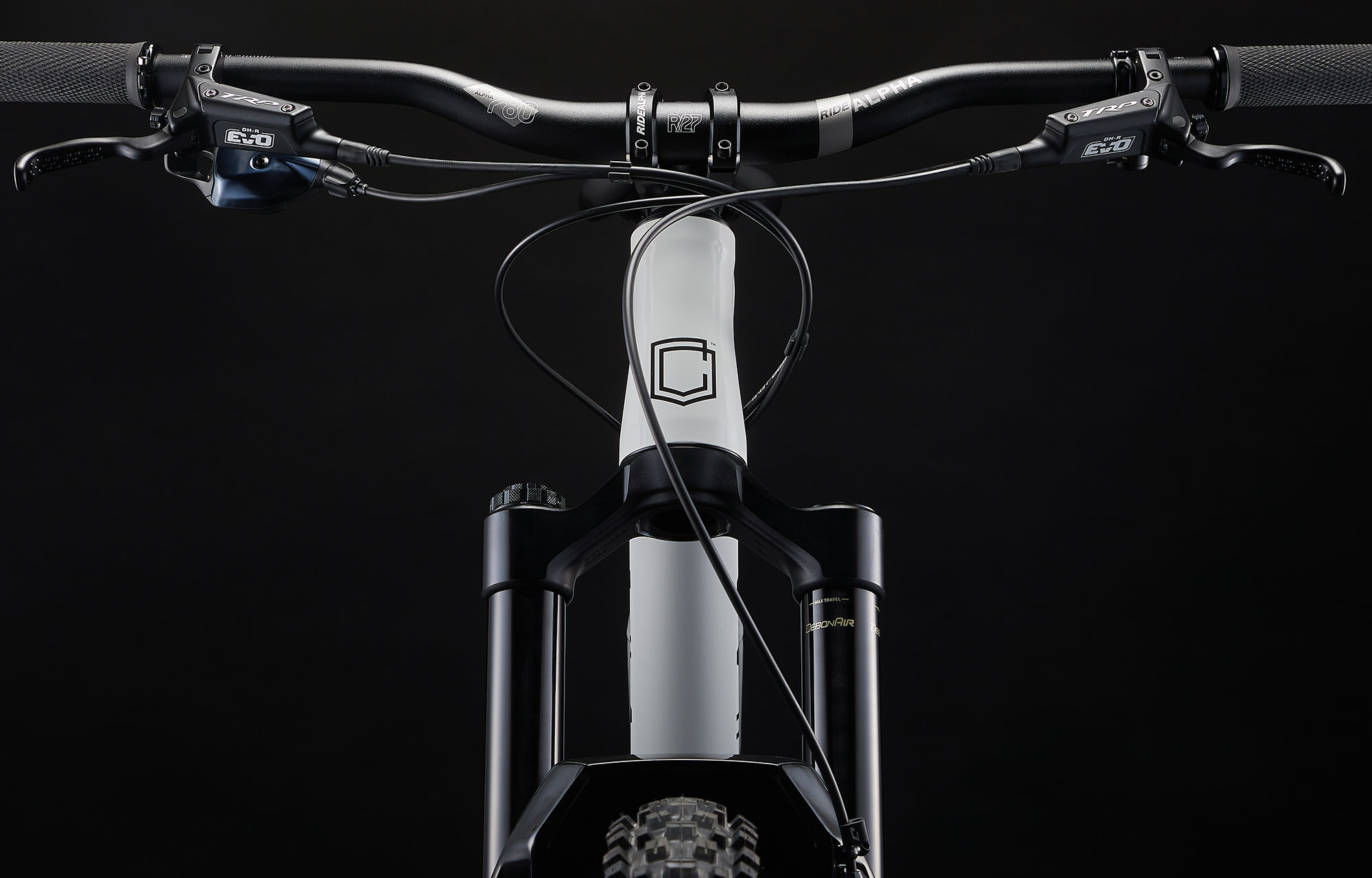

- TRP DH-R Evo 4-piston brakes provide powerful and long braking in all conditions.

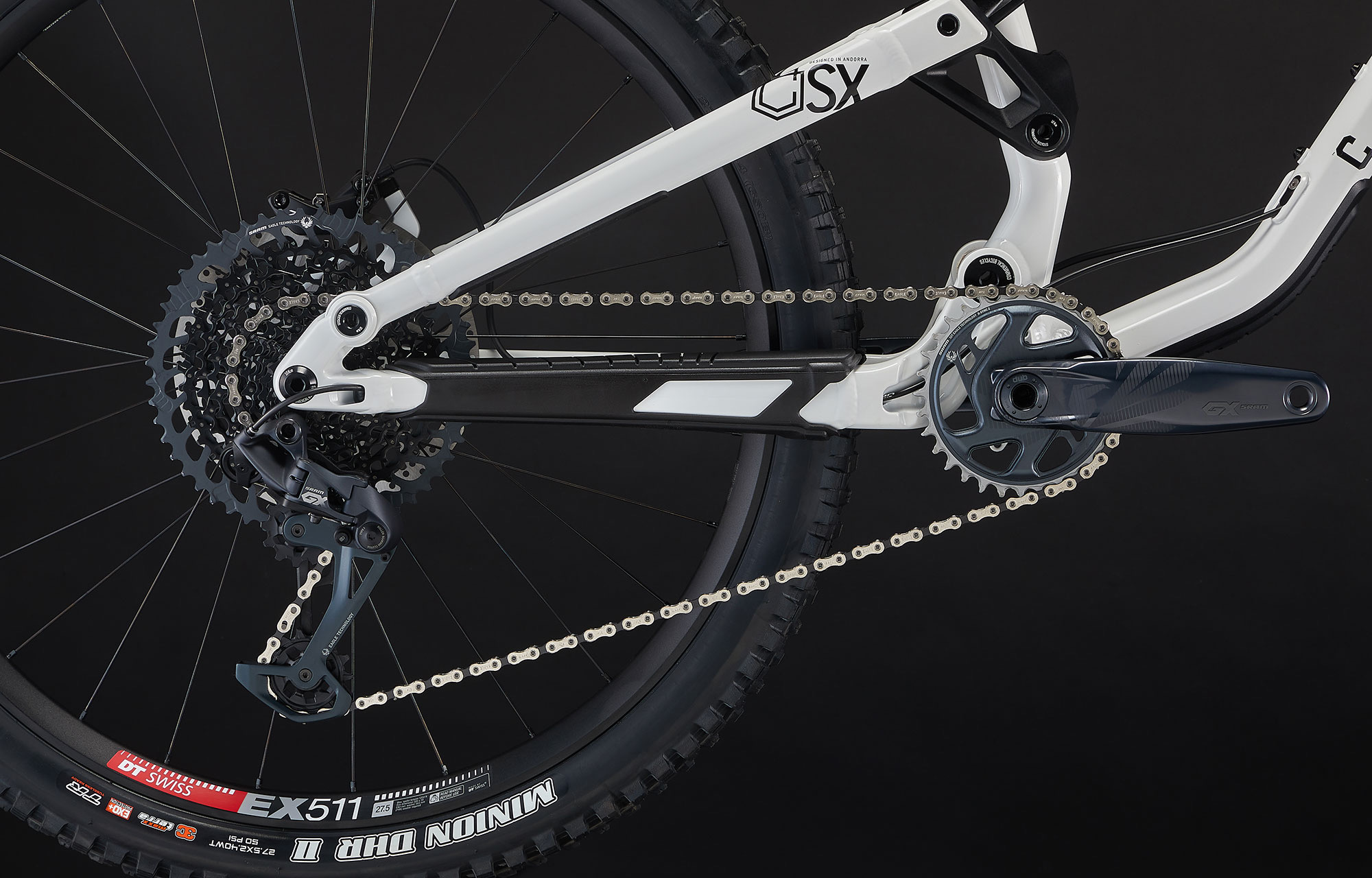

- The SRAM GX Eagle 12-speed drivetrain features a big 10-52t gearset. No need to worry about those climbs.
- DT SWISS custom wheels are designed specifically for this bike. They feature the EX 511, one of the best enduro rims on the market today, as well as reliable and strong 350 hubs.
An exceptional bike, perfect for longer enduro rides.
*Please note that bike specs are subject to change without prior notice.
3,9 kg / 8.59 lb
230 x 62,5 mm
Piggy back shock compatible
20 x 10 mm
Recommended/max. fork height
586 mm / 596 mm
TAPERED 1-1/8" / 1-1/2"
ZS44 / ZS56
Maximum tyre dimension (etrto)
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Rear hub compatibility
12 x 148 mm
2022 Meta SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
ROCKSHOX Super Deluxe Ultimate
230 x 62.5 mm, RCT2 Damper, LSC, HSC, rebound, Hydraulic Bottom Out, 2-position adjustment
ROCKSHOX Zeb Ultimate, Charger 3 RC2, 170 mm travel
29", Charger 3 RC2 with ButterCups DebonAir+, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token
Alloy cups, sealed bearings
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
ODI Elite Motion
Soft pro compound, single clamp, black
TRP DH-R Evo, 4 pistons
Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width
SRAM GX Eagle
SRAM GX Eagle
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-Wide
SRAM GX Eagle
SRAM GX Eagle
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless Ready
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
SDG Bel Air V3 Atmos
15,6 kg / 34.39 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Down tube protector, chainstay protector, seatstay protector, Mudguard
