COMMENCAL CLASH XS GLITTERY BLACK image number null

COMMENCAL CLASH XS GLITTERY BLACK

The CLASH XS is designed for technical terrain. Its 27.5/26-inch mullet wheels combined with a carefully studied geometry make it the ultimate weapon for having fun and tackling slopes without apprehension. The virtual pivot point kinematics, adapted for smaller frames, allows you to maintain all the grip and comfort necessary to face the most demanding trails.

Price reduced from NZ$ 5,043.47 excl. GST to NZ$ 4,695.65 excl. GST -7%
id/sku : 23CLASHXS
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

The CLASH XS is perfect for teenagers and smaller riders looking for a playful bike.

• FOX handle the suspension. Up front, the 36 Float Performance fork with ultra-sensitive Float Evol air spring and Grip hydraulic cartridge allows compression adjustment in three distinct positions. With its large air and oil volumes, the Float X Performance shock provides consistent performance and maximum grip. The MCU bumper smoothly handles big hits and allows compression lockout while pedalling thanks to a dedicated lever.
• Braking is handled by TRP with a pair of Slate Evo 4-piston brakes. They are efficient with a sharp and aggressive feel, perfect for bike park riding.
• SPANK Spike Race 33 wheels guarantee reliability and strength.

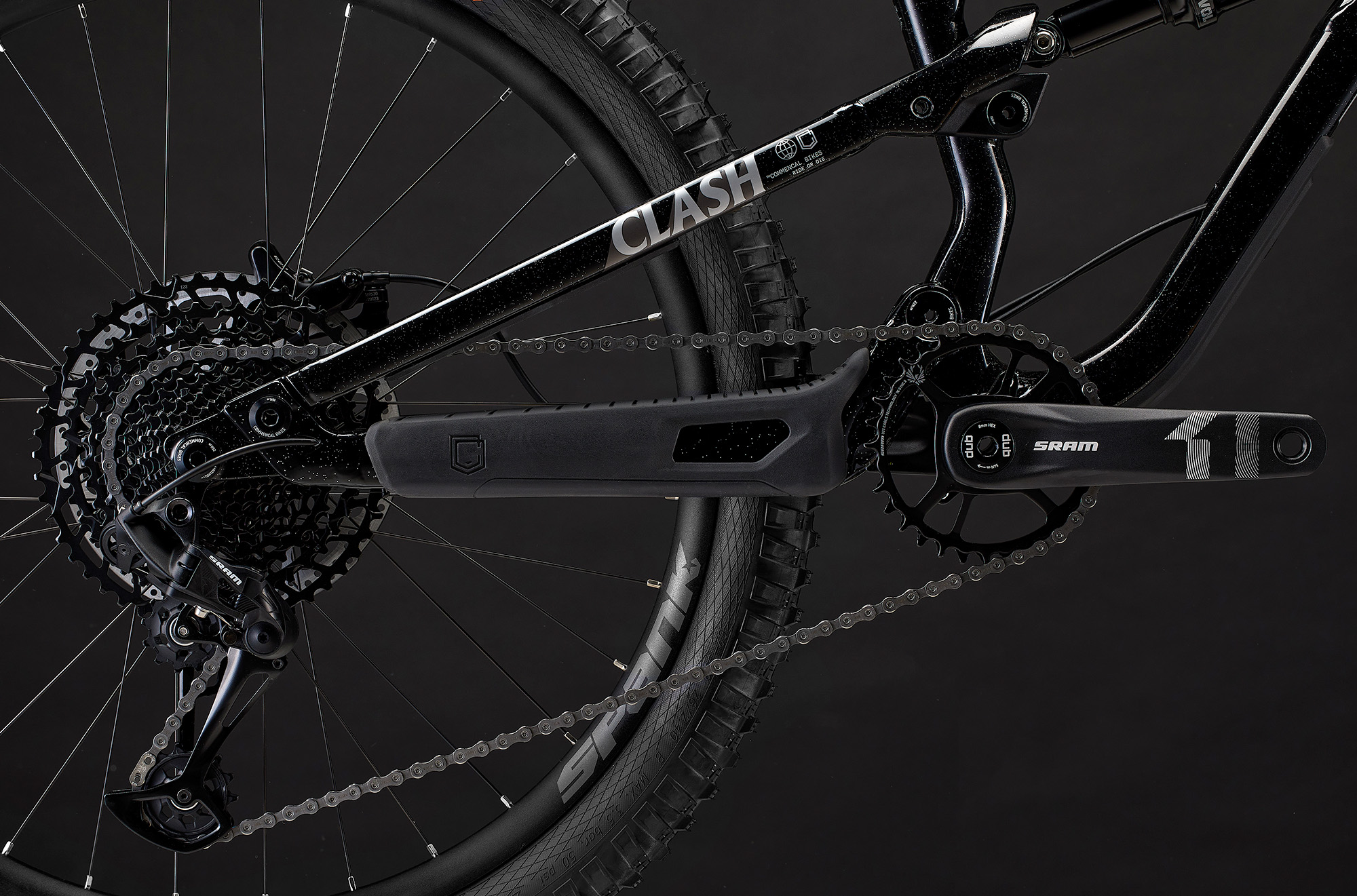

• The SRAM SX 12-speed drivetrain features a wide 11-50t range for tackling all challenges.

specifications

  • Frame

    CLASH XS, 160 mm travel
    26", Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX Float X Performance
    210 x 55 mm, rebound, LSC, 2-position (open / firm) lever, 0.6 spacer

  • Fork

    FOX 36 Performance, 160 mm travel
    27.5", Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 37 mm offset, 1 spacer

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20
    31.8 mm, 740 mm width, 20 mm rise, Alloy 6061

  • Grips

    RIDE ALPHA DH
    Ultra-soft compound, single clamp, black

  • Brakes

    TRP Slate Evo, 4 pistons, resin pads
    Rotors: TRP 203 mm, 6-bolt, 2.3 mm thickness

  • Shifters

    SRAM SX Eagle
    12s

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    SPANK Spike Race 33
    Rear: 26'', 32h, 28 mm inner width, tubeless ready - Front: 27.5'', 32h, 28 mm inner width, tubeless ready

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 26" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy

  • Seat post

    KS Rage-I
    31,6 mm, 100 mm travel, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel rails

  • Weight

    15,1 kg / 33.28 lb
    Without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Glittery Black
    Shiny Finish

  • Accessories

    Chainstay protector, seatstay protector, downtube protector

Bike specifications are subject to change without notice.

Technical informations

  • Bicycle type

    ENDURO - FREERIDE KIDS JR

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,2 kg / 7.05 lb

  • Rear travel

    160 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm Front, 30 x 8 mm + Bearings on shock head

  • Recommended/max. fork height

    552 mm - 562 mm

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    26 x 2,5’’ - 27,5 x 2,5''

  • Disc brake standard

    Post Mount 180 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm - 34,9 mm

  • Bottom bracket type

    PF 92 mm

  • ISCG

    ISCG05

  • Rear hub compatibility

    L=183 mm, M12, P1.0 mm - Hub 12 x 148 mm standard Maxle

  • Bicycle type

    Kids bike - Enduro / Freeride

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,2 kg / 7.05 lb

  • Rear travel

    160mm

  • Shock length/stroke

    210x55mm

  • Recommended SAG

    26-30% / 14-17mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x8mm

  • Recommended/max. fork height

    552mm / 562mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    27.5’’ - 26’’

  • Max. rear tyre dimension - ETRTO

    64mm - Ø559mm

  • rear brake mounting type

    Postmount 180mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm - 34,9mm

  • Seatpost insertion max.

    205mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 183mm, M12, P1.0mm

  • UDH hanger

    No

WHICH BIKE TO CHOOSE FOR YOUR CHILD?

Whatever your child's age or build, with our KIDS range, you're guaranteed to choose a mountain bike specifically designed for them. Here, the geometries, equipment and wheel sizes are conceived as a whole, to enable children to become experienced riders.

Geometry

SIZE
20
24
XS
1 - SEAT TUBE LENGTH
260
320
360
2 - SEAT TUBE ANGLE
74°
75,5°
77,5°
3 - HEAD TUBE ANGLE
65°
64,5°
64°
4 - HEAD TUBE LENGTH
100
100
110
5 - WHEELBASE
927
1036
1159
6 - TOP TUBE LENGTH
434
488
527
7 - CHAIN STAY LENGTH
345
390
434
8 - BOTTOM BRACKET HEIGHT
16
-6
0
9 - FORK LENGTH
430
500
552
10 - FORK OFFSET
40
40
42
11 - REACH
320
350
395
12 - STACK
451
534
593

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
