COMMENCAL META HT 24 V1 DIRT MAXXIS

Price reduced from NZ$ 2,900.00 to NZ$ 2,200.00 -24%
id/sku : 21METAHT24DTMA
Availability: In stock null
  • Any questions?

    store.nz@commencal.com
    +64 3 925 9075
    from Monday to Friday - 9am to 5:30pm

  • Shipping Options

    Home Delivery
    Showroom Delivery:
    COMMENCAL NEW ZEALAND
    16 Nazareth Avenue
    Middleton
    Christchurch 8024

  • Payment options

    Credit Card
    Paypal
    Wire Transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • Specs
  • Geometry
- DESCRIPTION -

The META HT Kids range features real enduro mountain bikes designed for young people. They love adventuring off the beaten track and may also be particularly comfortable on a pump track or on the streets.

The range consists of three models with different wheel sizes; 20-inch, 24-inch and 27.5-inch (JR).

But forget wheel size for a minute, because all of the META HT Kids range showcase high-end frames. The series of tubes are specifically designed to offer comfort and liveliness. The rear triangle tubes are worked to generate a vertical flex and therefore ensure comfort. All three models are equipped with a telescopic fork which reduces friction as much as possible so that the travel is used to the full, even during small impacts and for smaller, lighter humans. The comfort and grip are exceptional for a bike of this size.What a way to spend their days on a bike!

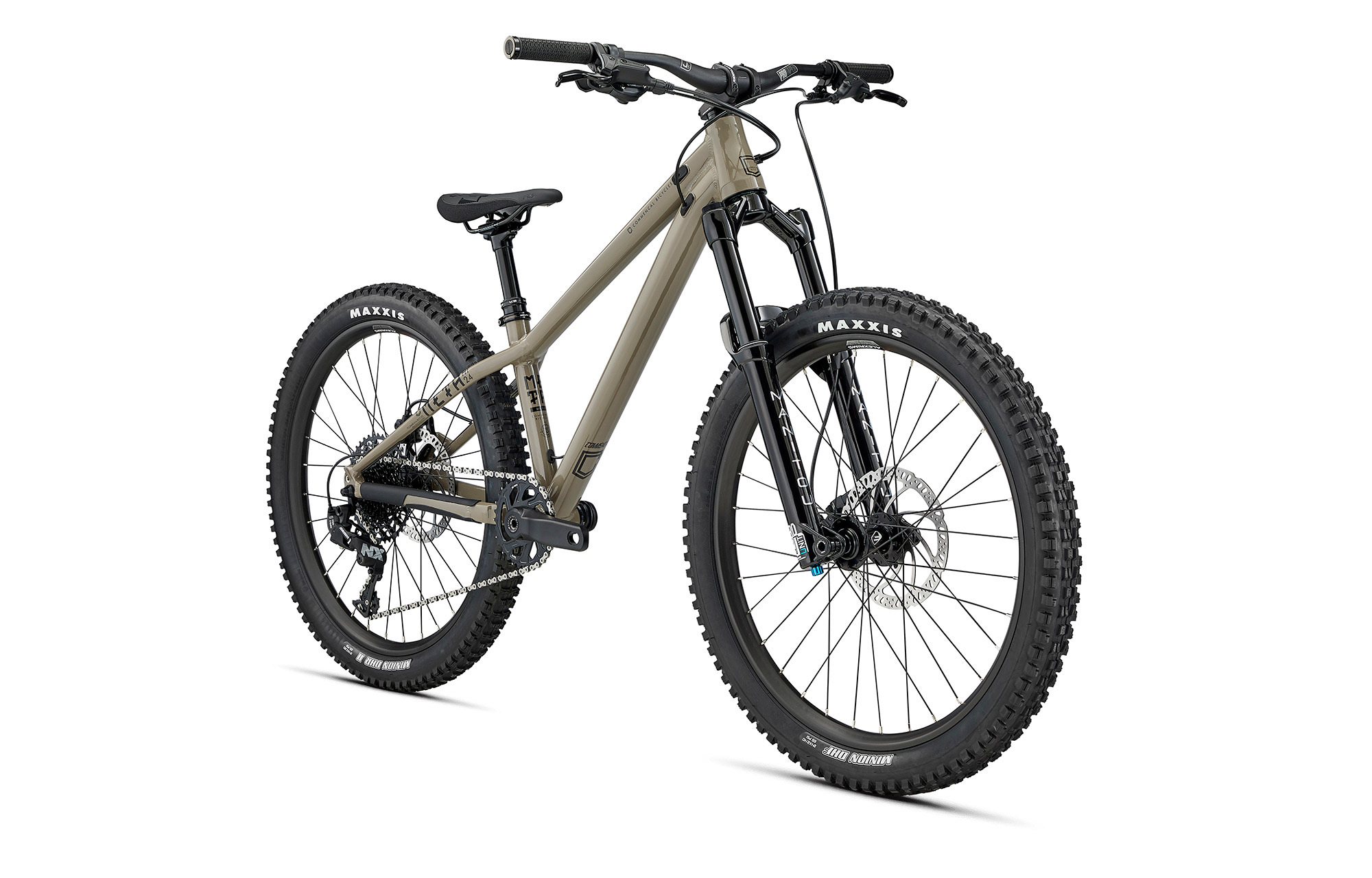

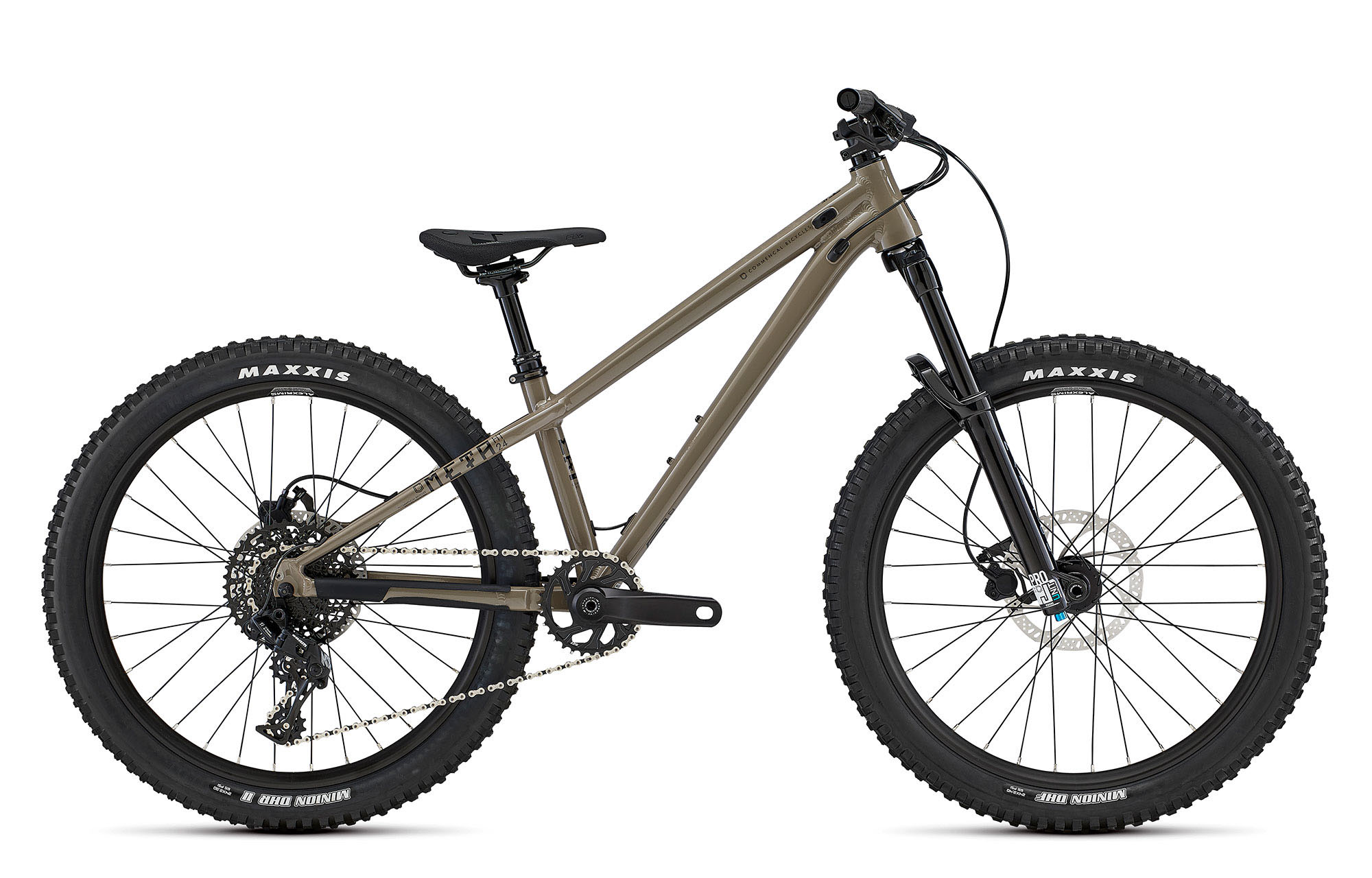

META HT 24

On the META HT 24, the frame is semi-rigid with a 120mm telescopic fork. This fork was specifically developed by our engineers in collaboration with MANITOU. The main objective is to reduce friction as much as possible so that the travel is used to the full, even during small impacts and for smaller, lighter humans. The comfort and grip are exceptional for a bike of this size.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ALL MOUNTAIN HARDTAIL 24

  • Frame material

    Al 6061 T6

  • Recommended/max. fork height

    470 mm - 480 mm

  • Headset dimension

    TAPERED 1-1/8 / 1-1/2

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    63 mm

  • Disc brake standard

    IS 160 mm

  • Rear rotor max. size

    180 mm

  • Seatpost/seat clamp diameter

    31,6 mm - 34,9 mm

  • Bottom bracket type

    BSA 68 mm

  • ISCG

    No

  • Rear hub compatibility

    135 x 9 mm

- SPECIFICATIONS -
  • Frame

    2021 Meta HT 24

    Alloy 6061, triple butted tubes, T4, T6.

  • Shock

    -

  • Fork

    MANITOU Machete Junit Pro, 120 mm travel

    24, kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)

  • Headset

    ACROS ZS44 / ZS56

    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40 mm

    40 mm extension, 31,8 mm

  • Handlebar

    PROTAPER Junit Rizer bar

    31,8 mm, 680 mm width, 25 mm rise, Alloy 7050-T76, Stealth

  • Grips

    PROTAPER Junit 27 mm

    Kids specific 27 mm diameter

  • Brakes

    TEKTRO HD-J285, Hydraulic disc brake

    Rotors: TEKTRO 180 mm, 6-bolt

  • Shifters

    SRAM NX

    11s

  • Rear mech

    SRAM NX

    11s

  • Bottom bracket

    AEROZINE BSA 30

    Threaded

  • Crankset

    AEROZINE Xeon-A1, 145 mm crank arms, 30 mm axle, 7075 alloy

    Chainring: AEROZINE Direct Mount 32t, Narrow-Wide, full CNC

  • Chain

    KMC X11

    11s

  • Cassette

    SRAM PG-1130

    11s, 11-42t

  • Rims

    ALEXRIMS MD30

    24, 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA RX-26 - Front: FORMULA DC-711

    Rear: 32h, sealed bearings, Front: 32h, sealed bearings

  • Spokes/nipples

    SAPIM Leader

    J-Bend 2.0 mm, stainless, with Nylok, black

  • Tyres

    Rear: MINION DHR II 24 - Front: MINION DHF 24

    Rear: 24X2.30 FOLDABLE Clincher M327P no tubeless - Front: 24X2.40 FOLDABLE Clincher M301P no tubeless

  • Seat post

    KS Rage-I

    31,6 mm, travel: 75 mm, SouthPaw alloy remote

  • Saddle

    SDG Fly Jr

    Kids specific, reinforced sides

  • Weight

    12,1 kg / 26.67 lb

    Without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Dirt

    Matte finish

  • Accessories

    Small pedals, chainstay protector, seatstay protector

- SIZES -
- GEOMETRY -
