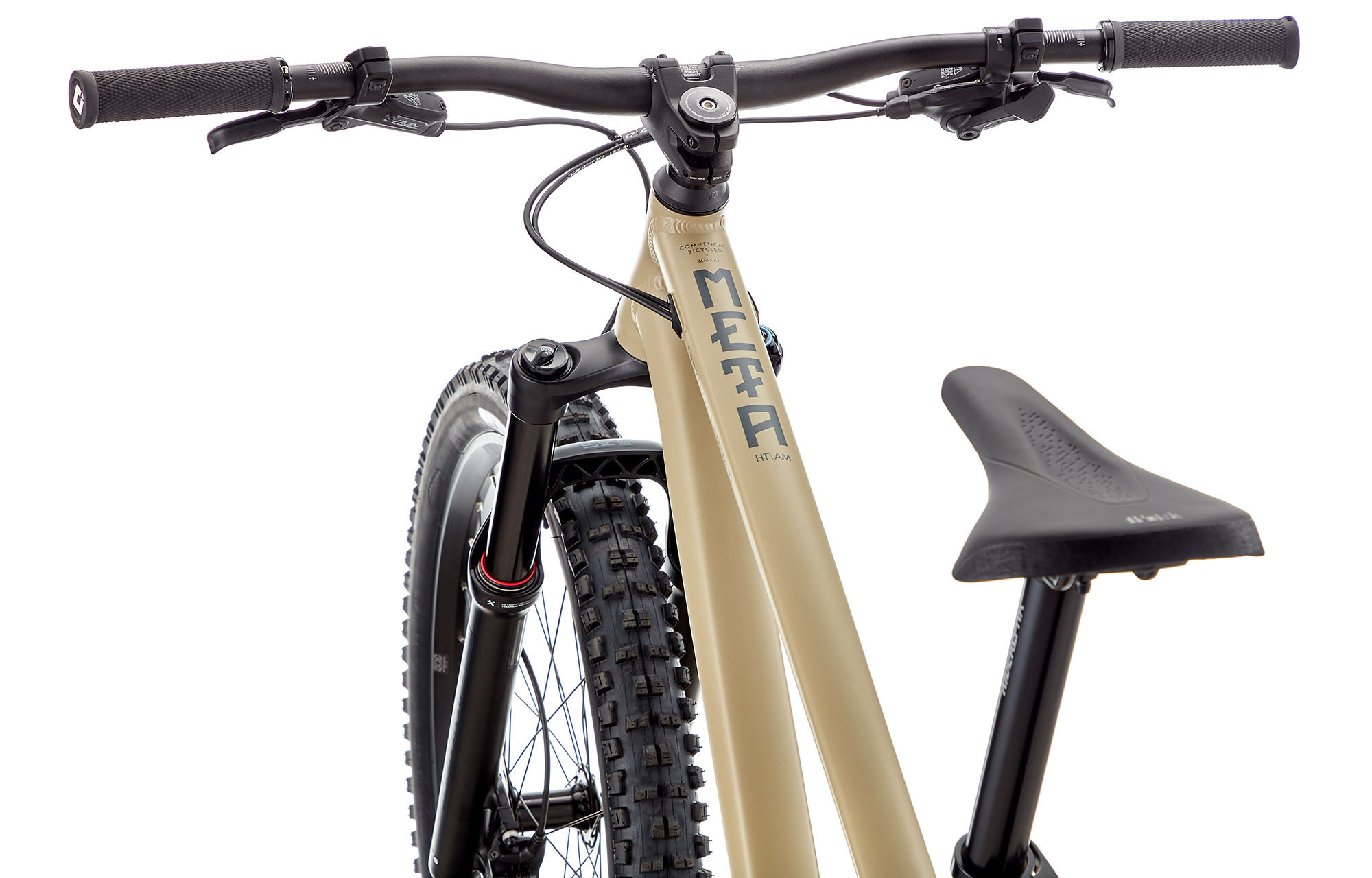

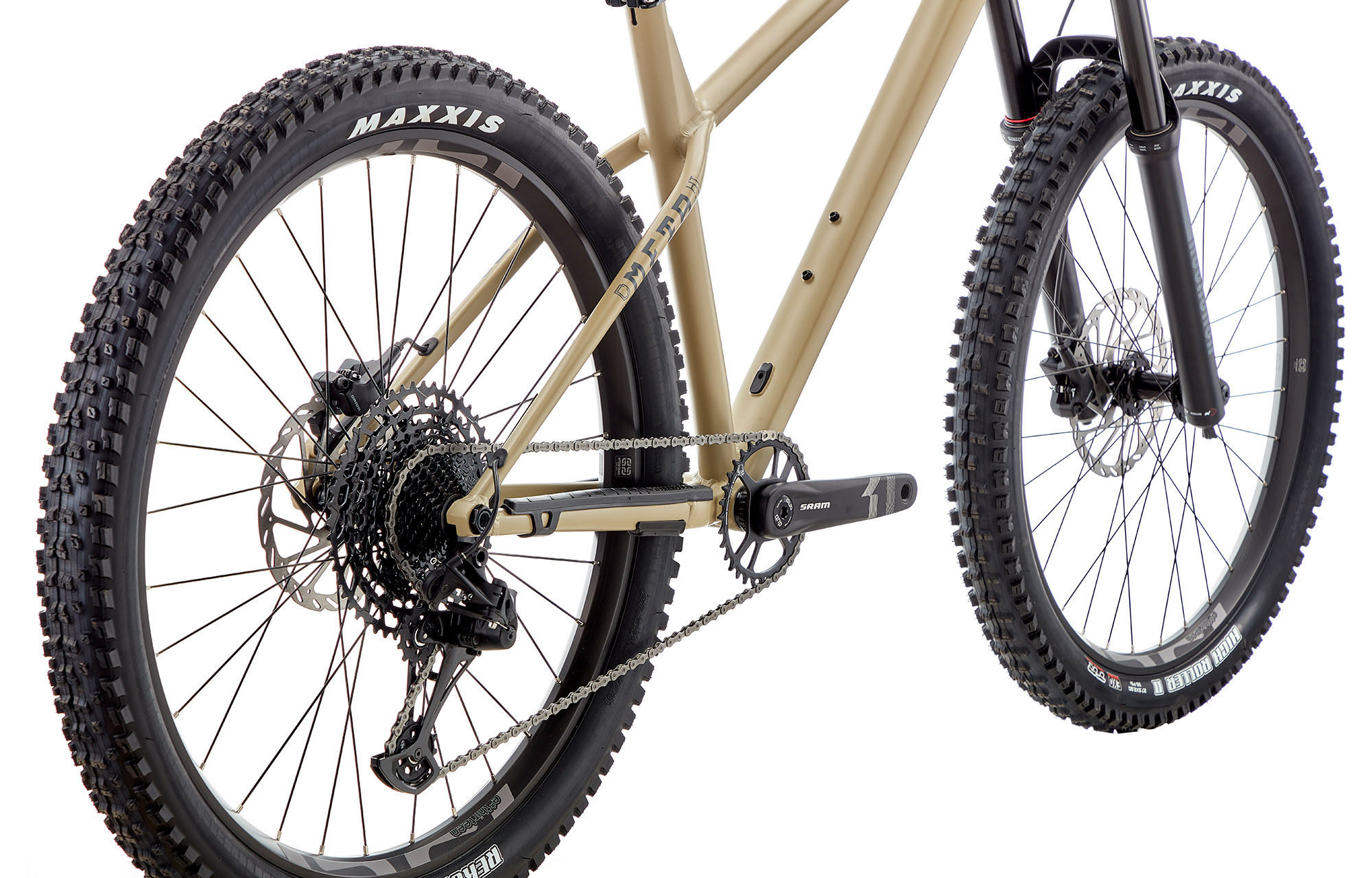

COMMENCAL META HT AM RIDE SAND
The META HT V2 focuses on simplicity. Here, there's no rear suspension - it's all about the fundamentals of riding. Its geometry and frame construction provide maximum sensations. Power transmission is optimized to facilitate pedaling. It accompanies you whatever your mood of the moment.
TRAIL
ALL MOUNTAIN
TRAIL
ALL MOUNTAIN
150mm
150mm
29" / 29"
29 / 27.5"
29" / 29"
29 / 27.5"
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Showroom Delivery
Choose pickup at one of our COMMENCAL NEW ZEALAND showrooms (Christchurch or Queenstown) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
specifications
specifications
Frame
2021 META HT AM - 27.5’’
Alloy 6061, triple butted tubes, T4, T6.
Fork
ROCKSHOX 35 Gold RL, 160 mm travel
27,5'', Motion Control Damper, Debonair, rebound, LSC to lock, Boost (15 x 110 mm), 44 mm offset, 0 Token
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R27
31,8 mm, 780 mm width, 27 mm rise, Alloy 6061
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SRAM LEVEL, hydraulic disc brake, 2 pistons
Rotors: SRAM G2 CleanSweep 200 / 180 mm, 6-bolt
Shifters
SRAM SX Eagle
12 sp
REAR DERAILLEUR
SRAM SX Eagle
12 sp
Bottom bracket
SRAM DUB
Threaded
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
Chain
SRAM NX Eagle
12 sp
Cassette
SRAM PG-1210
12 sp, 11-50t
Rims
E13 LG1 EN Base
27,5'', 32h, 35 mm inner width
Hubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm
Spokes/nipples
SAPIM Leader
J-Bend 2.0 mm, stainless, with Nylok, black
Tyres
Rear: MAXXIS REKON - Front : MAXXIS HIGH ROLLER II
Rear: 27.5x2.80 EXO, Tubeless Ready - Front: 27.5x2.80WT. EXO/2C/Tubeless Ready
Seat post
RIDE ALPHA
31,6 mm, 400 mm on S/M, 450 mm on L/X
Saddle
FIZIK Alpaca X5
145mm width, S-Alloy rail
Weight
14 kg / 30.86 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Sand
Matte finish
Accessories
Chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
552 mm / 562 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BSA 68 mm
ISCG
No
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
-
Bicycle type
All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
2.08 kg / 4,58 lb
-
Recommended/max. fork height
552mm / 562mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 29’’ (L-XL)
29’’ - 27.5’’ (S-M) -
Max. rear tyre dimension - ETRTO
64mm - Ø622mm (L-XL)
64mm - Ø584mm (S-M) -
rear brake mounting type
IS 200mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 250mm / M : 297mm / L-XL : 340mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Recommended/max. chainring teeth
32T / 34T
-
Chain line
52
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
A META HT FOR YOUR CHILD?
A META HT FOR YOUR CHILD?
The META HT KIDS are the children's versions of our META HT. The geometries, components, and wheel sizes are designed as a complete package to help children become experienced riders.
