COMMENCAL RAMONES 24 PURPLE

NZ$ 700.00
id/sku : 22RAMONES24PU
Availability: This Item is currently not available. null
  • Any questions?

    store.nz@commencal.com
    +64 3 925 9075
    from Monday to Friday - 9am to 5:30pm

  • Shipping Options

    Home Delivery
    Showroom Delivery:
    COMMENCAL NEW ZEALAND
    16 Nazareth Avenue
    Middleton
    Christchurch 8024

  • Payment options

    Credit Card
    Paypal
    Wire Transfer

  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • Specs
  • Geometry
- DESCRIPTION -

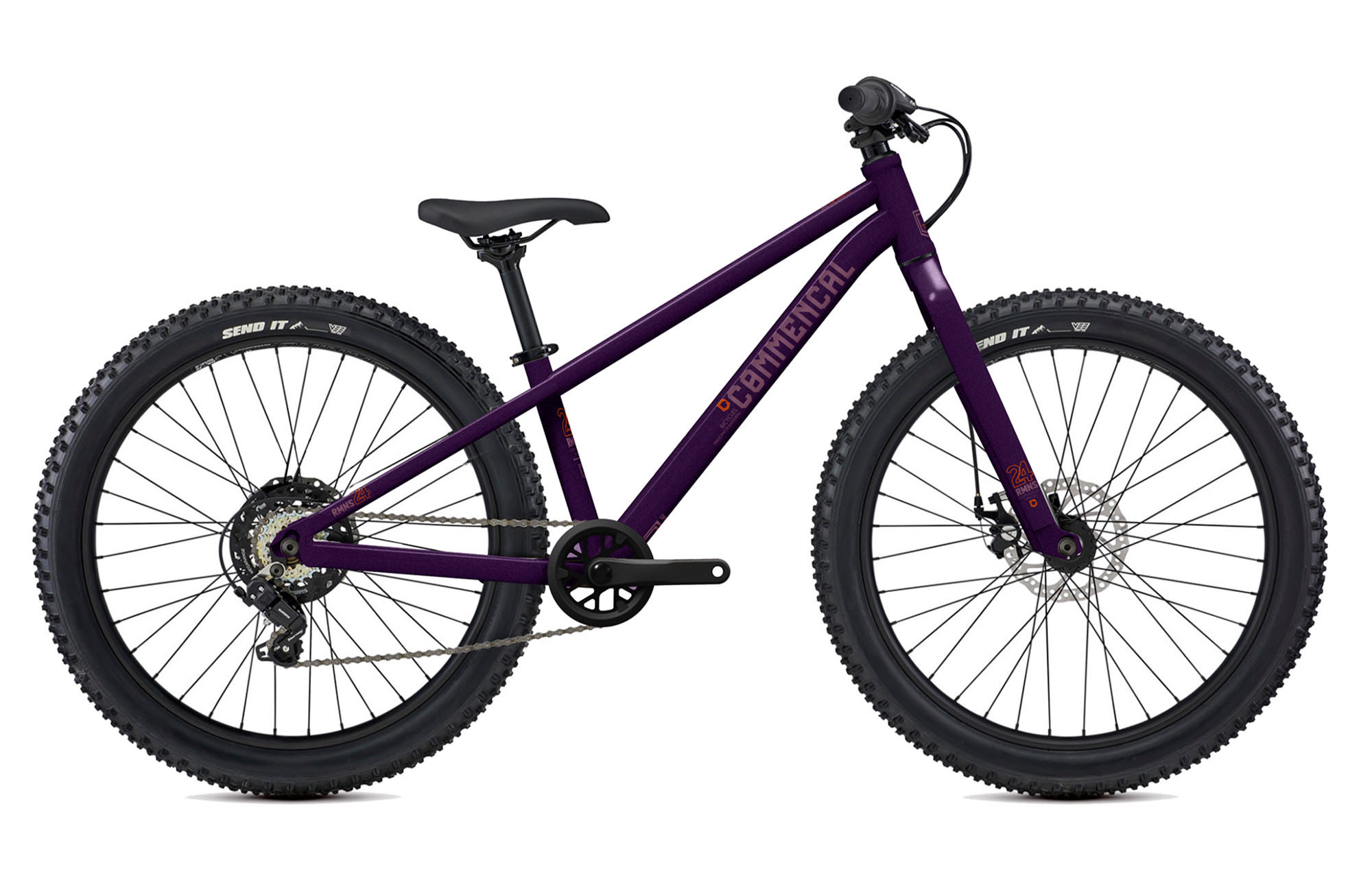

The image of this model is not a photo but in fact a 3D representation. The studio photos with the specs listed below will be available very shortly.

Our bikes that feature 24-inch wheels are suitable for children measuring between 125cm and 150cm. This is it; the serious stuff starts! At this age, the kids are confident on their bikes. They want to start going fast, jumping, choosing the steeper lines, even doing their first races. The choice of vehicle is therefore crucial!

There are four options in the 24-inch category. With three of them, the main difference is suspension or no suspension. All three bikes feature a derailleur, disc brakes and real knobbly tyres like the adults. The fourth option is electrically assisted - a real revolution in this area of the children's MTB market.

RAMONES 24 has a rigid frame and fork. Beyond the intention of keeping the price of the bike down, the absence of suspension allows for better handling, less weight and easier maintenance. In addition, the stiffness is compensated by 2.6 tyres which can be slightly under-inflated to provide even more comfort and grip. In 2022, this platform has been fully reworked and features new extruded tubes, a rigid fork made from Aluminium, new wheels and a new cockpit, all designed for their body shape.

With the META HT 24, the frame is also stiff but there's a telescopic fork with 120mm of travel. For 2022, this fork has been specifically developed by our engineers in collaboration with MANITOU. The main objective is to reduce friction as much as possible so that the travel is used to the max, even on small impacts and for the smallest riders. The comfort and grip are exceptional for a bike of this size.

The META HT 24 POWER is the e-version of the META HT 24. Featuring a Shimano motor with a 500Wh battery, new horizons will open. It's now possible to go on an adventure together, for a day, a weekend or even a proper riding holiday!

Finally, the CLASH 24 is a benchmark for 24-inch full suspension bikes on the market today. In 2022, there are some key changes - new geometry, new looks... The kinematics are also different. Much more than a CLASH with a small frame, the kinematics are exclusively designed for this bike. That means the suspension provides more comfort and grip, regardless of the obstacle and despite its light weight. The 120mm MANITOU fork, RockShox shock and 180mm disc brakes should mean that the young ones can get started on technical and steeper slopes without fear. And if you choose to do another lap, pedalling back up is made easier thanks to 11-speed SRAM gears.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    KIDS MTB 24

  • Frame material

    Al 6061 T6

  • Recommended/max. fork height

    390 mm - 400 mm

  • Headset dimension

    1 1/8

  • Headset type

    ZS44 ZS44

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    IS

  • Rear rotor max. size

    160 mm

  • Seatpost/seat clamp diameter

    27,2 mm - 31,8 mm

  • Bottom bracket type

    BSA 68 mm

  • Rear hub compatibility

    135 x 9 mm

- SPECIFICATIONS -
  • Frame

    2022 RMNS24

    Alloy 6061

  • Fork

    2022 RMNS24

    24", alloy 6061

  • Headset

    NECO H-125

    Semi-integrated

  • Stem

    COMMENCAL Alloy, 40 mm

    40 mm extension, 31.8 mm

  • Handlebar

    RIDE ALPHA

    31.8 mm, 640 mm width, 25 mm rise, Alloy 6061

  • Grips

    COMMENCAL

    115 mm

  • Brakes

    TEKTRO Aries, Mechanical disc brakes, with kids specific - Tektro levers and Jagwire cables

    Rotors: TEKTRO 160 mm, 6-bolt

  • Shifters

    SHIMANO Tourney

    7s, Revo Shifter

  • Rear mech

    SHIMANO Tourney

    7s

  • Bottom bracket

    NECO B-910

    BSA 68 mm, ball retainer

  • Crankset

    COMMENCAL Kids, 140 mm crank arms

    Chainring: 30t, External chainguard

  • Chain

    SHIMANO CN-HG40

    7s

  • Cassette

    SHIMANO Tourney

    7s, 14-34t, with spoke protector

  • Rims

    COMMENCAL 24''

    28h, 30 mm inner width, Alloy 6061

  • Hubs

    Rear: COMMENCAL - Front: COMMENCAL

    Rear: 28h, loose balls, disc ready - Front: 28h, loose balls, disc ready

  • Spokes/nipples

    2.0 mm

    ED black

  • Tyres

    Rear: VEE TIRE CO. CrownGem - Front: VEE TIRE CO. CrownGem

    Rear: 24''x2.6'', MPC Compound, Custom "Send It" patch - Front: 24''x2.6'', MPC Compound, Custom "Send It" patch

  • Seat post

    COMMENCAL

    27,2 mm, Alloy

  • Saddle

    COMMENCAL Kids

    Soft padding

  • Weight

    11 kg / 24.25 lb

    Without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Metallic Purple

    Matte Finish

  • Accessories

    Pedals, bell, lights

- SIZES -
- GEOMETRY -
