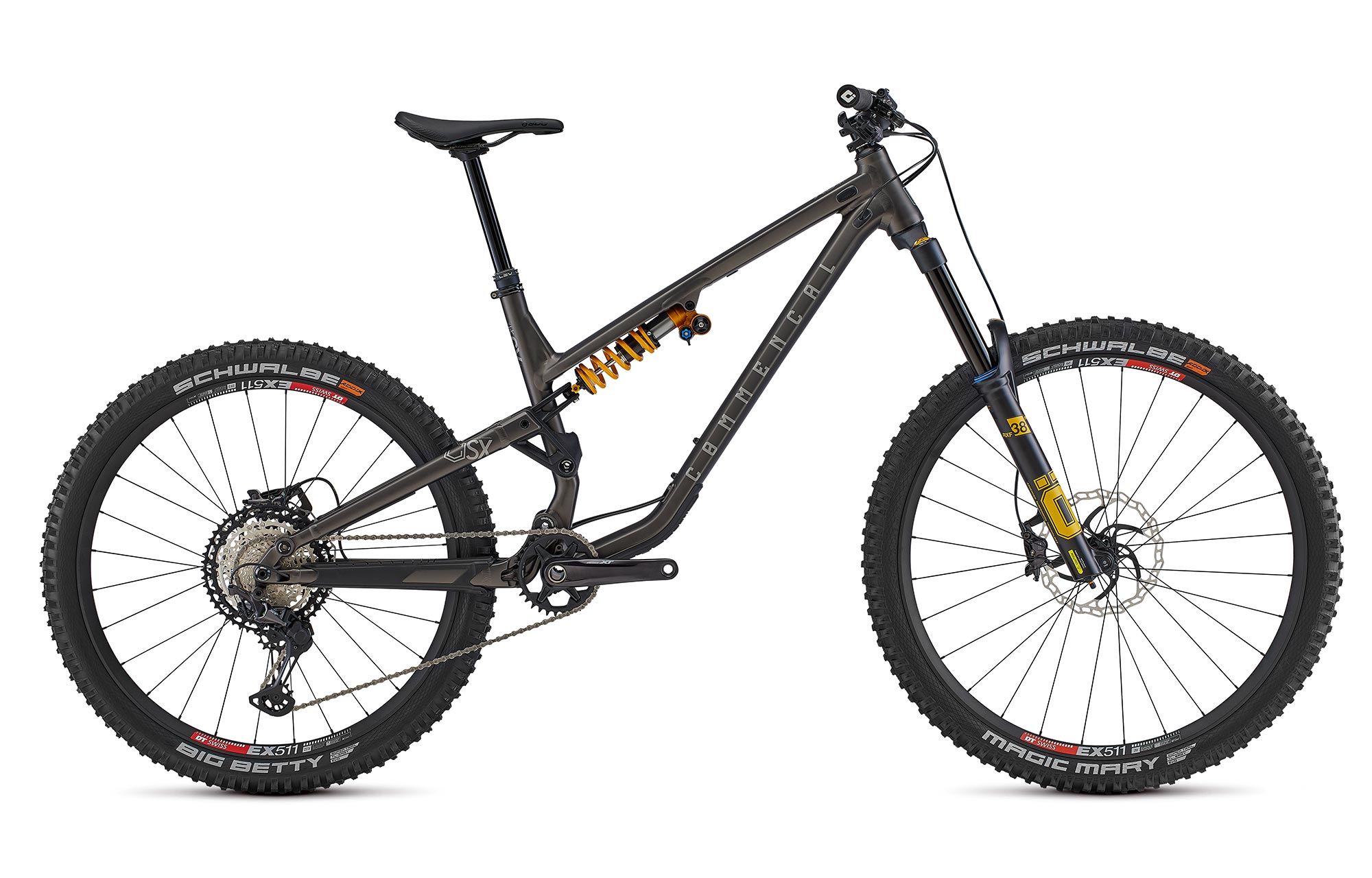

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE

The META SX V4 means commitment. It features a generous wheelbase, reworked frame and kinematics for 29/27.5-inch wheels; perfectly combining stability with liveliness. Equally at home on enduro tracks and in the bike park, it’s the bike for tackling the steepest terrain and sticking the line like no other.

ENDURO
FREERIDE

150-160mm

160mm

29" / 27.5"

LEARN MORE ABOUT THE META SX V4

NZ$ 7,739.13 excl. GST NZ$ 6,521.73 excl. GST -16%

id/sku : 22METAAMOHGRL

SIZE GUIDE

Sold out

In stock

Sold out

Availability: In stock null

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 0

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 1

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 2

CHECK OUT THE META SX V4

The META SX V4 is made to engage and go fast. It features a generous wheelbase, reworked frame and kinematics for its 29/27.5-inch wheels, and perfectly combines stability with liveliness. This is the mountain bike we all need for riding the steepest, most technical terrain and holding lines like no other. Enduro trails or motorway sections in the bike park; it can do it all!

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

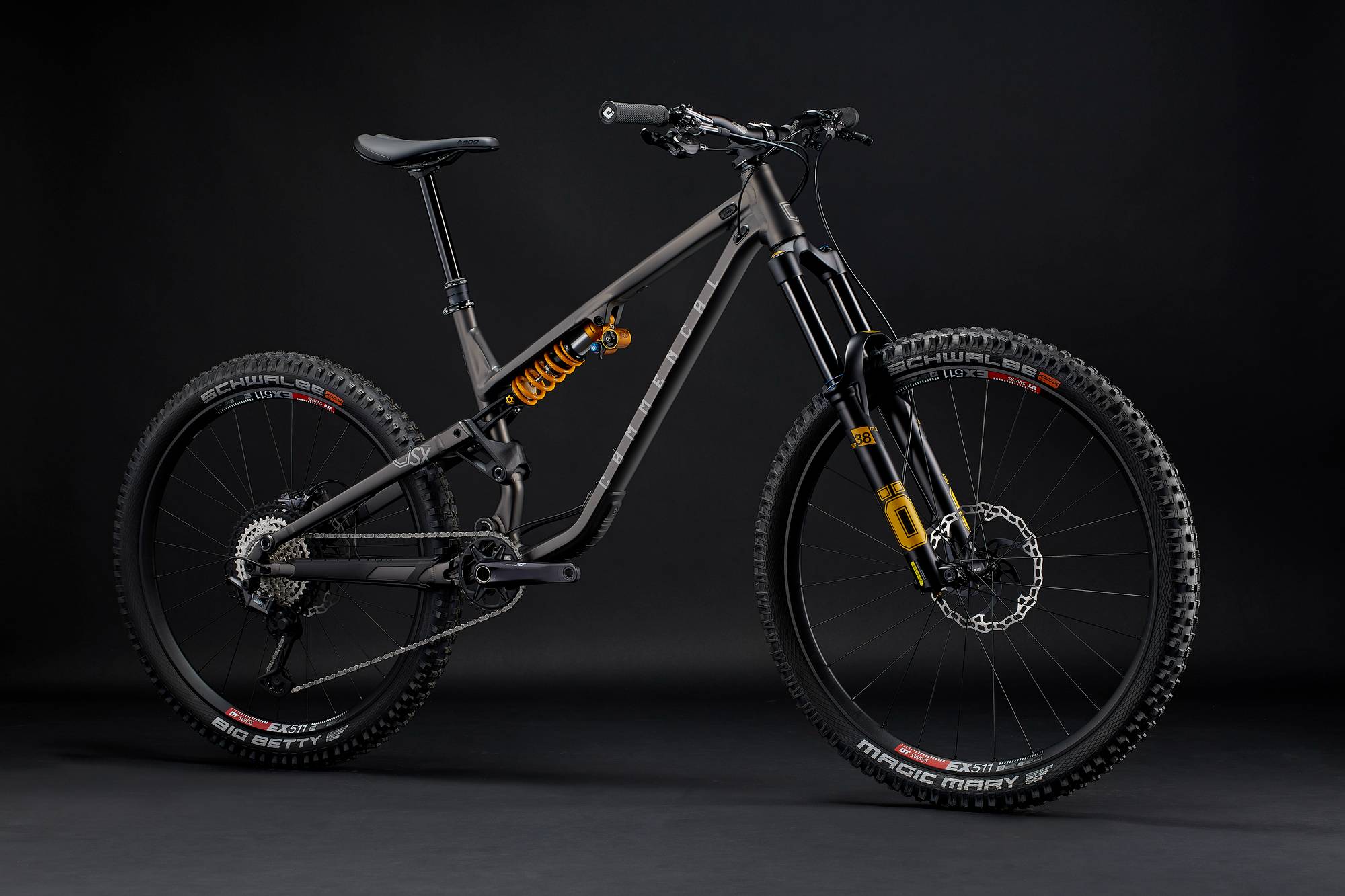

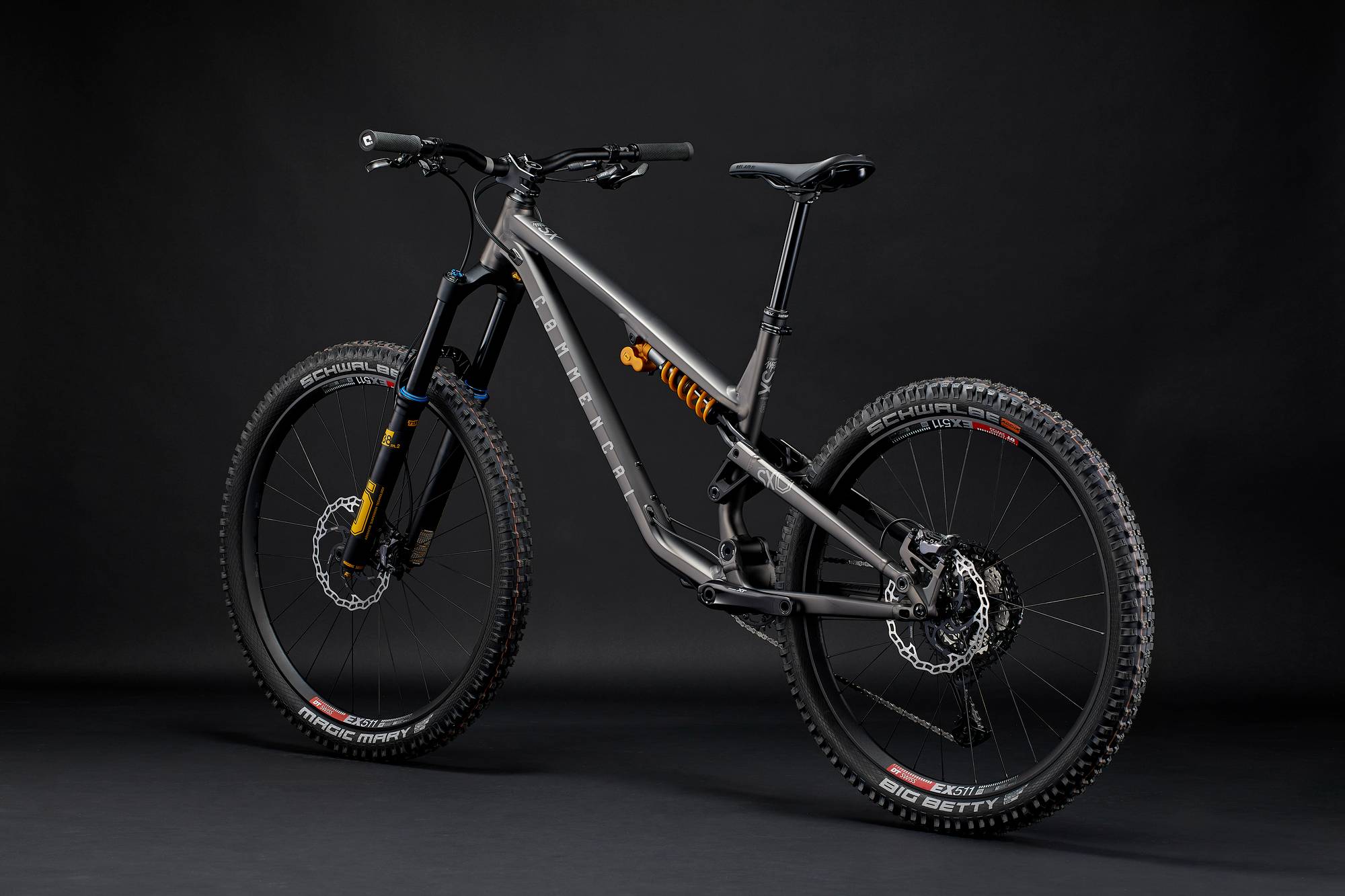

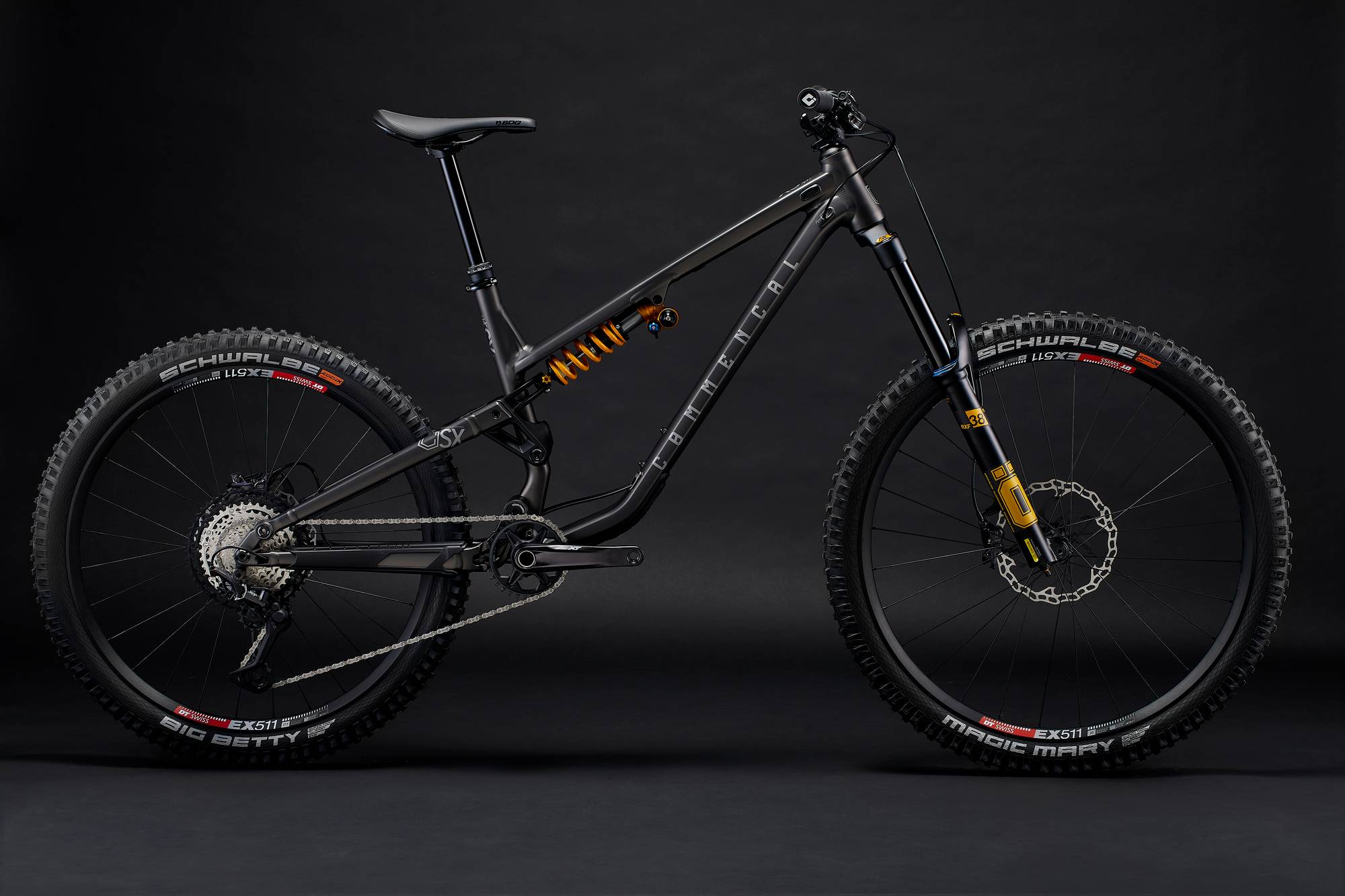

COMMENCAL META SX V4 ÖHLINS EDITION DARK SLATE

The META SX V4 ÖHLINS EDITION brings confidence thanks to the ÖHLINS suspension know-how acquired through the achievement of 400 motorsport world titles... Ride with the best from the Swedish brand.

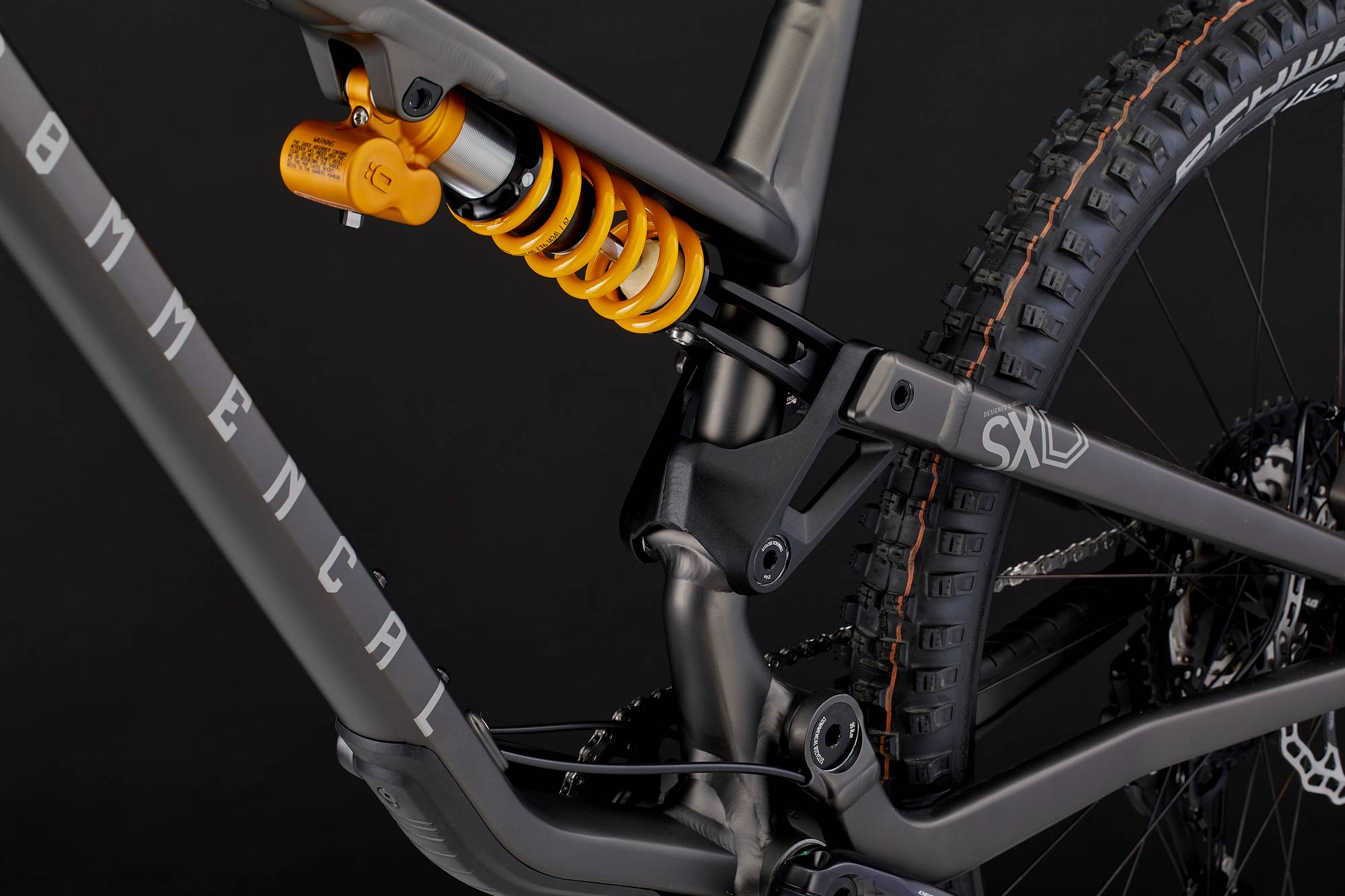

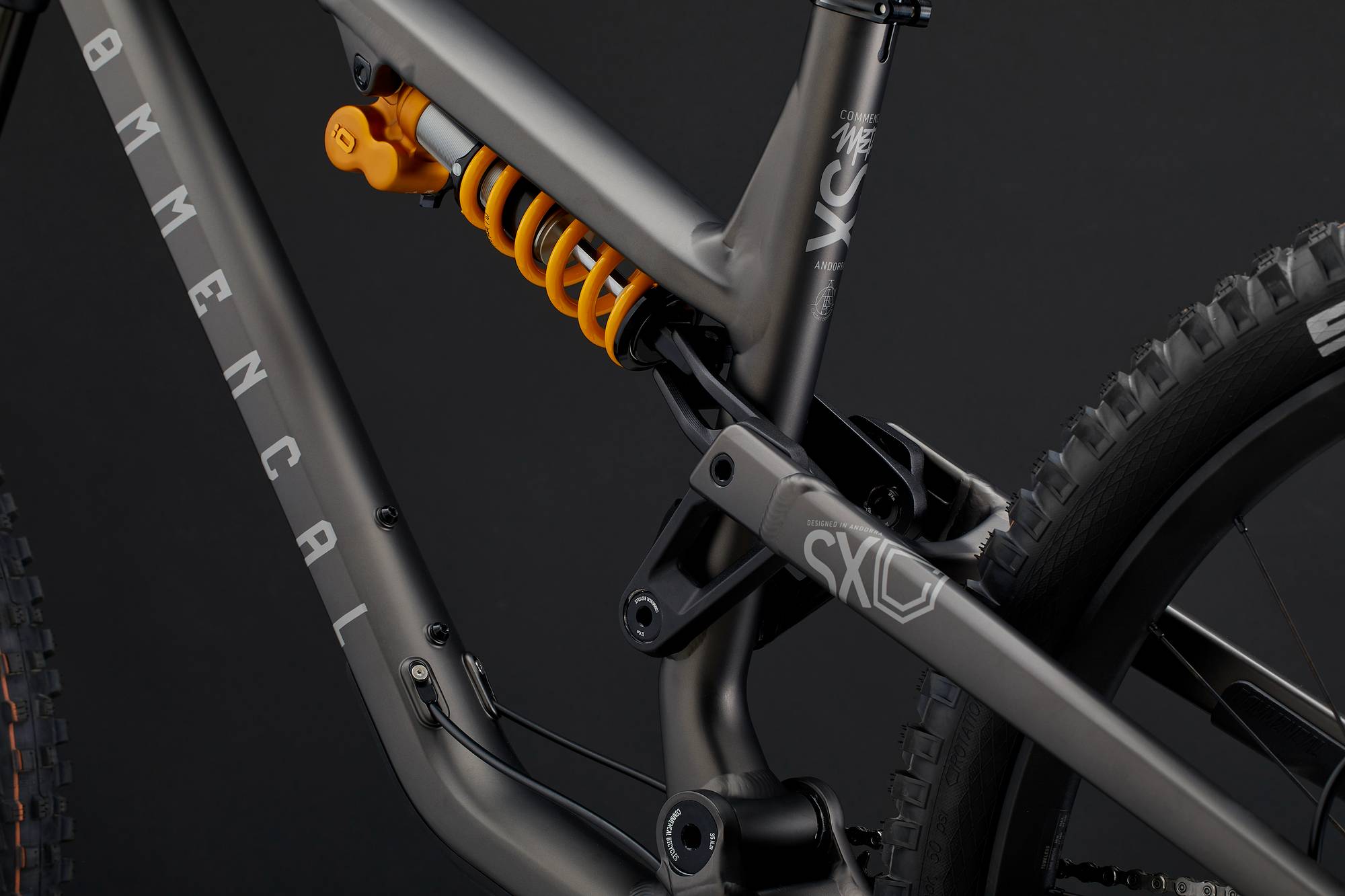

The TTX22 m is certainly one of the best rear shocks for enduro racing. Adopted by many professional riders, it shines thanks to its sensitivity, support, and reliability.

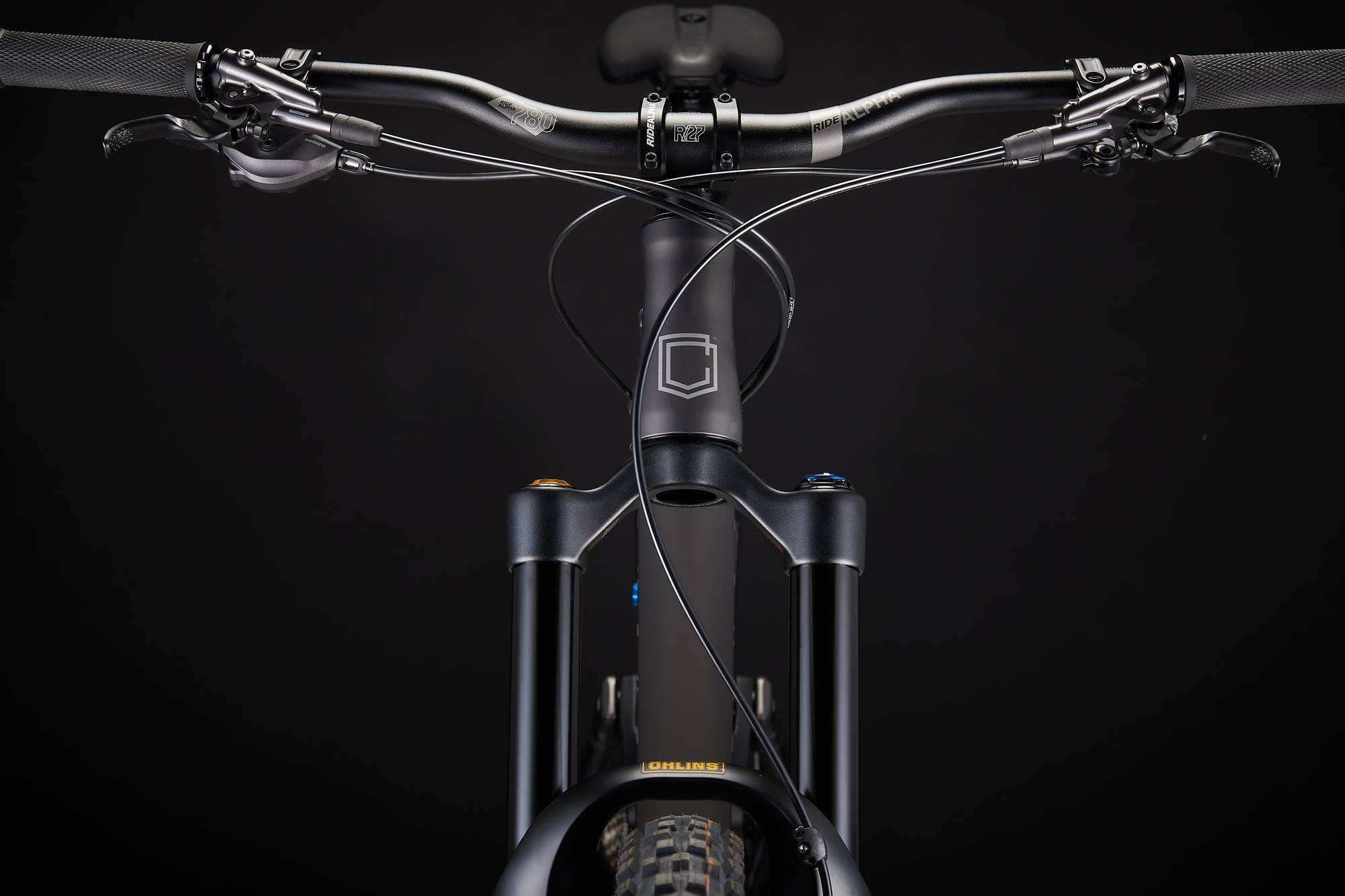

The RXF38 m.2 Air fork offers precision and excellent stability on slopes thanks to an air spring equipped with a specific Ramp Up chamber to adjust progressiveness at the end of the stroke, without forgetting its three-way setting TTX hydraulic cartridge.

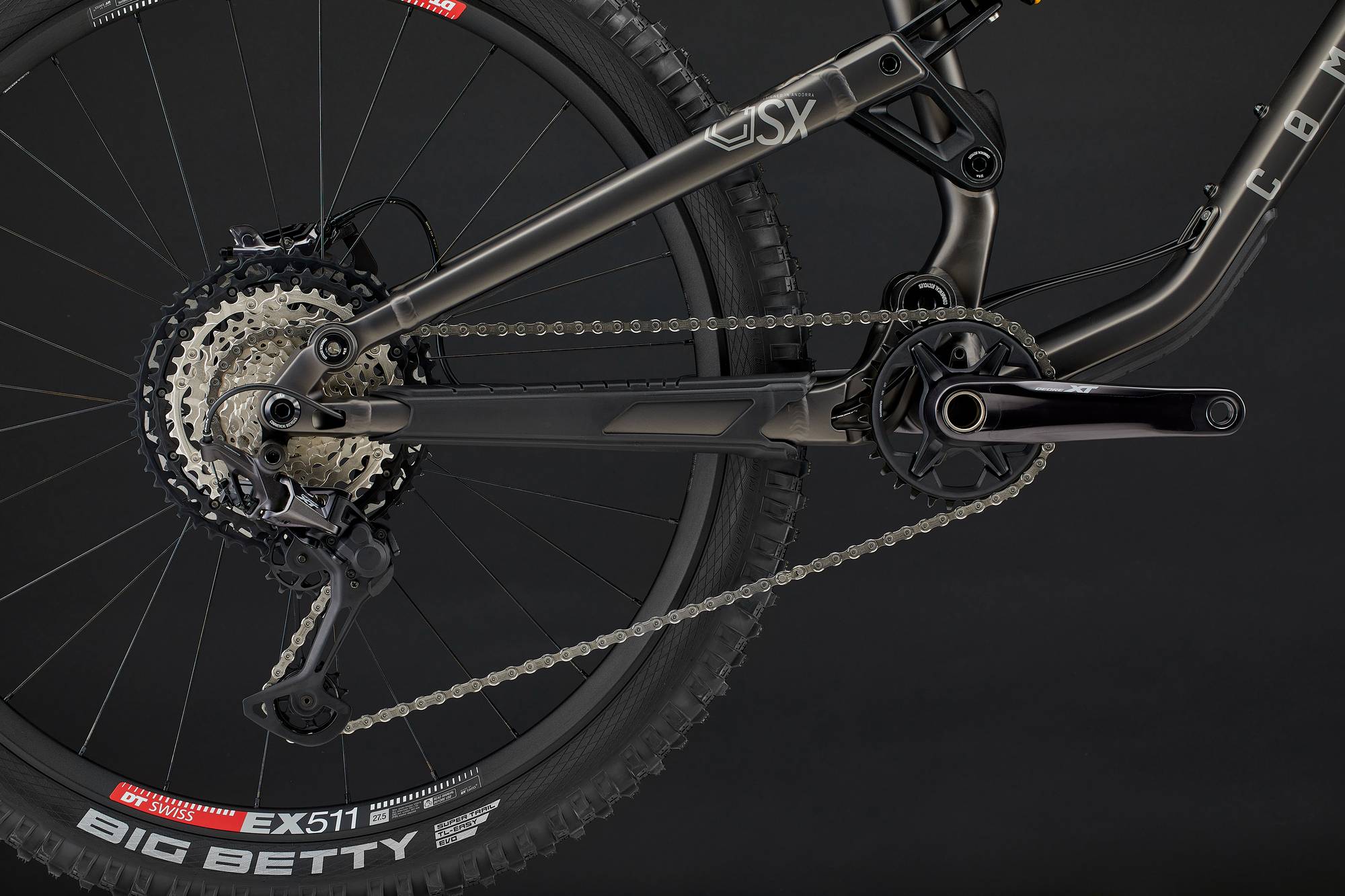

SHIMANO manages the gear changes and braking with the Deore XT groupset. 12-speed drivetrain, 4-piston calipers and 203mm discs: for more than 40 years it has been a reference point in the market.

DT SWISS custom wheels are specifically designed for this bike. They consist of one of the best enduro rims on the market, the EX 511, combined with reliable and solid 350 hubs.

It is the combo of SCHWALBE Magic Mary and Big Betty tyres in Addix Soft rubber that will ensure the grip.

*Please note that bike specs are subject to change without prior notice.

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 3

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 4

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 5

COMMENCAL META SX V4 OHLINS EDITION DARK SLATE image cover number large 6

specifications

Frame
META SX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Shock
OHLINS TTX22 M.2 Coil
230 x 62.5 mm, HSC, LSC, rebound, climb mode. Spring rates: 343lbs on S, 388lbs on M, 434lbs on L, 480lbs on XL
Fork
OHLINS RXF38 m.2 Air, 170 mm travel
29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset
Headset
ACROS ZS44/ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm

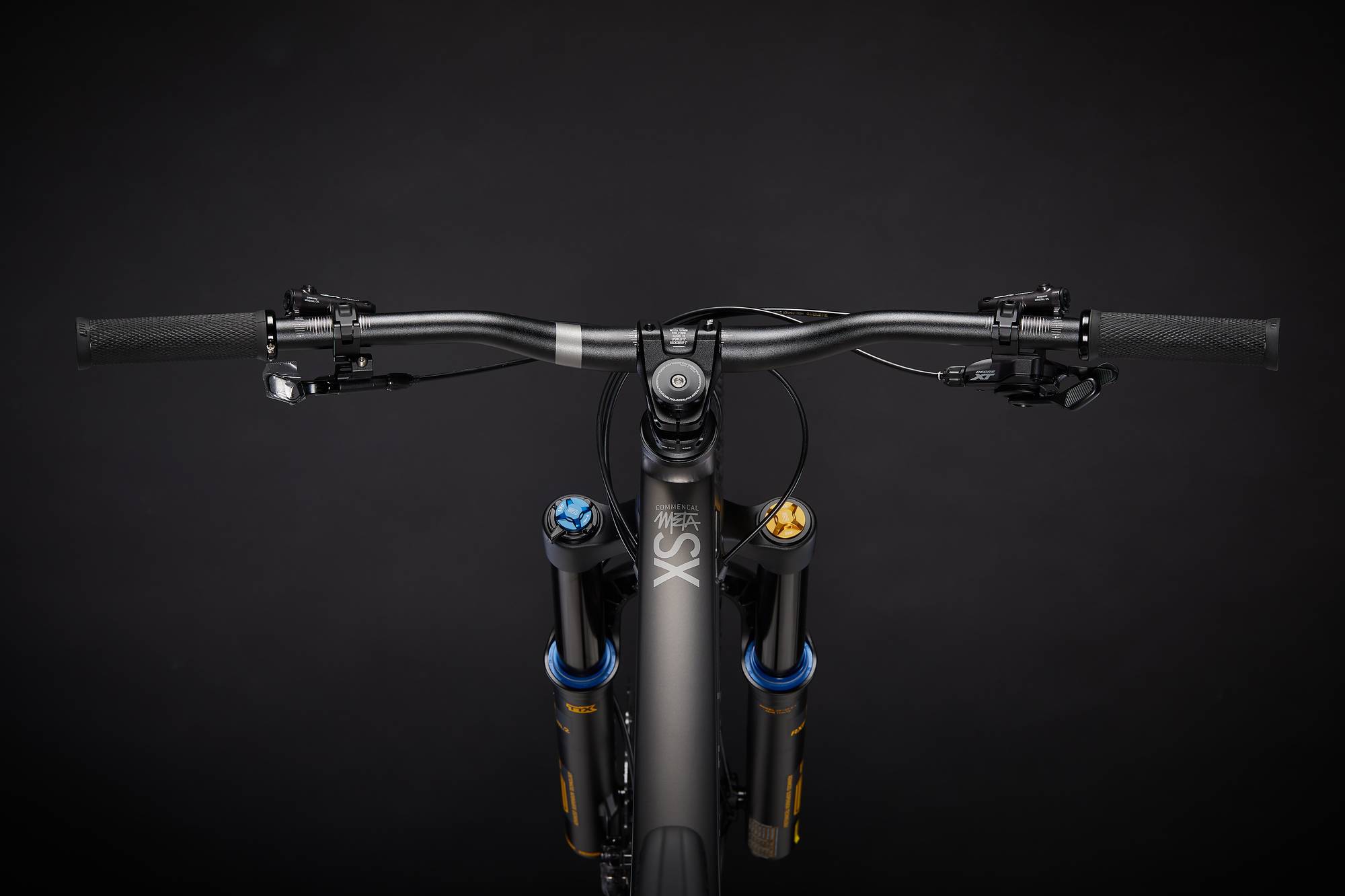

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: Delivered with Shimano or Galfer discs wave 203 mm, 6 holes
Shifters
SHIMANO XT
12s
REAR DERAILLEUR
SHIMANO XT
12s
Bottom bracket
SHIMANO BBMT800
Pressfit
Crankset
SHIMANO XT, 170 mm crank arms, Boost
Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
Chain
SHIMANO XT
12s
Cassette
SHIMANO XT
12s, 10-51t
Rims
Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29'
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Hubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Spokes/nipples
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy
Seat post
KS Lev Integra
34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3 Atmos
140 mm width, Lux-Alloy Rails
Weight
15,9 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Dark Slate
Matte Finish
Accessories
Down tube protector, chainstay protector, seatstay protector

Bike specifications are subject to change without notice.

Technical informations

Bicycle type
ENDURO 27''/29''
Frame material
AL 6066 T4, T6
Frame weight
3,9 kg / 8.59 lb
Rear travel
160 mm
Shock length/stroke
230 x 62,5 mm
Piggy back shock compatible
Yes
Shock bushings
Nothing on body - 20 x 10 mm on shaft
Recommended/max. fork height
586 mm / 596 mm
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27.5’' : 68-584 mm - 29'' : 65-622 mm
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
220 mm
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
BB92
ISCG
ISCG 05
Rear hub compatibility
L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

Bicycle type

Enduro / Freeride
Frame material

AL 6066 T4, T6
Frame weight

3,9 kg / 8.59 lb
Rear travel

160mm
Shock length/stroke

230x62.5mm
Recommended SAG

26-30% / 16-19mm
Piggy back shock compatible

Yes
Shock bushings

Included - 20x10mm
Recommended/max. fork height

586mm / 596mm
Headset type

ZS44 / ZS56
ICR compatible

No
Wheels size

29’’ - 27.5’’
Max. rear tyre dimension - ETRTO

65mm - Ø584mm
rear brake mounting type

Postmount 200mm
Rear brake rotor max. size

220mm
Seatpost/seat clamp diameter

34,9mm / 38,5mm
Seatpost insertion max.

S : 228mm / M : 268mm / L : 288mm / XL : 308mm
Bottom bracket type

Press Fit BB 92mm
Chain guide

ISCG 05
Chain line

55
Rear Hub dimension

148x12mm
Rear Axle dimension

Maxle standard, 180mm, M12, P1.75mm
UDH hanger

No
shock anchor adjustment

2 positions

WHICH META V4 TO CHOOSE?

Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.

Check out the differences

Geometry

SIZE

SLow / High

MLow / High

LLow / High

XLLow / High

1 - SEAT TUBE LENGTH

380

420

440

460

2 - SEAT TUBE ANGLE

78,6° / 79°

3 - HEAD TUBE ANGLE

64,5° / 65°

4 - HEAD TUBE LENGTH

110

115

120

125

5 - WHEELBASE

1203 / 1202

1230 / 1229

1257 / 1256

1284 / 1283

6 - TOP TUBE LENGTH

566 / 565

592 / 591

618 / 617

644 / 643

7 - CHAIN STAY LENGTH

435 / 434

8 - BOTTOM BRACKET HEIGHT

-33 / -29

9 - FORK LENGTH

586

10 - REACH

440 / 444

465 / 469

490 / 494

515 / 519

11 - STACK

626 / 623

630 / 627

634 / 631

638 / 635

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
