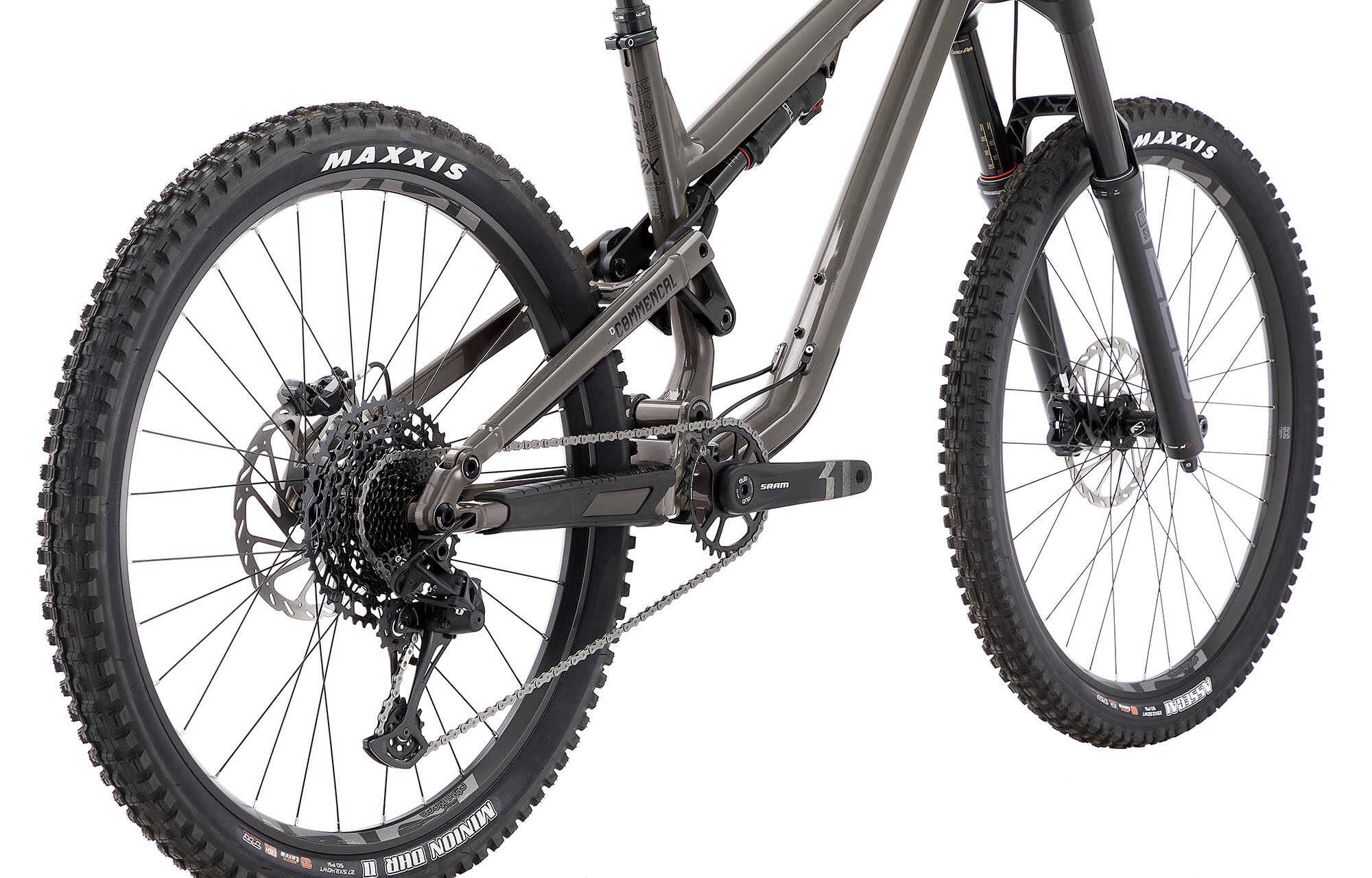

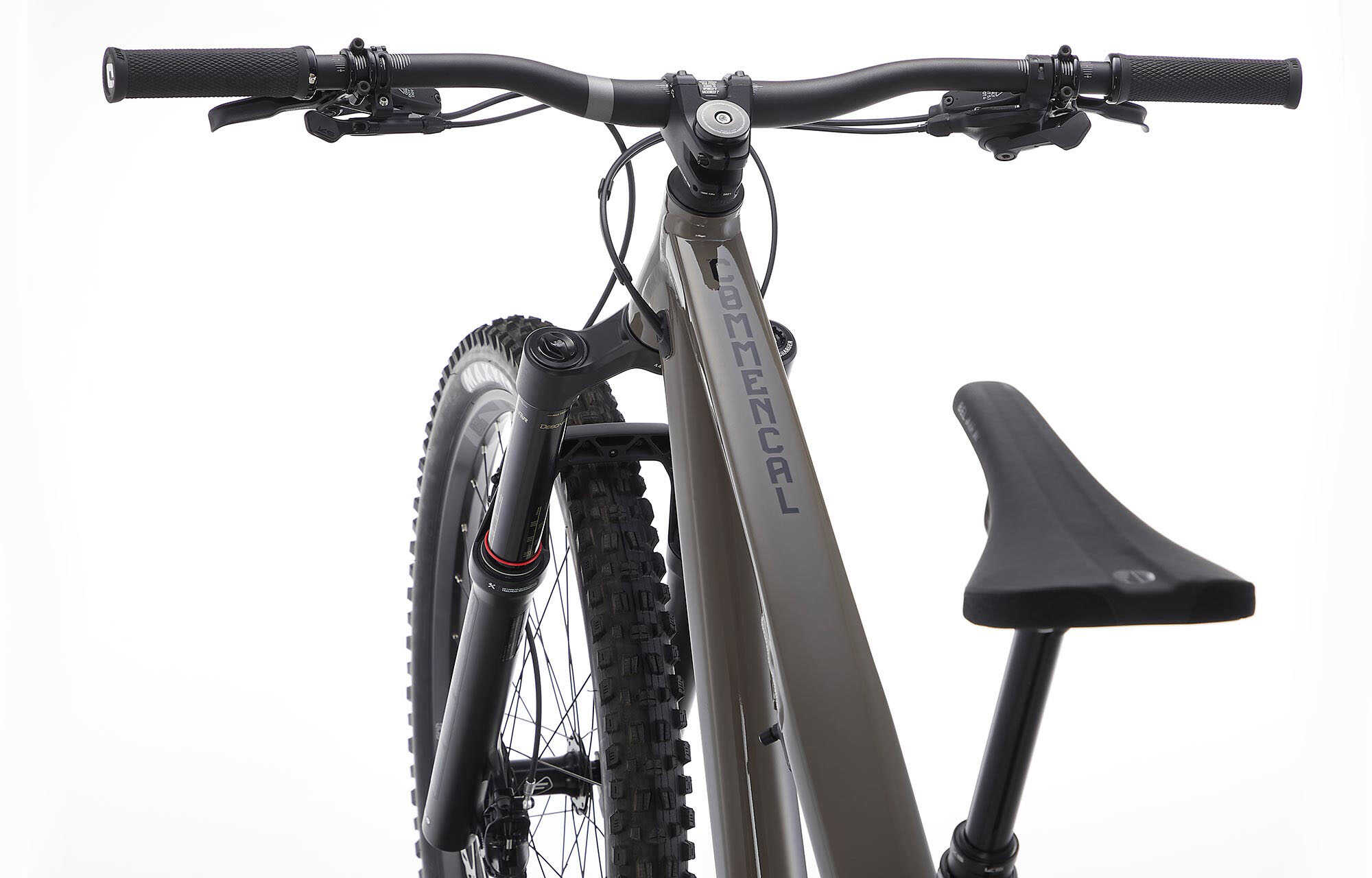

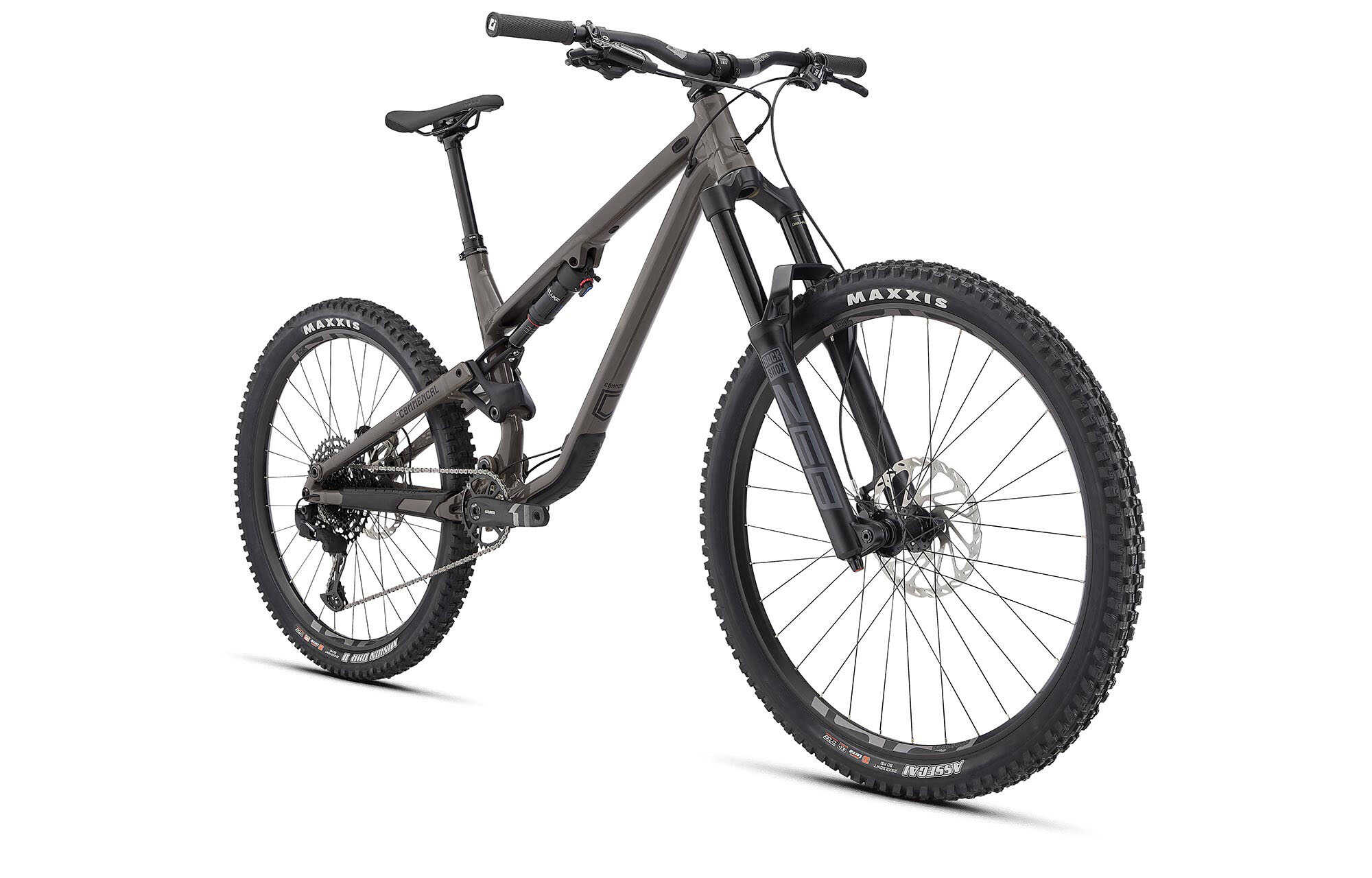

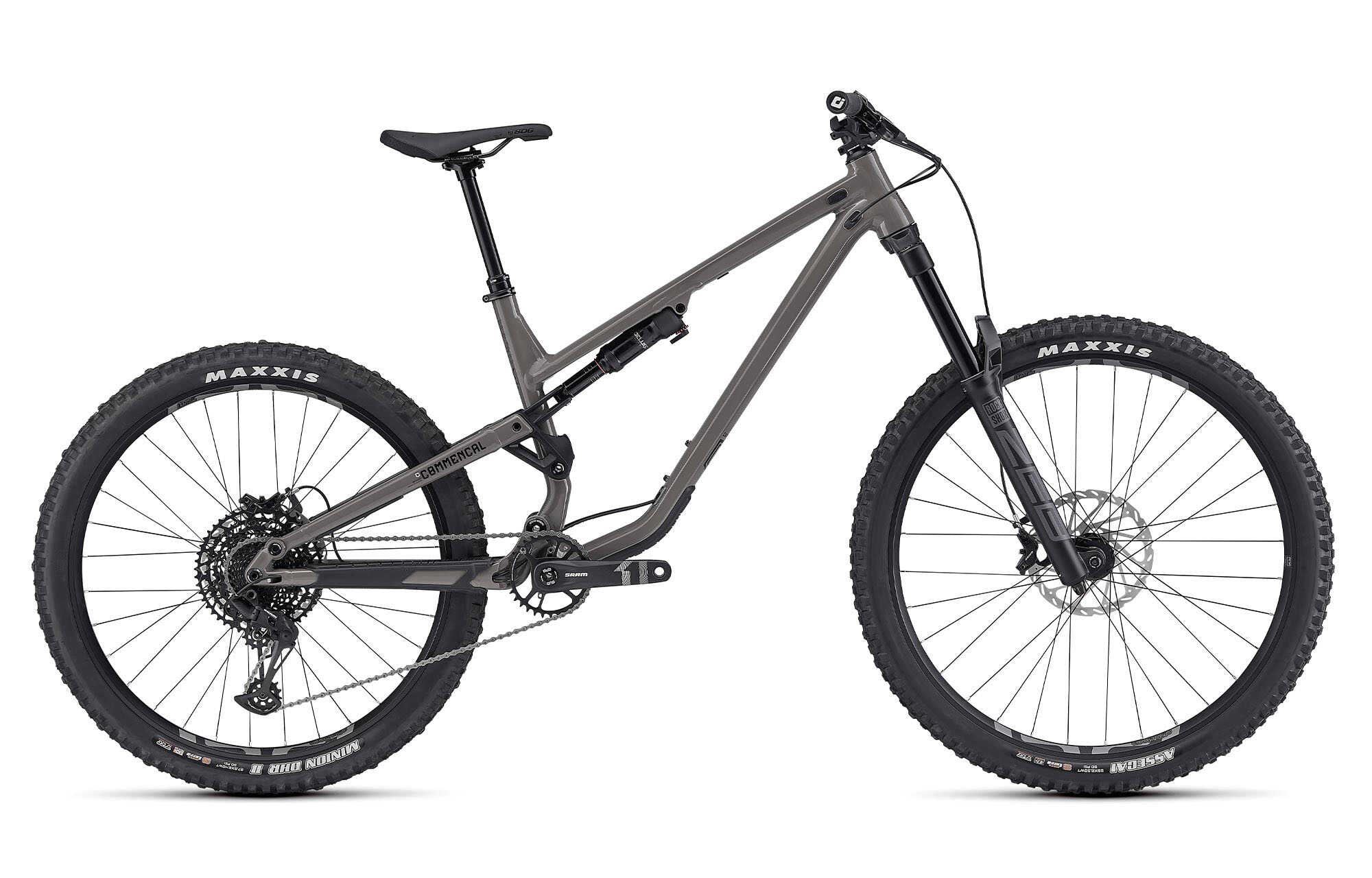

COMMENCAL META SX V4 RIDE DIRT

Price reduced from NZ$ 4,782.60 excl. GST to NZ$ 3,652.17 excl. GST -24%
id/sku : 22METAAMRI
Availability: Select the model for availability null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META SX V4

The META SX V4 is made to engage and go fast. It features a generous wheelbase, reworked frame and kinematics for its 29/27.5-inch wheels, and perfectly combines stability with liveliness. This is the mountain bike we all need for riding the steepest, most technical terrain and holding lines like no other. Enduro trails or motorway sections in the bike park; it can do it all!

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?

META SX V4 RIDE DIRT

The META SX V4 RIDE relies on simplicity to bring maximum riding joy.

The ZEB Ultimate fork features 38mm stanchions with optimized rigidity for performance, a Charger 3 hydraulic cartridge with simple and precise adjustments, a DebonAir+ air spring combining sensitivity and support, and last but not least, the ButterCups cylinders which limit fatigue in the hands.

The rear shock is a Deluxe Select+ with settings adapted to the kinematics of the frame. Settings can be fine-tuned by adjusting the negative and positive air volumes. End of the travel is better managed, and a dial allows locking out the compression to make pedalling easier. The wide rebound range also ensures optimal control for all sizes.

The SRAM SX Eagle 11-50t ratio 12-speed drivetrain will help overcome the most difficult climbs and obstacles.

Reliable and with a clean feel, the 4-piston SRAM Guide T brakes combined with 200mm discs are a guarantee of confidence when facing the steeps.

The E13 LG1 DH rims and their wide reinforced profile are ideal for aggressive riders and perfect for the META SX program.

To offer maximum grip and performance we have a MAXXIS Assegai and Minion DHRII tyre combo with 3C rubber.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO 27''/29''

  • Frame material

    AL-6066 T4, T6

  • Frame weight

    3,9 kg / 8.59 lb

  • Rear travel

    160 mm

  • Shock length/stroke

    230 x 62,5 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 X 10 mm on shaft

  • Recommended/max. fork height

    586 mm / 596 mm

  • Headset dimension

    TAPERED 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27.5’' : 68-584 mm - 29'' : 65-622 mm

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META SX, 160 mm travel
    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select +
    230 x 62.5 mm, rebound, threshold adjustment

  • Fork

    ROCKSHOX Zeb, 170 mm travel
    29", Charger damper, Debonair, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible
    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    Rear: E13 LG1 DH Base 27.5'' - Front: E13 LG1 DH Base 29''
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM RACE
    J-Bend 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless Ready

  • Seat post

    KS Rage-I
    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel Rails

  • Weight

    16 kg / 35.27 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dirt
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.
